SAXSdb — 2gy5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiopoietin-1 receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 23–445	Fragment：Ligand-binding domain (residues 23-445)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 4 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；2.2M Ammonium Sulfate, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2GY5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FVR TIE2 KINASE DOMAIN Deposited 2000-09-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 808–1124（317 aa） Fragment：KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；2.5% PEG12000, 2.5% glycerol, 100mM Hepes, 10mM spermidine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K	Resolution 2.20 Å R-free 0.225
1FVR TIE2 KINASE DOMAIN Deposited 2000-09-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 808–1124（317 aa） Fragment：KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；2.5% PEG12000, 2.5% glycerol, 100mM Hepes, 10mM spermidine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K	Resolution 2.20 Å R-free 0.225
2GY7 Angiopoietin-2/Tie2 Complex Crystal Structure Deposited 2006-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–445（423 aa） Fragment：Tie2 Ligand-binding domain (residues 23-445)	Not recorded	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；2.2 M Ammonium Sulfate, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.70 Å R-free 0.317
2OO8 Synthesis, Structural Analysis, and SAR Studies of Triazine Derivatives as Potent, Selective Tie-2 Inhibitors Deposited 2007-01-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 808–1124（317 aa） Fragment：Kinase domain	Not recorded	RAJ N-{3-[3-(DIMETHYLAMINO)PROPYL]-5-(TRIFLUOROMETHYL)PHENYL}-4-METHYL-3-[(3-PYRIMIDIN-4-YLPYRIDIN-2-YL)AMINO]BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；14-18 % (w/v) PEG 3350, and 0.2 M tri-Potassium Citrate (pH 6.5-7.5), and 2% (v/v) isopropanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.279
2OSC Synthesis, Structural Analysis, and SAR Studies of Triazine Derivatives as Potent, Selective Tie-2 Inhibitors Deposited 2007-02-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 808–1124（317 aa） Fragment：Tie-2 Kinase domain	Not recorded	MUH N-{4-METHYL-3-[(3-PYRIMIDIN-4-YLPYRIDIN-2-YL)AMINO]PHENYL}-3-(TRIFLUOROMETHYL)BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；14-18 % (w/v) PEG 3350, and 0.2 M tri-Potassium Citrate (pH 6.5-7.5), and 2% (v/v) isopropanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.306
2P4I Evolution of a highly Selective and Potent 2-(Pyridin-2-yl)-1,3,5-triazine Tie-2 Kinase Inhibitor Deposited 2007-03-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 808–1124（317 aa）	Not recorded	MR9 4-METHYL-3-({3-[2-(METHYLAMINO)PYRIMIDIN-4-YL]PYRIDIN-2-YL}OXY)-N-[2-MORPHOLIN-4-YL-5-(TRIFLUOROMETHYL)PHENYL]BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；14-18% PEG 3350, 0.2M tri-Potassium Citrate (pH 6.5-7.5) and 2% isopropanol., pH 7.0, VAPOR DIFFUSION, temperature 298K	Resolution 2.50 Å R-free 0.303
2P4I Evolution of a highly Selective and Potent 2-(Pyridin-2-yl)-1,3,5-triazine Tie-2 Kinase Inhibitor Deposited 2007-03-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 808–1124（317 aa）	Not recorded	MR9 4-METHYL-3-({3-[2-(METHYLAMINO)PYRIMIDIN-4-YL]PYRIDIN-2-YL}OXY)-N-[2-MORPHOLIN-4-YL-5-(TRIFLUOROMETHYL)PHENYL]BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；14-18% PEG 3350, 0.2M tri-Potassium Citrate (pH 6.5-7.5) and 2% isopropanol., pH 7.0, VAPOR DIFFUSION, temperature 298K	Resolution 2.50 Å R-free 0.303
2WQB Structure of the Tie2 kinase domain in complex with a thiazolopyrimidine inhibitor Deposited 2009-08-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 802–1124（323 aa） Fragment：KINASE DOMAIN, RESIDUES 802-1124	Mutation：YES	QQ1 2-[3-(CYCLOHEXYLMETHYL)-5-PHENYL-IMIDAZOL-4-YL]-[1,3]THIAZOLO[4,5-E]PYRIMIDIN-7-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；5 MG/ML PROTEIN, 5% (W/V) PEG6000, 5% (V/V) MPD, 100MM MOPS PH7.5, 293K	Resolution 2.95 Å R-free 0.259
3BEA cFMS tyrosine kinase (tie2 KID) in complex with a pyrimidinopyridone inhibitor Deposited 2007-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 917–935（19 aa）	Mutation：A695L	SO4 SULFATE ION × 3 IXH 8-(2,3-dihydro-1H-inden-5-yl)-2-({4-[(3R,5S)-3,5-dimethylpiperazin-1-yl]phenyl}amino)-5-oxo-5,8-dihydropyrido[2,3-d]pyrimidine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.02 Å R-free 0.230
3L8P Crystal structure of cytoplasmic kinase domain of Tie2 complexed with inhibitor CEP11207 Deposited 2010-01-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 808–1124（317 aa） Fragment：Tie2 fragment 808-1124	Not recorded	0CE 2-methyl-11-(1-methylethyl)-8-[(2S)-tetrahydro-2H-pyran-2-yl]-2,11,12,13-tetrahydro-4H-indazolo[5,4-a]pyrrolo[3,4-c]carbazol-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；8% PEG 3350, 0.2M Tri-Ammonium Citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.40 Å R-free 0.265
4X3J Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 802–1122（321 aa） Fragment：Kinase domain, UNP residues 802-1122	Mutation：D964N	3WR 1-[4-(4-amino-5-oxopyrido[2,3-d]pyrimidin-8(5H)-yl)phenyl]-3-[2-fluoro-5-(trifluoromethyl)phenyl]urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Tris/HCl pH 7.0 0.05 M NaCl 0.03 M Lithiumsulfat	Resolution 2.50 Å R-free 0.293
5MYA Homodimerization of Tie2 Fibronectin-like domains 1-3 in space group C2 Deposited 2017-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 443–742（300 aa） Chain B 443–742（300 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Tris buffer at pH 7.0 - 8.5 and 14-20% PEG 3350 (w/v)	Resolution 2.90 Å R-free 0.277
5MYB Homodimerization of Tie2 Fibronectin-like domains 2 and 3 in space group P21 Deposited 2017-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 443–742（300 aa） Chain B 443–742（300 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.1 M Tris buffer at pH 7.0 - 8.5 and 14-20% PEG 3350 (w/v)	Resolution 2.60 Å R-free 0.278
5UTK Crystal structure of the membrane proximal three fibronectin type III (FNIII) domains of Tie2 (Tie2[FNIIIa-c]) Deposited 2017-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 399–698（300 aa） Fragment：unp residues 399-698 Chain B 399–698（300 aa） Fragment：unp residues 399-698	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；25-40% glycerol, 2.5-15% PEG 3K, 100 mM sodium acetate, 100 mM sodium phosphate, pH 4.5	Resolution 2.50 Å R-free 0.247
6MWE CRYSTAL STRUCTURE OF TIE2 IN COMPLEX WITH DECIPERA COMPOUND DP1919 Deposited 2018-10-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 808–1124（317 aa）	Not recorded	SO4 SULFATE ION × 2 919 4-[4-({[3-tert-butyl-1-(quinolin-6-yl)-1H-pyrazol-5-yl]carbamoyl}amino)-3-fluorophenoxy]-N-methylpyridine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；290 K；JCSG+ screen e4: 1.26M ammonium sulphate: 200mM lithium sulphate, 100mM Tris pH 8.5: cryo: 25% EG in 3 steps	Resolution 2.05 Å R-free 0.166
6MWE CRYSTAL STRUCTURE OF TIE2 IN COMPLEX WITH DECIPERA COMPOUND DP1919 Deposited 2018-10-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 808–1124（317 aa）	Not recorded	SO4 SULFATE ION × 2 919 4-[4-({[3-tert-butyl-1-(quinolin-6-yl)-1H-pyrazol-5-yl]carbamoyl}amino)-3-fluorophenoxy]-N-methylpyridine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；290 K；JCSG+ screen e4: 1.26M ammonium sulphate: 200mM lithium sulphate, 100mM Tris pH 8.5: cryo: 25% EG in 3 steps	Resolution 2.05 Å R-free 0.166
7E72 Crystal structure of Tie2-agonistic antibody in complex with human Tie2 Fn2-3 Deposited 2021-02-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 541–735（195 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 22	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292.15 K；100 mM Bis-Tris propane pH 8.5, 110 mM potassium dihydrogen phosphate, 15% (w/v) polyethylene glycol 3350	Resolution 2.09 Å R-free 0.233
7E72 Crystal structure of Tie2-agonistic antibody in complex with human Tie2 Fn2-3 Deposited 2021-02-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 541–735（195 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292.15 K；100 mM Bis-Tris propane pH 8.5, 110 mM potassium dihydrogen phosphate, 15% (w/v) polyethylene glycol 3350	Resolution 2.09 Å R-free 0.233
9LV4 Cryo-EM Structure of Human Tie2/minibinder tw1102_4 helices Complex Deposited 2025-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–452（430 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging	Resolution 2.67 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TIE2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–423； UniProt 23–445

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gy5
Deposition date deposition_date	2006-05-09
Structure title title	Tie2 Ligand-Binding Domain Crystal Structure
Keywords keywords	ligand-binding domain, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.35 Å
Radius of gyration Rg (electron density) rg_electron	23.84 Å
Forward intensity I(0) i0	43723300.00
Molecular weight molecular_weight	48580.0 kDa
Excluded volume excluded_volume	59820 Å³
Envelope volume envelope_volume	74369 Å³
Hydration-shell volume shell_volume	26488 Å³
Envelope diameter envelope_diameter	92.4 Å
Shell Rg shell_rg	30.48 Å
Envelope Rg envelope_rg	24.07 Å
Shape Rg shape_rg	23.89 Å
Total Rg total_rg	24.47 Å
Total atoms total_atoms	3383
Residues n_residues	423
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	89.0 Å
Rg (real space) rg_real	24.34 Å
Rg uncertainty (real space) rg_real_error	0.67 Å
I(0) (real space) i0_real	4.3720e+07
I(0) uncertainty (real space) i0_real_error	6.2570e+05
Rg (reciprocal space) rg_reciprocal	24.35 Å
I(0) (reciprocal space) i0_reciprocal	43720000.0000
Solution quality estimate total_estimate	0.8365
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.7 Å
Skewness Skewness skewness	0.393
Kurtosis Kurtosis kurtosis	-0.083
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	6233000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.653; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.910; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Angiopoietin-1 receptor
Molecular weight formula_weight	47186.1 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3383

AMDLILINSLPLVSDAETSLTCIASGWRPHEPITIGRDFEALMNQHQDPLEVTQDVTREWAKKVVWKREKASKINGAYFCEGRVRGEAIRIRTMKMRQQASFLPATLTMTVDKGDNVNISFKKVLIKEEDAVIYKNGSFIHSVPRHEVPDILEVHLPHAQPQDAGVYSARYIGGNLFTSAFTRLIVRRCEAQKWGPECNHLCTACMNNGVCHEDTGECICPPGFMGRTCEKACELHTFGRTCKERCSGQEGCKSYVFCLPDPYGCSCATGWKGLQCNEACHPGFYGPDCKLRCSCNNGEMCDRFQGCLCSPGWQGLQCEREGIPRMTPKIVDLPDHIEVNSGKFNPICKASGWPLPTNEEMTLVKPDGTVLHPKDFNHTDHFSVAIFTIHRILPPDSGVWVCSVNTVAGMVEKPFNISVKVLP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cell free synthesis

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-alpha-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2gy5A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2gy5A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2gy5A03
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	300 — Tie2 ligand-binding domain fold
Homologous superfamily homologous superfamily	10 — Tie2 ligand-binding domain superfamily

Domain ID domain_id	2gy5A04
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	114.653 Å
Unit-cell length b length_b	114.653 Å
Unit-cell length c length_c	113.774 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2599
R_work r_work	0.2400
R_free r_free	0.2940

fit	/app/data/saxs_computation/gy/2gy5/2gy5.fit
pddf	/app/data/pr_computation/gy/2gy5/2gy5.pr.out
profile	/app/data/saxs_computation/gy/2gy5/2gy5.dat

Tie2 Ligand-Binding Domain Crystal Structure

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiopoietin-1 receptor

State in the Current Structure

Other States of the Same Protein in the Database

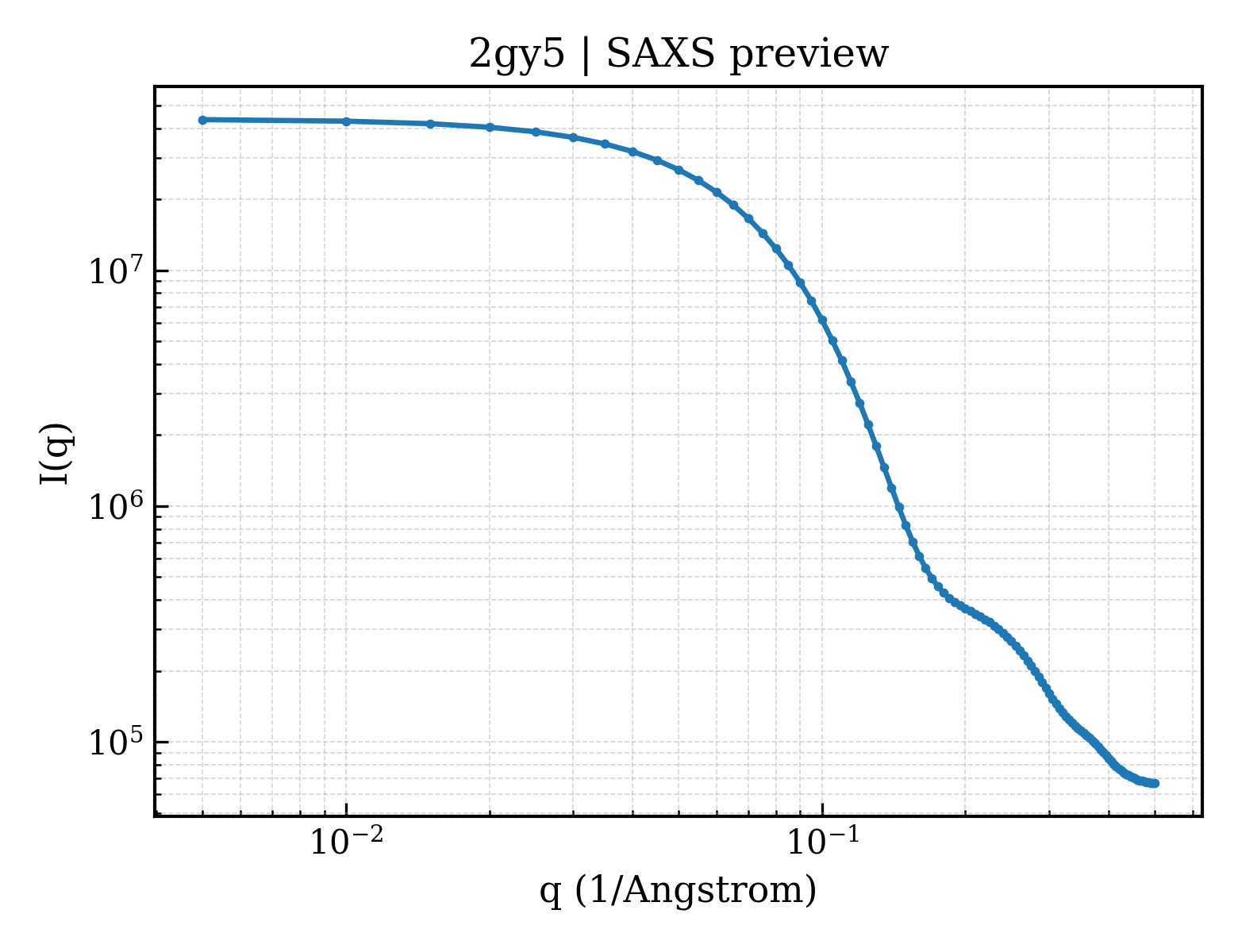

SAXS scattering curve SAXS Profile
