Crystal structure of cytoplasmic kinase domain of Tie2 complexed with inhibitor CEP11207

Method: X-RAY DIFFRACTION Dmax: 71.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiopoietin-1 receptor

Homo sapiens

UniProt Q02763

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 808–1124 Fragment：Tie2 fragment 808-1124 0CE 2-methyl-11-(1-methylethyl)-8-[(2S)-tetrahydro-2H-pyran-2-yl]-2,11,12,13-tetrahydro-4H-indazolo[5,4-a]pyrrolo[3,4-c]carbazol-4-one × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；8% PEG 3350, 0.2M Tri-Ammonium Citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K Resolution 2.40 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3L8P Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1FVR TIE2 KINASE DOMAIN Deposited 2000-09-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 808–1124（317 aa） Fragment：KINASE DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；2.5% PEG12000, 2.5% glycerol, 100mM Hepes, 10mM spermidine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 2.20 Å R-free 0.225
1FVR TIE2 KINASE DOMAIN Deposited 2000-09-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 808–1124（317 aa） Fragment：KINASE DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；2.5% PEG12000, 2.5% glycerol, 100mM Hepes, 10mM spermidine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 2.20 Å R-free 0.225
2GY5 Tie2 Ligand-Binding Domain Crystal Structure Deposited 2006-05-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–445（423 aa） Fragment：Ligand-binding domain (residues 23-445)
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 4 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；2.2M Ammonium Sulfate, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.90 Å R-free 0.294
2GY7 Angiopoietin-2/Tie2 Complex Crystal Structure Deposited 2006-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–445（423 aa） Fragment：Tie2 Ligand-binding domain (residues 23-445)
Not recorded CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；2.2 M Ammonium Sulfate, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.70 Å R-free 0.317
2OO8 Synthesis, Structural Analysis, and SAR Studies of Triazine Derivatives as Potent, Selective Tie-2 Inhibitors Deposited 2007-01-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain X 808–1124（317 aa） Fragment：Kinase domain
Not recorded RAJ N-{3-[3-(DIMETHYLAMINO)PROPYL]-5-(TRIFLUOROMETHYL)PHENYL}-4-METHYL-3-[(3-PYRIMIDIN-4-YLPYRIDIN-2-YL)AMINO]BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；14-18 % (w/v) PEG 3350, and 0.2 M tri-Potassium Citrate (pH 6.5-7.5), and 2% (v/v) isopropanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.279
2OSC Synthesis, Structural Analysis, and SAR Studies of Triazine Derivatives as Potent, Selective Tie-2 Inhibitors Deposited 2007-02-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 808–1124（317 aa） Fragment：Tie-2 Kinase domain
Not recorded MUH N-{4-METHYL-3-[(3-PYRIMIDIN-4-YLPYRIDIN-2-YL)AMINO]PHENYL}-3-(TRIFLUOROMETHYL)BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；14-18 % (w/v) PEG 3350, and 0.2 M tri-Potassium Citrate (pH 6.5-7.5), and 2% (v/v) isopropanol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.306
2P4I Evolution of a highly Selective and Potent 2-(Pyridin-2-yl)-1,3,5-triazine Tie-2 Kinase Inhibitor Deposited 2007-03-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 808–1124（317 aa）
Not recorded MR9 4-METHYL-3-({3-[2-(METHYLAMINO)PYRIMIDIN-4-YL]PYRIDIN-2-YL}OXY)-N-[2-MORPHOLIN-4-YL-5-(TRIFLUOROMETHYL)PHENYL]BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；14-18% PEG 3350, 0.2M tri-Potassium Citrate (pH 6.5-7.5) and 2% isopropanol., pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 2.50 Å R-free 0.303
2P4I Evolution of a highly Selective and Potent 2-(Pyridin-2-yl)-1,3,5-triazine Tie-2 Kinase Inhibitor Deposited 2007-03-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 808–1124（317 aa）
Not recorded MR9 4-METHYL-3-({3-[2-(METHYLAMINO)PYRIMIDIN-4-YL]PYRIDIN-2-YL}OXY)-N-[2-MORPHOLIN-4-YL-5-(TRIFLUOROMETHYL)PHENYL]BENZAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；14-18% PEG 3350, 0.2M tri-Potassium Citrate (pH 6.5-7.5) and 2% isopropanol., pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 2.50 Å R-free 0.303
2WQB Structure of the Tie2 kinase domain in complex with a thiazolopyrimidine inhibitor Deposited 2009-08-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 802–1124（323 aa） Fragment：KINASE DOMAIN, RESIDUES 802-1124
Mutation：YES QQ1 2-[3-(CYCLOHEXYLMETHYL)-5-PHENYL-IMIDAZOL-4-YL]-[1,3]THIAZOLO[4,5-E]PYRIMIDIN-7-AMINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；293 K；5 MG/ML PROTEIN, 5% (W/V) PEG6000, 5% (V/V) MPD, 100MM MOPS PH7.5, 293K
Resolution 2.95 Å R-free 0.259
3BEA cFMS tyrosine kinase (tie2 KID) in complex with a pyrimidinopyridone inhibitor Deposited 2007-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 917–935（19 aa）
Mutation：A695L SO4 SULFATE ION × 3 IXH 8-(2,3-dihydro-1H-inden-5-yl)-2-({4-[(3R,5S)-3,5-dimethylpiperazin-1-yl]phenyl}amino)-5-oxo-5,8-dihydropyrido[2,3-d]pyrimidine-6-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.02 Å R-free 0.230
4X3J Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 802–1122（321 aa） Fragment：Kinase domain, UNP residues 802-1122
Mutation：D964N 3WR 1-[4-(4-amino-5-oxopyrido[2,3-d]pyrimidin-8(5H)-yl)phenyl]-3-[2-fluoro-5-(trifluoromethyl)phenyl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Tris/HCl pH 7.0 0.05 M NaCl 0.03 M Lithiumsulfat
Resolution 2.50 Å R-free 0.293
5MYA Homodimerization of Tie2 Fibronectin-like domains 1-3 in space group C2 Deposited 2017-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 443–742（300 aa）
Chain B 443–742（300 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Tris buffer at pH 7.0 - 8.5 and 14-20% PEG 3350 (w/v)
Resolution 2.90 Å R-free 0.277
5MYB Homodimerization of Tie2 Fibronectin-like domains 2 and 3 in space group P21 Deposited 2017-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 443–742（300 aa）
Chain B 443–742（300 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.1 M Tris buffer at pH 7.0 - 8.5 and 14-20% PEG 3350 (w/v)
Resolution 2.60 Å R-free 0.278
5UTK Crystal structure of the membrane proximal three fibronectin type III (FNIII) domains of Tie2 (Tie2[FNIIIa-c]) Deposited 2017-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 399–698（300 aa） Fragment：unp residues 399-698
Chain B 399–698（300 aa） Fragment：unp residues 399-698
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；25-40% glycerol, 2.5-15% PEG 3K, 100 mM sodium acetate, 100 mM sodium phosphate, pH 4.5
Resolution 2.50 Å R-free 0.247
6MWE CRYSTAL STRUCTURE OF TIE2 IN COMPLEX WITH DECIPERA COMPOUND DP1919 Deposited 2018-10-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 808–1124（317 aa）
Not recorded SO4 SULFATE ION × 2 919 4-[4-({[3-tert-butyl-1-(quinolin-6-yl)-1H-pyrazol-5-yl]carbamoyl}amino)-3-fluorophenoxy]-N-methylpyridine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；290 K；JCSG+ screen e4: 1.26M ammonium sulphate: 200mM lithium sulphate, 100mM Tris pH 8.5: cryo: 25% EG in 3 steps
Resolution 2.05 Å R-free 0.166
6MWE CRYSTAL STRUCTURE OF TIE2 IN COMPLEX WITH DECIPERA COMPOUND DP1919 Deposited 2018-10-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 808–1124（317 aa）
Not recorded SO4 SULFATE ION × 2 919 4-[4-({[3-tert-butyl-1-(quinolin-6-yl)-1H-pyrazol-5-yl]carbamoyl}amino)-3-fluorophenoxy]-N-methylpyridine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；290 K；JCSG+ screen e4: 1.26M ammonium sulphate: 200mM lithium sulphate, 100mM Tris pH 8.5: cryo: 25% EG in 3 steps
Resolution 2.05 Å R-free 0.166
7E72 Crystal structure of Tie2-agonistic antibody in complex with human Tie2 Fn2-3 Deposited 2021-02-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 541–735（195 aa）
Not recorded EDO 1,2-ETHANEDIOL × 22 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292.15 K；100 mM Bis-Tris propane pH 8.5, 110 mM potassium dihydrogen phosphate, 15% (w/v) polyethylene glycol 3350
Resolution 2.09 Å R-free 0.233
7E72 Crystal structure of Tie2-agonistic antibody in complex with human Tie2 Fn2-3 Deposited 2021-02-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 541–735（195 aa）
Not recorded EDO 1,2-ETHANEDIOL × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292.15 K；100 mM Bis-Tris propane pH 8.5, 110 mM potassium dihydrogen phosphate, 15% (w/v) polyethylene glycol 3350
Resolution 2.09 Å R-free 0.233
9LV4 Cryo-EM Structure of Human Tie2/minibinder tw1102_4 helices Complex Deposited 2025-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–452（430 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.67 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TIE2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–317； UniProt 808–1124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

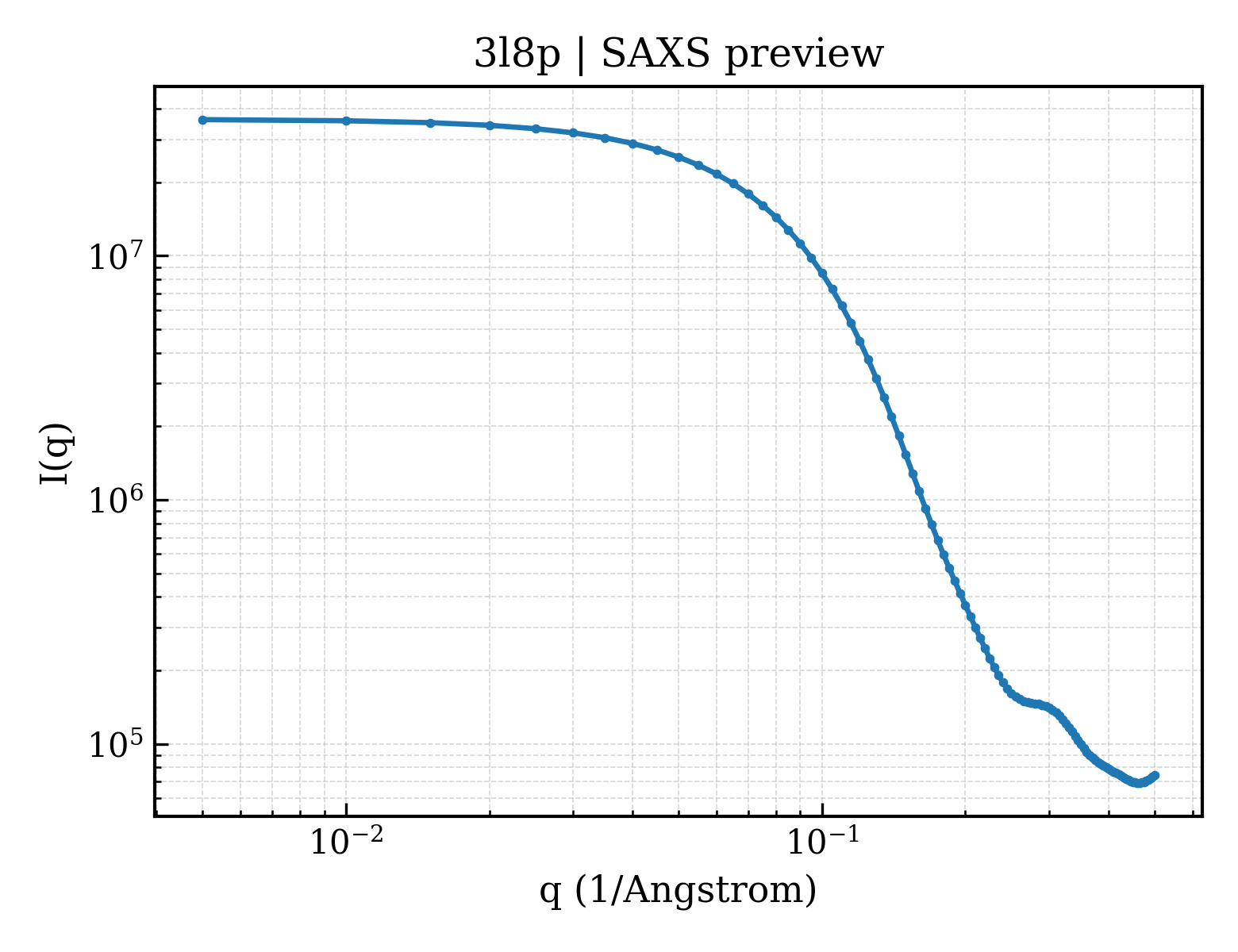

SAXS profile for 3l8p

P(r) Distance Distribution P(r) Distribution

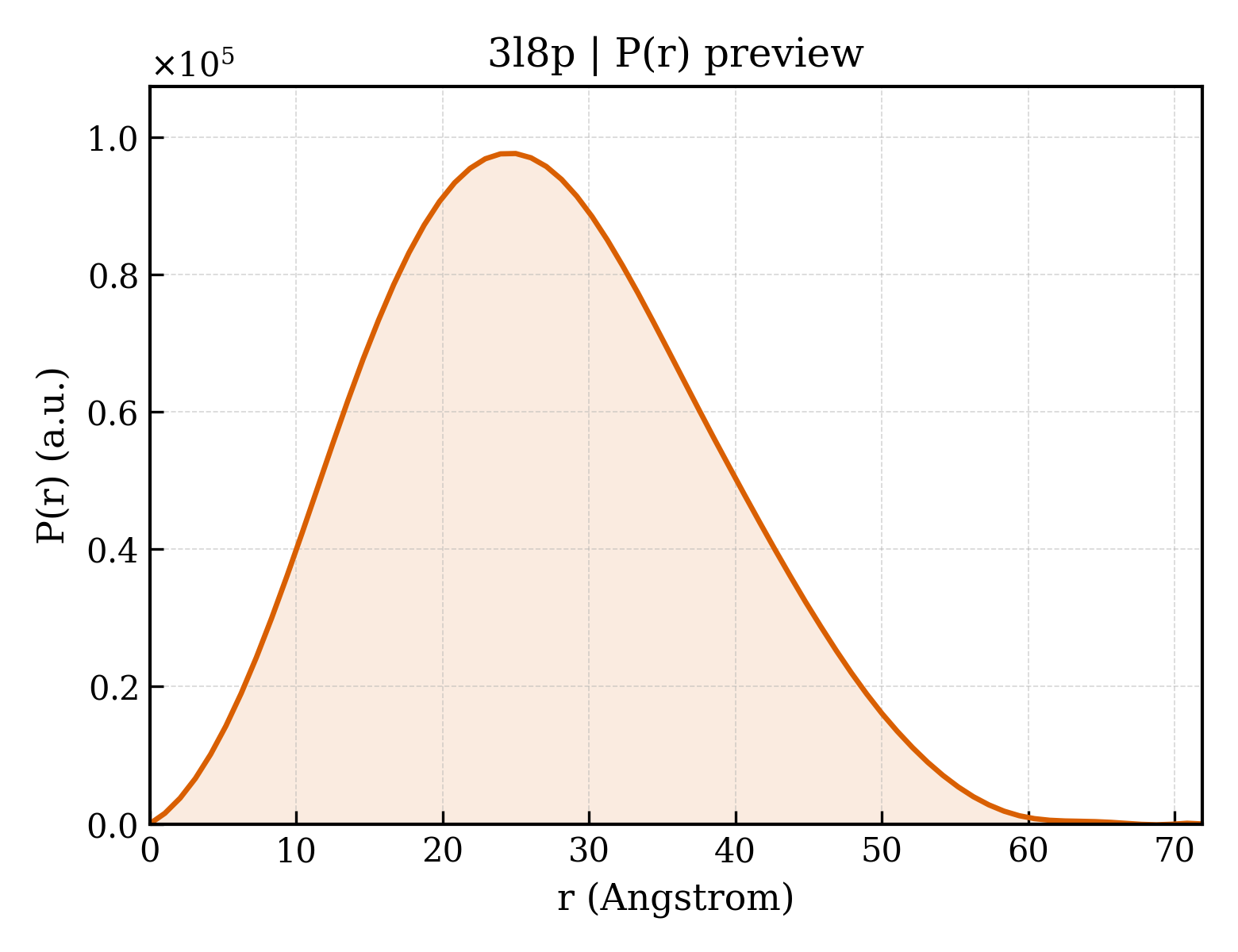

P(r) distribution for 3l8p
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3l8p
Deposition date deposition_date2010-01-03
Structure title titleCrystal structure of cytoplasmic kinase domain of Tie2 complexed with inhibitor CEP11207
Keywords keywords;receptor tyrosine kinase, cytoplasmic kinase domain, Tie2, inhibitor CEP11207, ATP-binding, Disease mutation, Glycoprotein, Kinase, Membrane, Nucleotide-binding, Phosphoprotein, Receptor, Transferase, Tyrosine-protein kinase ;; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier20.68 Å
Radius of gyration Rg (electron density) rg_electron19.87 Å
Forward intensity I(0) i036273600.00
Molecular weight molecular_weight31426.0 kDa
Excluded volume excluded_volume30568 ų
Envelope volume envelope_volume49397 ų
Hydration-shell volume shell_volume20864 ų
Envelope diameter envelope_diameter69.3 Å
Shell Rg shell_rg26.41 Å
Envelope Rg envelope_rg20.15 Å
Shape Rg shape_rg19.84 Å
Total Rg total_rg20.57 Å
Total atoms total_atoms2382
Residues n_residues292
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax71.9 Å
Rg (real space) rg_real20.62 Å
Rg uncertainty (real space) rg_real_error0.53 Å
I(0) (real space) i0_real3.6270e+07
I(0) uncertainty (real space) i0_real_error4.9670e+05
Rg (reciprocal space) rg_reciprocal20.63 Å
I(0) (reciprocal space) i0_reciprocal36270000.0000
Solution quality estimate total_estimate0.7916
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary25.0 Å
Skewness Skewness skewness0.265
Kurtosis Kurtosis kurtosis-0.409
Angular range angular_range— – 0.3850 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha7493000.0000
Real-space data points n_real_points70
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd3l8pa_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamilyd.144.1 — Protein kinase-like (PK-like)
Family Family familyd.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (2 domains)

Domain ID domain_id3l8pA01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily20 — Phosphorylase Kinase; domain 1
Domain ID domain_id3l8pA02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily10 — Transferase(Phosphotransferase) domain 1
▶

8. Citations (1)

▶
