2h1o

Structure of FitAB bound to IR36 DNA fragment

Method: X-RAY DIFFRACTION D_max: 111.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

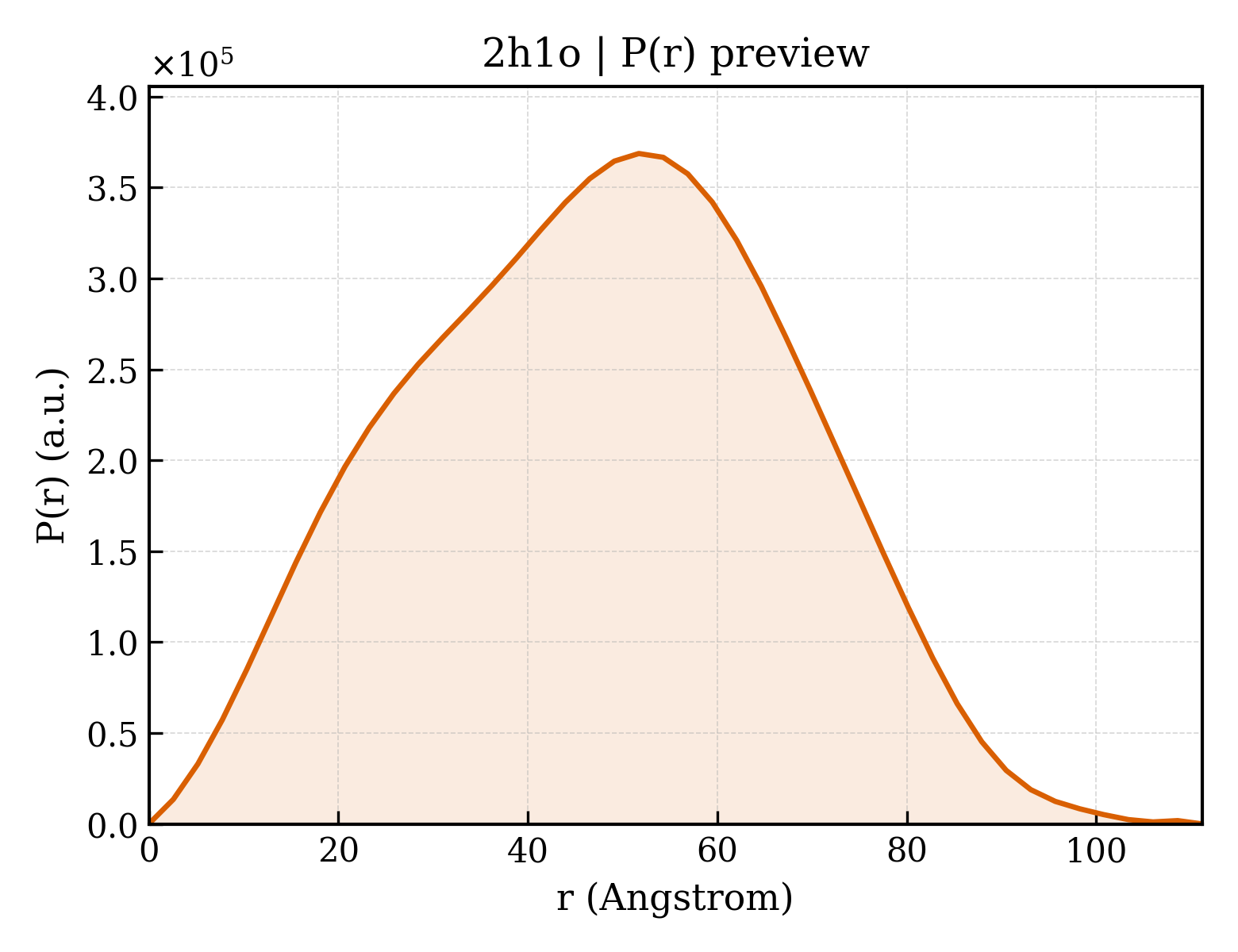

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2h1o
沉积日期 deposition_date	2006-05-16
结构标题 title	Structure of FitAB bound to IR36 DNA fragment
关键词 keywords	PIN domain, RHH protein, DNA binding, tetramer of dimers, GENE REGULATION-DNA COMPLEX COMPLEX; GENE REGULATION/DNA COMPLEX
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.77 Å
回转半径 Rg (电子) rg_electron	35.70 Å
零角强度 I(0) i0	245695000.00
分子量 molecular_weight	113140.0 kDa
排除体积 excluded_volume	136000 Å³
包络体积 envelope_volume	194230 Å³
水化壳体积 shell_volume	44541 Å³
包络直径 envelope_diameter	118.4 Å
壳层 Rg shell_rg	43.41 Å
包络 Rg envelope_rg	34.29 Å
形状 Rg shape_rg	35.70 Å
总 Rg total_rg	36.21 Å
总原子数 total_atoms	7860
残基数 n_residues	898
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.2 Å
Rg (实空间) rg_real	36.54 Å
Rg 误差 (实空间) rg_real_error	0.90 Å
I(0) (实空间) i0_real	2.4570e+08
I(0) 误差 (实空间) i0_real_error	4.0890e+06
Rg (倒空间) rg_reciprocal	36.69 Å
I(0) (倒空间) i0_reciprocal	245700000.0000
解质量估计 total_estimate	0.7106
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	51.7 Å
偏度 Skewness skewness	0.001
峰度 Kurtosis kurtosis	-0.613
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13510000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 0.159; Positv: 1.000; Valcen: 0.995; Smooth: 0.897

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	IR36-strand 1
分子量 formula_weight	11170.0 kDa
突变 mutation	iodo
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	U
原子数 atom_count	7906

AGATTGCTATCATTTTTTTTATTTTGATAGCATUTG

Entity 2 polymer

描述 description	IR36-strand 2
分子量 formula_weight	11198.1 kDa
突变 mutation	iodo
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	V

CAAATGCTATCAAAAUAAAAAAAATGATAGCAATCT

Entity 3 polymer

描述 description	Trafficking protein B
分子量 formula_weight	15919.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

MILLDTNVISEPLRPQPNERVVAWLDSLILEDVYLSAITVAEMRLGVALLLNGKKKNVLHERMEQSILPLFAGRILPFDEPVAAIYAQIRSYAKTHGKEIAAADGYIAATAKQHSMTVATRDTGSFFAADVAVFNPWHLEHHH

来源 Source

来源生物 organism	Neisseria gonorrhoeae
NCBI 分类编号 ncbi_taxonomy_id	485
宿主生物 host_organism	Escherichia coli BL21

Entity 4 polymer

描述 description	Trafficking protein A
分子量 formula_weight	7283.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

ASVVIRNLSEATHNAIKFRARAAGRSTEAEIRLILDNIAKAQQTVRLGSMLASIGQEIGGVELEDVRG

来源 Source

来源生物 organism	Neisseria gonorrhoeae
NCBI 分类编号 ncbi_taxonomy_id	485
宿主生物 host_organism	Escherichia coli BL21

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	46

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2h1oa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.120 — PIN domain-like
超家族 Superfamily superfamily	c.120.1 — PIN domain-like
家族 Family family	c.120.1.1 — PIN domain

结构域编号 domain_id	d2h1oa2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2h1ob1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.120 — PIN domain-like
超家族 Superfamily superfamily	c.120.1 — PIN domain-like
家族 Family family	c.120.1.1 — PIN domain

结构域编号 domain_id	d2h1ob2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2h1oc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.120 — PIN domain-like
超家族 Superfamily superfamily	c.120.1 — PIN domain-like
家族 Family family	c.120.1.1 — PIN domain

结构域编号 domain_id	d2h1oc2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2h1od1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.120 — PIN domain-like
超家族 Superfamily superfamily	c.120.1 — PIN domain-like
家族 Family family	c.120.1.1 — PIN domain

结构域编号 domain_id	d2h1od2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2h1oe1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.8 — Trafficking protein A-like

结构域编号 domain_id	d2h1of1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.8 — Trafficking protein A-like

结构域编号 domain_id	d2h1og1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.8 — Trafficking protein A-like

结构域编号 domain_id	d2h1oh1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.8 — Trafficking protein A-like

CATH v4.4 (8 domains)

结构域编号 domain_id	2h1oA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1010 — 5'-nuclease

结构域编号 domain_id	2h1oB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1010 — 5'-nuclease

结构域编号 domain_id	2h1oC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1010 — 5'-nuclease

结构域编号 domain_id	2h1oD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1010 — 5'-nuclease

结构域编号 domain_id	2h1oE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2h1oF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2h1oG01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2h1oH01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	75.040 Å
晶胞边长 b length_b	82.403 Å
晶胞边长 c length_c	135.503 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.19 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	70.360 Å
R 因子 r_factor	0.2690
R_work r_work	0.2120
R_free r_free	0.2690

fit	/app/data/saxs_computation/h1/2h1o/2h1o.fit
pddf	/app/data/pr_computation/h1/2h1o/2h1o.pr.out
profile	/app/data/saxs_computation/h1/2h1o/2h1o.dat
