SAXSdb — 2h1x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

5-hydroxyisourate Hydrolase (formerly known as TRP, Transthyretin Related Protein)

Danio rerio

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q0P422_BRARE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–119； UniProt 1–95 Author chain B； PDBConstruct 1–119； UniProt 1–95 Author chain C； PDBConstruct 1–119； UniProt 1–95 Author chain D； PDBConstruct 1–119； UniProt 1–95

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h1x
Deposition date deposition_date	2006-05-17
Structure title title	Crystal structure of 5-hydroxyisourate Hydrolase (formerly known as TRP, Transthyretin Related Protein)
Keywords keywords	5-hydroxyisourate Hydrolase, TRP, uric acid degradation, allantoin, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h1x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

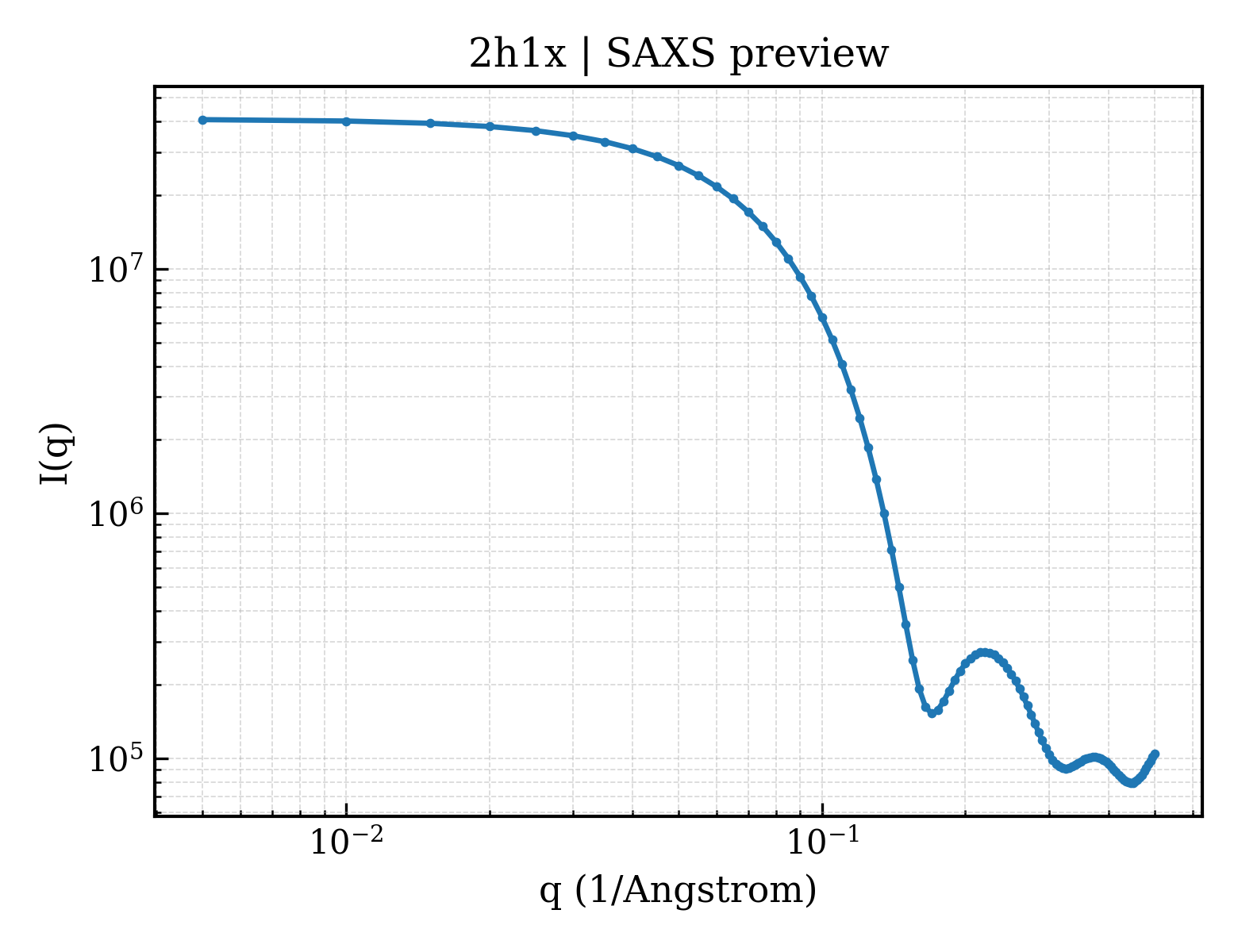

2h1x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

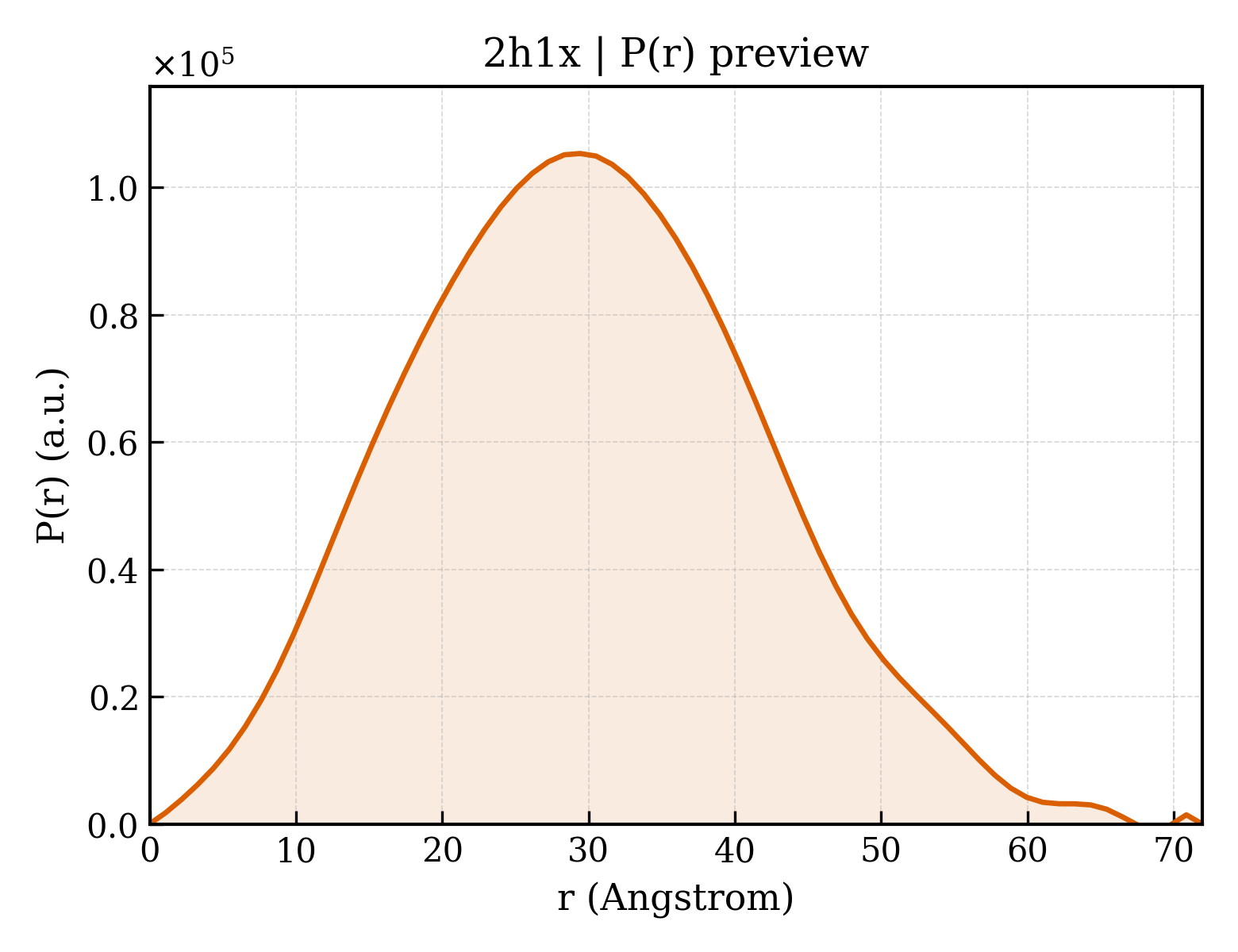

2h1x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.81 Å
Rg (electron density)	21.66 Å
Total Rg	22.66 Å
Atom count	3572
Residues	452
Excluded volume	63703 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h1x__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2h1xa_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.0 — automated matches

Domain ID domain_id	d2h1xb_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.0 — automated matches

Domain ID domain_id	d2h1xc_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.0 — automated matches

Domain ID domain_id	d2h1xd_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2h1xA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	2h1xB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	2h1xC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	2h1xD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

▶

Unit-cell length a length_a	58.078 Å
Unit-cell length b length_b	64.135 Å
Unit-cell length c length_c	58.937 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.980 Å
Low-resolution limit resolution_low	58.820 Å
R factor r_factor	0.2081
R_work r_work	0.2057
R_free r_free	0.2517

Description description	5-hydroxyisourate Hydrolase (formerly known as TRP, Transthyretin Related Protein)
Molecular weight formula_weight	13260.1 kDa
EC 编号 ec_number	3.5.2.17
Mutation mutation	S2A
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3693

Crystal structure of 5-hydroxyisourate Hydrolase (formerly known as TRP, Transthyretin Related Protein)

1. Protein Identity and Related Structures Protein Identity & Related Structures

5-hydroxyisourate Hydrolase (formerly known as TRP, Transthyretin Related Protein)

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2h1x__assembly_1__model_1

2h1x__assembly_1__model_1 | I(q)

2h1x__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (2)

Source organism organism	Danio rerio
Common name common_name	zebrafish
NCBI taxonomy ID ncbi_taxonomy_id	7955
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	121
