SAXSdb — 2h6l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 3 ACETIC ACID × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O30132_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–138； UniProt 1–138 Author chain B； PDBConstruct 1–138； UniProt 1–138 Author chain C； PDBConstruct 1–138； UniProt 1–138

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h6l
Deposition date deposition_date	2006-05-31
Structure title title	X-Ray Crystal Structure of the Metal-containing Protein AF0104 from Archaeoglobus fulgidus. Northeast Structural Genomics Consortium Target GR103.
Keywords keywords	;X-Ray structure NESG GR103, Structural Genomics, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h6l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2h6l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

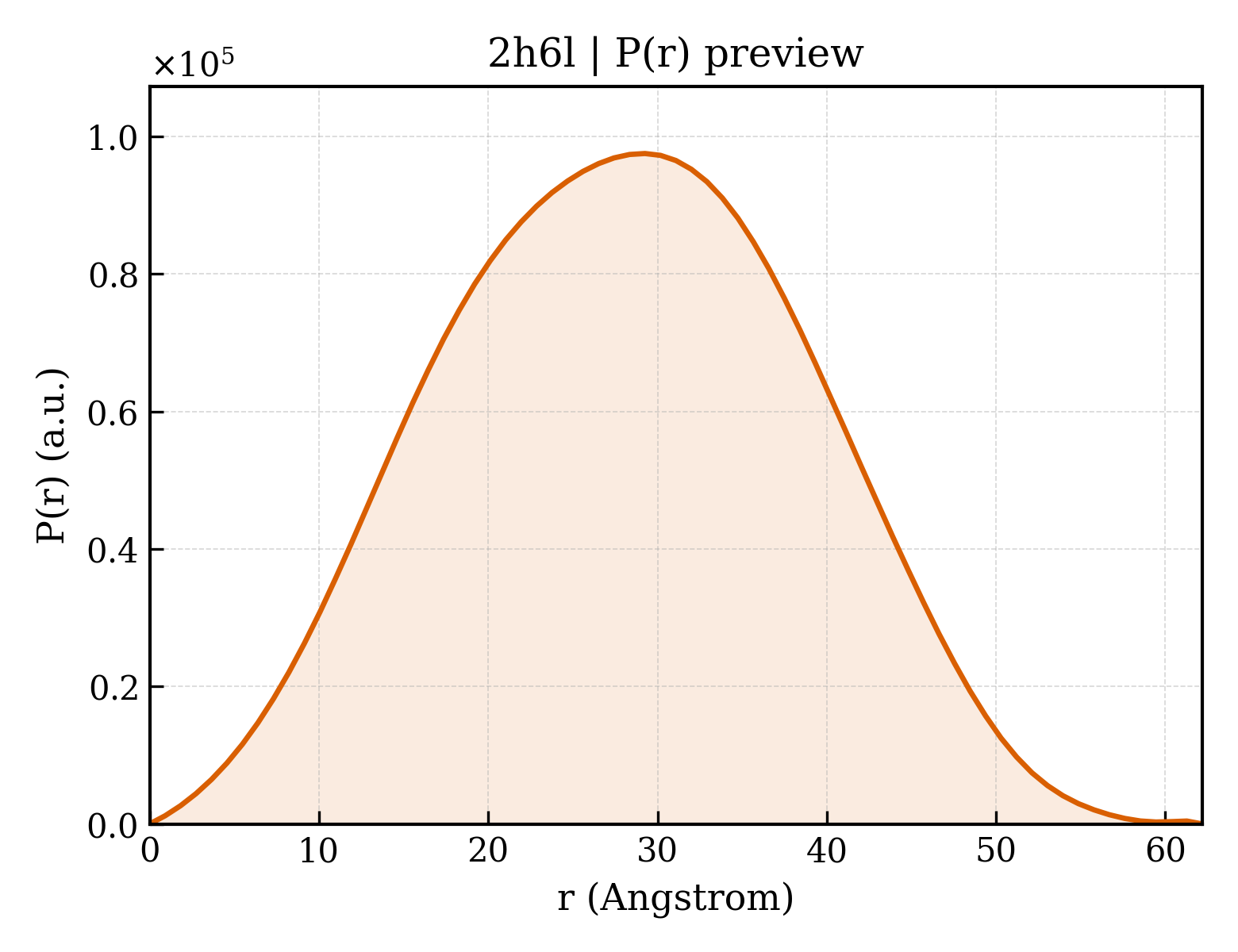

2h6l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.45 Å
Rg (electron density)	20.08 Å
Total Rg	21.09 Å
Atom count	3357
Residues	411
Excluded volume	60590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h6l__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein
Molecular weight formula_weight	16787.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3567

MKVFEFEVGKGFLLRLDYGKDLVRQIEEFLEEKGIHAAHISAIGAVRSAVIGYYDQEKKEYVKKELMEPLEILSLSGNVSMKDSKPFCHIHVLLGKDGEVYGGHLFSAEVFACEVFVLPLSGEAPERAFDEQTGLFLWLEHHHHHH

Source Source

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	2234
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2h6la1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.290 — AF0104/ALDC/Ptd012-like
Superfamily Superfamily superfamily	d.290.1 — AF0104/ALDC/Ptd012-like
Family Family family	d.290.1.3 — AF0104-like

Domain ID domain_id	d2h6la2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h6lb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.290 — AF0104/ALDC/Ptd012-like
Superfamily Superfamily superfamily	d.290.1 — AF0104/ALDC/Ptd012-like
Family Family family	d.290.1.3 — AF0104-like

Domain ID domain_id	d2h6lb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2h6lc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.290 — AF0104/ALDC/Ptd012-like
Superfamily Superfamily superfamily	d.290.1 — AF0104/ALDC/Ptd012-like
Family Family family	d.290.1.3 — AF0104-like

Domain ID domain_id	d2h6lc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	2h6lA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	80 — Hypothetical protein, similar to alpha- acetolactate decarboxylase; domain 2

Domain ID domain_id	2h6lB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	80 — Hypothetical protein, similar to alpha- acetolactate decarboxylase; domain 2

Domain ID domain_id	2h6lC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	80 — Hypothetical protein, similar to alpha- acetolactate decarboxylase; domain 2

▶

Unit-cell length a length_a	47.673 Å
Unit-cell length b length_b	47.714 Å
Unit-cell length c length_c	47.665 Å
Unit-cell angle α angle_alpha	70.75 °
Unit-cell angle β angle_beta	70.81 °
Unit-cell angle γ angle_gamma	70.83 °
Molecules per unit cell Z z_pdb	3

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.440 Å
R factor r_factor	0.1870
R_work r_work	0.1870
R_free r_free	0.2370

X-Ray Crystal Structure of the Metal-containing Protein AF0104 from Archaeoglobus fulgidus. Northeast Structural Genomics Consortium Target GR103.
