1. Protein Identity and Related Structures Protein Identity & Related Structures

Cold shock protein cspB

Bacillus caldolyticus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–66 Chain B； UniProt 1–66	Not recorded	5'-D(TPTPTPTPTPT)-3' × 2 CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；293.15 K；35% 2-methyl-2,4-pentanediol, 0.1 M sodium acetate pH 4.6, 0.02 M CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.29 Å R-free 0.162

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HAX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C9O CRYSTAL STRUCTURE ANALYSIS OF THE BACILLUS CALDOLYTICUS COLD SHOCK PROTEIN BC-CSP Deposited 1999-08-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Not recorded	NA SODIUM ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；MPD, HEPES, pH 7.5. VAPOR DIFFUSION, HANGING DROP at 293	Resolution 1.17 Å R-free 0.179
1HZ9 BACILLUS CALDOLYTICUS COLD-SHOCK PROTEIN MUTANTS TO STUDY DETERMINANTS OF PROTEIN STABILITY Deposited 2001-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：E46A Mutation：E46A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；MPD, Na-Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.234
1HZA BACILLUS CALDOLYTICUS COLD-SHOCK PROTEIN MUTANTS TO STUDY DETERMINANTS OF PROTEIN STABILITY Deposited 2001-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：V64T,L66E,67A Mutation：V64T,L66E,67A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 800, sodium chloride, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.246
1HZB BACILLUS CALDOLYTICUS COLD-SHOCK PROTEIN MUTANTS TO STUDY DETERMINANTS OF PROTEIN STABILITY Deposited 2001-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：L66E Mutation：L66E	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；MPD, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.28 Å R-free 0.189
1HZC BACILLUS CALDOLYTICUS COLD-SHOCK PROTEIN MUTANTS TO STUDY DETERMINANTS OF PROTEIN STABILITY Deposited 2001-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：R3E,E46A,L66E Mutation：R3E,E46A,L66E	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；MPD, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.32 Å R-free 0.181
1I5F BACILLUS CALDOLYTICUS COLD-SHOCK PROTEIN MUTANTS TO STUDY DETERMINANTS OF PROTEIN STABILITY Deposited 2001-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：R3E Mutation：R3E	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG 6000, sodium citrate, ammonia sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.40 Å R-free 0.205
5JX4 Crystal structure of E36-G37del mutant of the Bacillus caldolyticus cold shock protein. Deposited 2016-05-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–66（66 aa） Chain B 1–66（66 aa）	Mutation：E36del, G37del Mutation：E36del, G37del	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.1 M Sodium Acetate, Poly(ethylene glycol) methyl ether 2000 30%, 0.2 M Ammonium Sulfate. Protein 20 mg/mL in 20 mM Sodium phosphate.	Resolution 1.80 Å R-free 0.182

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSPB_BACCL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–66； UniProt 1–66 Author chain B； PDBConstruct 1–66； UniProt 1–66

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hax
Deposition date deposition_date	2006-06-13
Structure title title	Crystal structure of Bacillus caldolyticus cold shock protein in complex with hexathymidine
Keywords keywords	gene-expression regulator, beta barrel, protein-DNA complex, single-stranded DNA, GENE REGULATION-DNA COMPLEX; GENE REGULATION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

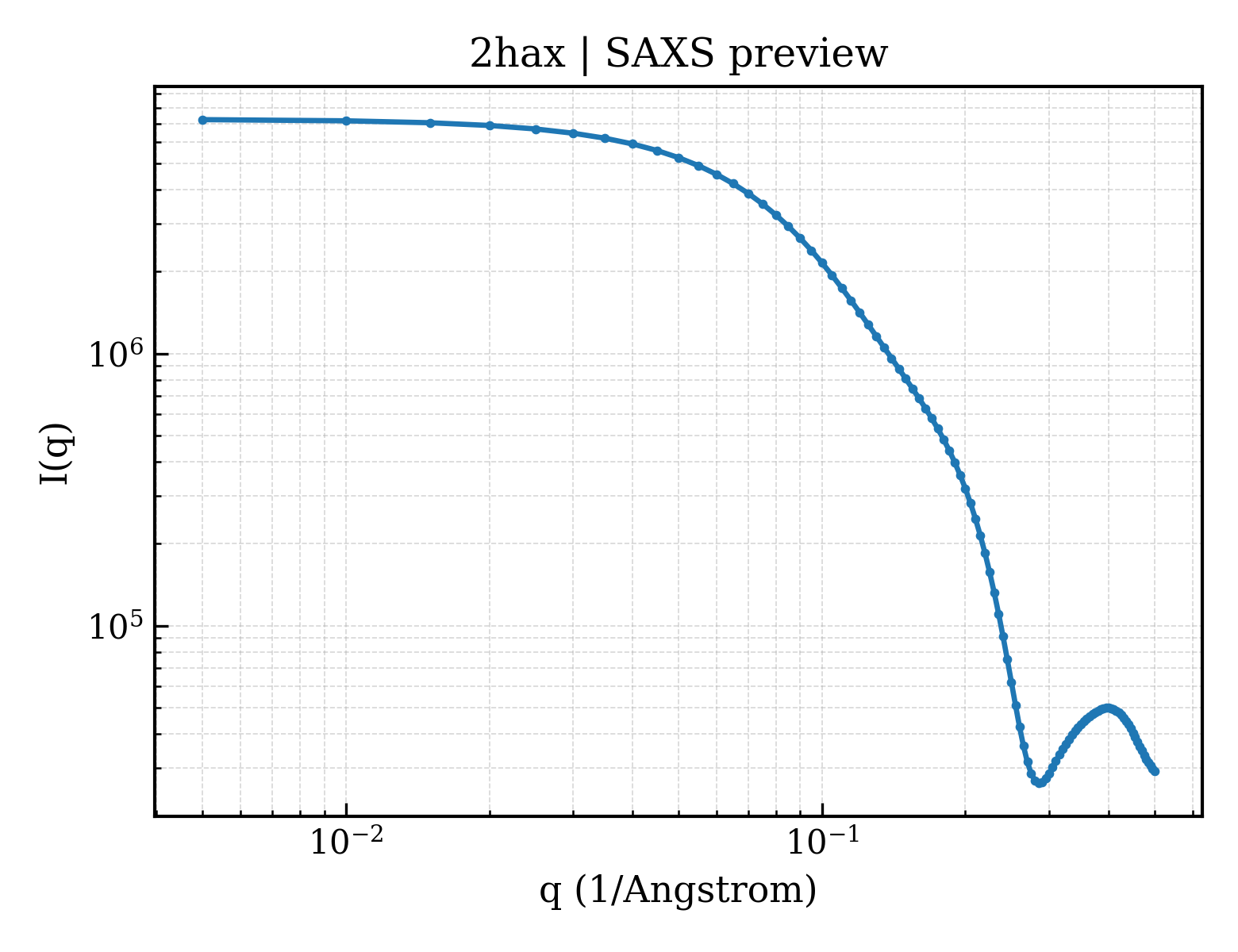

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.75 Å
Radius of gyration Rg (electron density) rg_electron	19.03 Å
Forward intensity I(0) i0	7253890.00
Molecular weight molecular_weight	18473.0 kDa
Excluded volume excluded_volume	22425 Å³
Envelope volume envelope_volume	27228 Å³
Hydration-shell volume shell_volume	12862 Å³
Envelope diameter envelope_diameter	64.9 Å
Shell Rg shell_rg	23.35 Å
Envelope Rg envelope_rg	19.10 Å
Shape Rg shape_rg	18.94 Å
Total Rg total_rg	19.90 Å
Total atoms total_atoms	1289
Residues n_residues	144
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

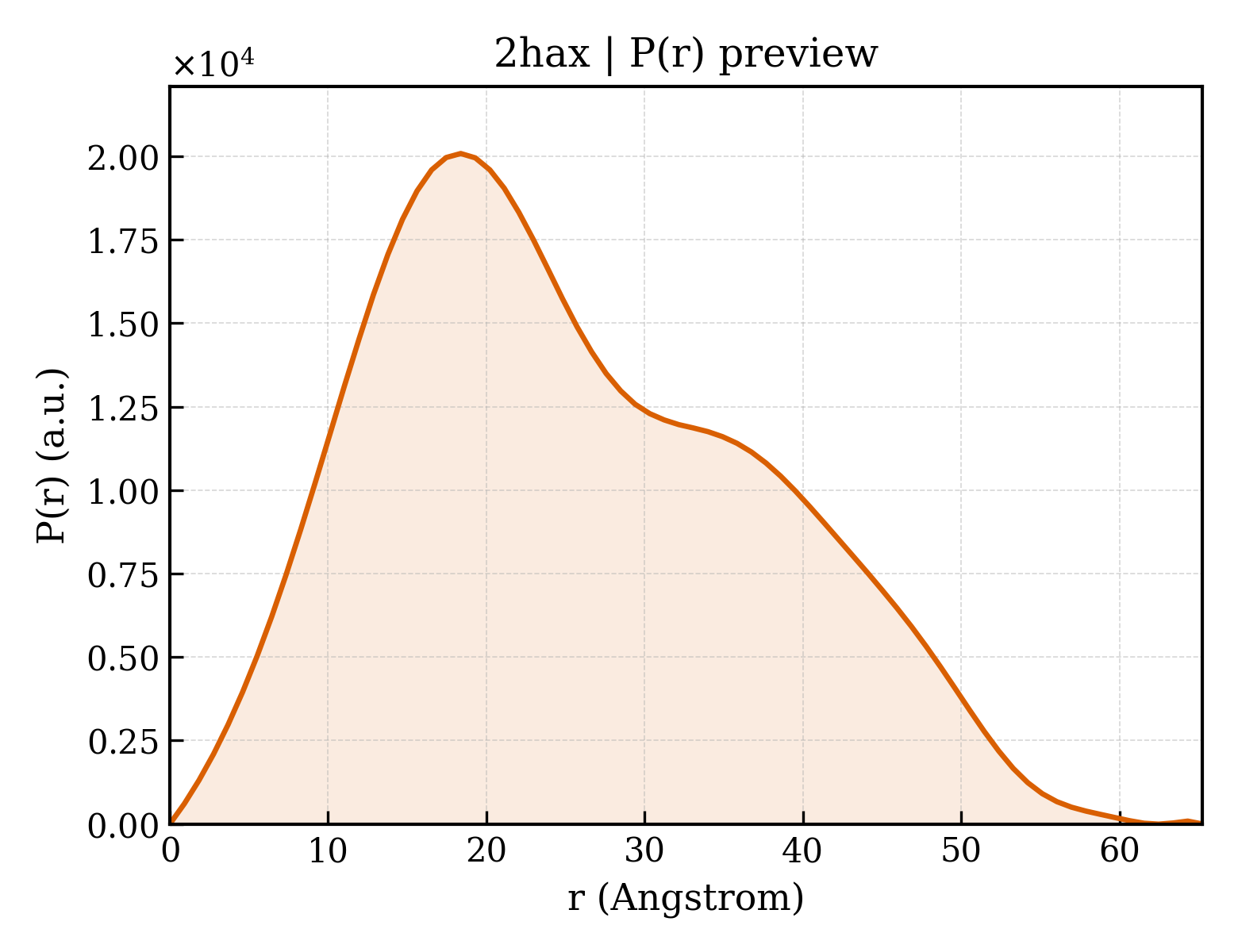

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	65.2 Å
Rg (real space) rg_real	19.86 Å
Rg uncertainty (real space) rg_real_error	0.42 Å
I(0) (real space) i0_real	7.2540e+06
I(0) uncertainty (real space) i0_real_error	8.6610e+04
Rg (reciprocal space) rg_reciprocal	19.85 Å
I(0) (reciprocal space) i0_reciprocal	7254000.0000
Solution quality estimate total_estimate	0.7698
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.4 Å
Skewness Skewness skewness	0.380
Kurtosis Kurtosis kurtosis	-0.645
Angular range angular_range	— – 0.4050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2595000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.741; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.780; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-D(TPTPTPTPTPT)-3'
Molecular weight formula_weight	1780.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D
Atom count atom_count	1614

TTTTTT

Entity 2 Entity 2 polymer

Description description	Cold shock protein cspB
Molecular weight formula_weight	7341.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MQRGKVKWFNNEKGYGFIEVEGGSDVFVHFTAIQGEGFKTLEEGQEVSFEIVQGNRGPQAANVVKL

来源 Source

来源生物 organism	Bacillus caldolyticus
NCBI Class编号 ncbi_taxonomy_id	1394
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	234

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2haxa_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2haxb_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

CATH v4.4 (4 domains)

Domain ID domain_id	2haxA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	2haxA02
Class class	6 — Special
Architecture architecture	20 — Other non-globular
Topology topology	370 — Rhinovirus 14, subunit 4
Homologous superfamily homologous superfamily	130 —

Domain ID domain_id	2haxB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	2haxB02
Class class	6 — Special
Architecture architecture	20 — Other non-globular
Topology topology	370 — Rhinovirus 14, subunit 4
Homologous superfamily homologous superfamily	130 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.340 Å
Unit-cell length b length_b	64.890 Å
Unit-cell length c length_c	31.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.290 Å
Low-resolution limit resolution_low	19.500 Å
R factor r_factor	0.1320
R_work r_work	0.1300
R_free r_free	0.1620
