1c9o
CRYSTAL STRUCTURE ANALYSIS OF THE BACILLUS CALDOLYTICUS COLD SHOCK PROTEIN BC-CSP

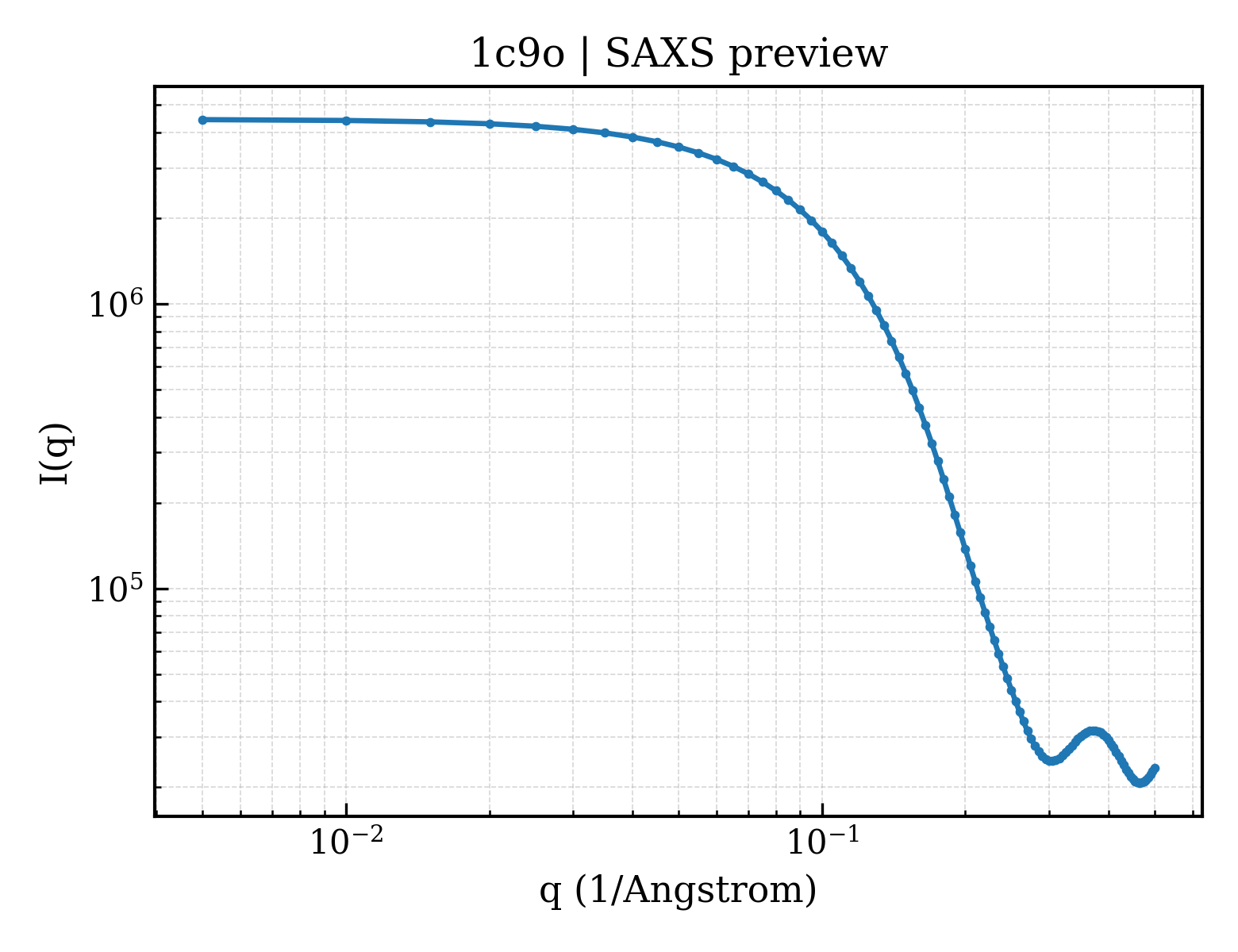

SAXS Profile

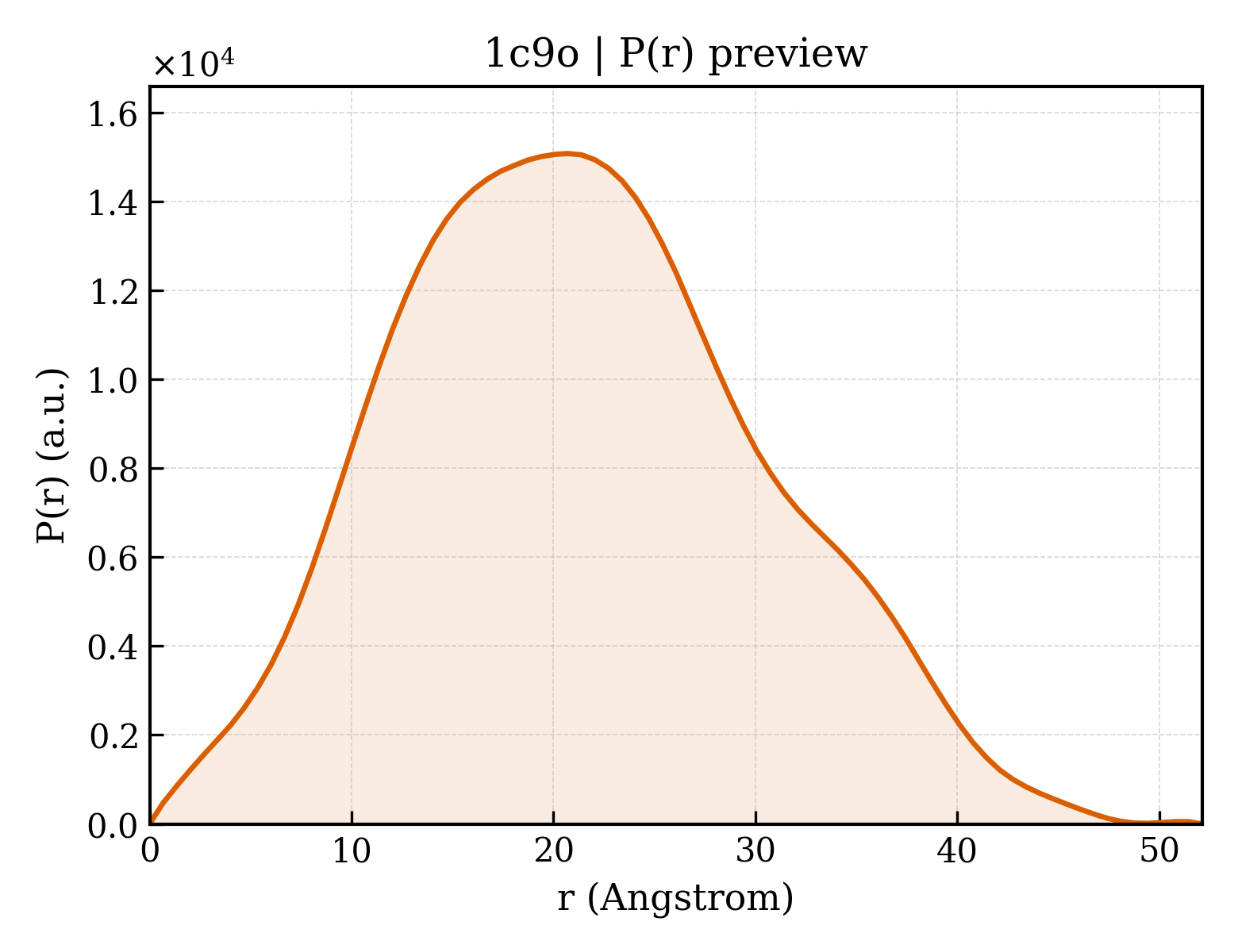

P(r) Distribution
1. Structure Basics
| entry_id | 1c9o |
| deposition_date | 1999-08-03 |
| title | CRYSTAL STRUCTURE ANALYSIS OF THE BACILLUS CALDOLYTICUS COLD SHOCK PROTEIN BC-CSP |
| keywords | BETA BARREL, HOMODIMER, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.40 Å |
| rg_electron | 15.28 Å |
| i0 | 4445320.00 |
| molecular_weight | 15075.0 kDa |
| excluded_volume | 18882 ų |
| envelope_volume | 22444 ų |
| shell_volume | 12781 ų |
| envelope_diameter | 50.2 Å |
| shell_rg | 20.45 Å |
| envelope_rg | 15.39 Å |
| shape_rg | 15.25 Å |
| total_rg | 16.37 Å |
| total_atoms | 1064 |
| n_residues | 132 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.1 Å |
| rg_real | 16.33 Å |
| rg_real_error | 0.37 Å |
| i0_real | 4.4450e+06 |
| i0_real_error | 5.7670e+04 |
| rg_reciprocal | 16.34 Å |
| i0_reciprocal | 4445000.0000 |
| total_estimate | 0.8905 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.7 Å |
| skewness | 0.243 |
| kurtosis | -0.409 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1368000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.987 |
