SAXSdb — 2hci

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Small inducible cytokine A20

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 1 SULFITE ION × 4 DI(HYDROXYETHYL)ETHER × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCL20_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–69； UniProt 27–95 Author chain B； PDBConstruct 1–69； UniProt 27–95

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hci
Deposition date deposition_date	2006-06-16
Structure title title	Structure of Human Mip-3a Chemokine
Keywords keywords	macrophage inflammatory protein-3a, Dimer, Space group I4, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hci__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hci__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

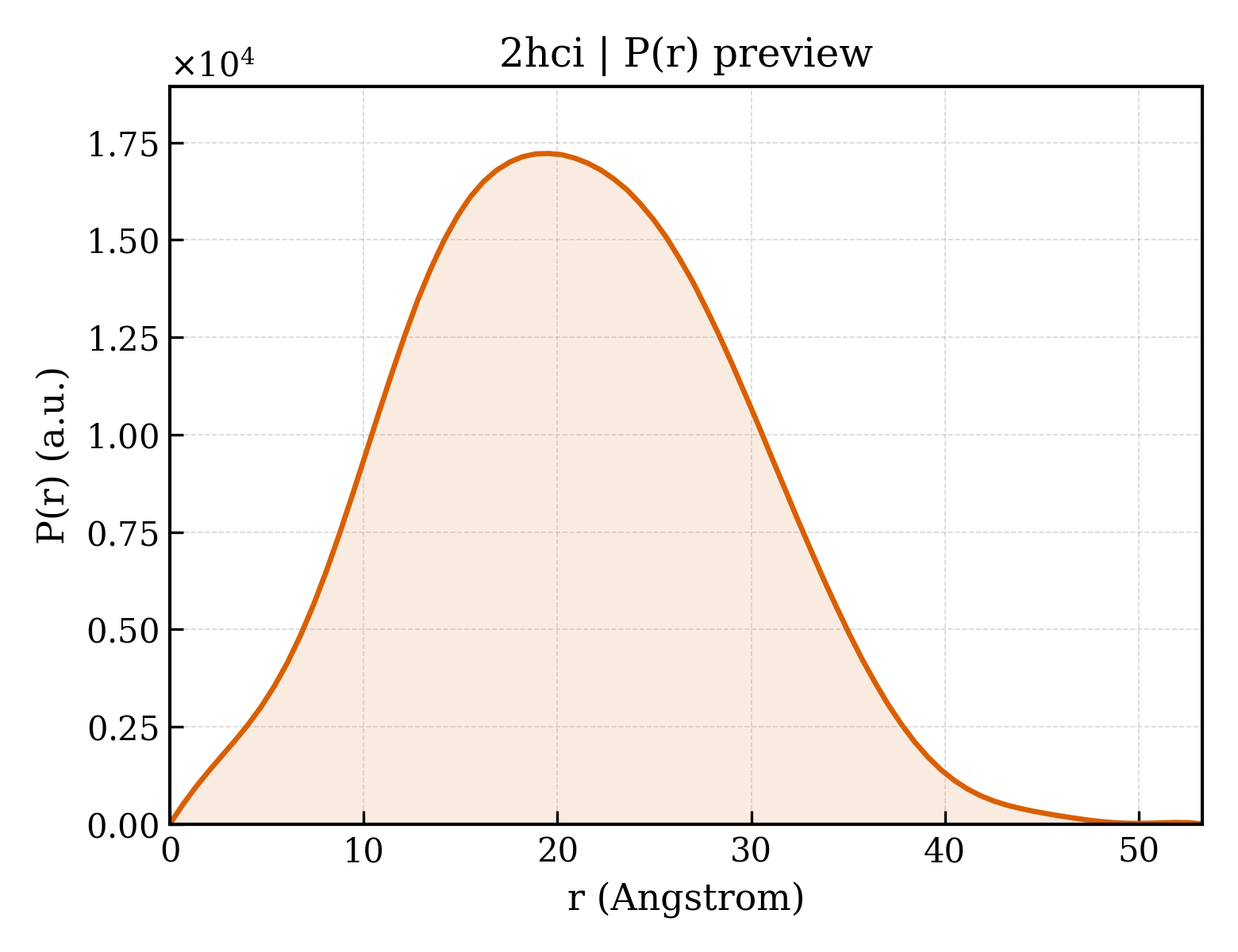

2hci__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.96 Å
Rg (electron density)	14.66 Å
Total Rg	16.03 Å
Atom count	1108
Residues	133
Excluded volume	20078 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hci__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Small inducible cytokine A20
Molecular weight formula_weight	7912.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1236

ASNFDCCLGYTDRILHPKFIVGFTRQLANEGCDINAIIFHTKKKLSVCANPKQTWVKYIVRLLSKKVKN

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFITE ION
Molecular weight formula_weight	80.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2hcia1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.9 — IL8-like
Superfamily Superfamily superfamily	d.9.1 — Interleukin 8-like chemokines
Family Family family	d.9.1.1 — Interleukin 8-like chemokines

Domain ID domain_id	d2hcib1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.9 — IL8-like
Superfamily Superfamily superfamily	d.9.1 — Interleukin 8-like chemokines
Family Family family	d.9.1.1 — Interleukin 8-like chemokines

CATH v4.4 (2 domains)

Domain ID domain_id	2hciA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2hciB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	83.991 Å
Unit-cell length b length_b	83.991 Å
Unit-cell length c length_c	57.221 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	1.810 Å
Low-resolution limit resolution_low	59.760 Å
R factor r_factor	0.2094
R_work r_work	0.2064
R_free r_free	0.2545
