SAXSdb — 2hcr

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hcr
沉积日期 deposition_date	2006-06-18
结构标题 title	crystal structure of human phosphoribosyl pyrophosphate synthetase 1 in complex with AMP(ATP), cadmium and sulfate ion
关键词 keywords	PRS1, prpp synthetase 1, phosphoribosyl pyrophosphate 1, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.07 Å
回转半径 Rg (电子) rg_electron	26.09 Å
零角强度 I(0) i0	82032100.00
分子量 molecular_weight	68524.0 kDa
排除体积 excluded_volume	84893 Å³
包络体积 envelope_volume	103020 Å³
水化壳体积 shell_volume	32622 Å³
包络直径 envelope_diameter	81.3 Å
壳层 Rg shell_rg	33.74 Å
包络 Rg envelope_rg	26.06 Å
形状 Rg shape_rg	26.11 Å
总 Rg total_rg	26.80 Å
总原子数 total_atoms	4769
残基数 n_residues	613
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.2 Å
Rg (实空间) rg_real	26.96 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	8.2030e+07
I(0) 误差 (实空间) i0_real_error	1.1080e+06
Rg (倒空间) rg_reciprocal	26.99 Å
I(0) (倒空间) i0_reciprocal	82030000.0000
解质量估计 total_estimate	0.9101
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.0 Å
偏度 Skewness skewness	0.198
峰度 Kurtosis kurtosis	-0.581
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21840000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.966

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Ribose-phosphate pyrophosphokinase I
分子量 formula_weight	35950.4 kDa
EC 编号 ec_number	2.7.6.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4913

MPNIKIFSGSSHQDLSQKIADRLGLELGKVVTKKFSNQETCVEIGESVRGEDVYIVQSGCGEINDNLMELLIMINACKIASASRVTAVIPCFPYARQDKKDKSRAPISAKLVANMLSVAGADHIITMDLHASQIQGFFDIPVDNLYAEPAVLKWIRENISEWRNCTIVSPDAGGAKRVTSIADRLNVDFALIHKERKKANEVDRMVLVGDVKDRVAILVDDMADTCGTICHAADKLLSAGATRVYAILTHGIFSGPAISRINNACFEAVVVTNTIPQEDKMKHCSKIQVIDISMILAEAIRRTHNGESVSYLFSHVPLLEHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	CADMIUM ION
分子量 formula_weight	112.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ADENOSINE MONOPHOSPHATE
分子量 formula_weight	347.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	144

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2hcra1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.61 — PRTase-like
超家族 Superfamily superfamily	c.61.1 — PRTase-like
家族 Family family	c.61.1.0 — automated matches

结构域编号 domain_id	d2hcra2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.61 — PRTase-like
超家族 Superfamily superfamily	c.61.1 — PRTase-like
家族 Family family	c.61.1.0 — automated matches

结构域编号 domain_id	d2hcrb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.61 — PRTase-like
超家族 Superfamily superfamily	c.61.1 — PRTase-like
家族 Family family	c.61.1.0 — automated matches

结构域编号 domain_id	d2hcrb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.61 — PRTase-like
超家族 Superfamily superfamily	c.61.1 — PRTase-like
家族 Family family	c.61.1.0 — automated matches

CATH v4.4 (4 domains)

结构域编号 domain_id	2hcrA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2020 —

结构域编号 domain_id	2hcrA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2020 —

结构域编号 domain_id	2hcrB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2020 —

结构域编号 domain_id	2hcrB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2020 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	170.236 Å
晶胞边长 b length_b	170.236 Å
晶胞边长 c length_c	61.820 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2540

fit	/app/data/saxs_computation/hc/2hcr/2hcr.fit
pddf	/app/data/pr_computation/hc/2hcr/2hcr.pr.out
profile	/app/data/saxs_computation/hc/2hcr/2hcr.dat

crystal structure of human phosphoribosyl pyrophosphate synthetase 1 in complex with AMP(ATP), cadmium and sulfate ion

SAXS 散射曲线 SAXS Profile

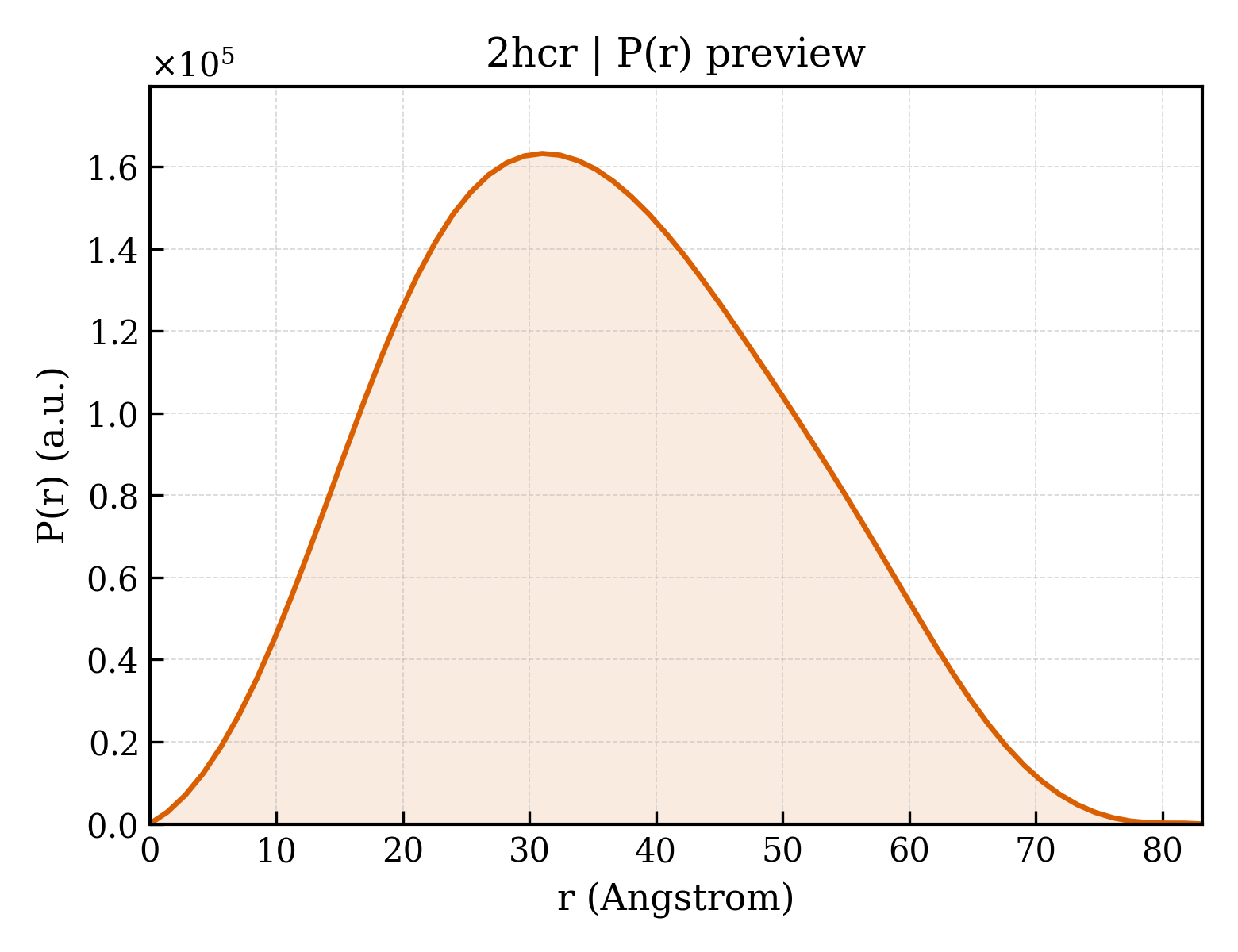

P(r) 距离分布 P(r) Distribution
