SAXSdb — 2he4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 147–232	Fragment：PDZ 2 Domain (Residues 147-230) Mutation：D229G	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.45 Å R-free 0.180

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HE4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2D11 Crystal structure of the Radixin FERM domain complexed with the NHERF-2 C-terminal tail peptide Deposited 2005-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 310–337（28 aa） Fragment：residues 310-337	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.81 Å R-free 0.278
2D11 Crystal structure of the Radixin FERM domain complexed with the NHERF-2 C-terminal tail peptide Deposited 2005-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 310–337（28 aa） Fragment：residues 310-337	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.81 Å R-free 0.278
2D11 Crystal structure of the Radixin FERM domain complexed with the NHERF-2 C-terminal tail peptide Deposited 2005-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 310–337（28 aa） Fragment：residues 310-337	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.81 Å R-free 0.278
2D11 Crystal structure of the Radixin FERM domain complexed with the NHERF-2 C-terminal tail peptide Deposited 2005-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 310–337（28 aa） Fragment：residues 310-337	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG4000, 5% Isopropanol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.81 Å R-free 0.278
2OCS The crystal structure of the first PDZ domain of human NHERF-2 (SLC9A3R2) Deposited 2006-12-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–91（83 aa）	Not recorded	SCN THIOCYANATE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；20% PEG 3350, 0.20M KSCN, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.198
4P0C Crystal Structure of NHERF2 PDZ1 Domain in Complex with LPA2 Deposited 2014-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–90（82 aa） Fragment：UNP Q15599 residues 9-90; UNP Q9HBW0 residues 347-351	Not recorded	SCN THIOCYANATE ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM sodium acetate, 0.2 M ammonium acetate	Resolution 1.34 Å R-free 0.177

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NHRF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–86； UniProt 147–232

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2he4
Deposition date deposition_date	2006-06-21
Structure title title	The crystal structure of the second PDZ domain of human NHERF-2 (SLC9A3R2) interacting with a mode 1 PDZ binding motif
Keywords keywords	Phosphorylation, Structural Genomics, Structural Genomics Consortium, SGC, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.26 Å
Radius of gyration Rg (electron density) rg_electron	12.87 Å
Forward intensity I(0) i0	2284110.00
Molecular weight molecular_weight	9788.0 kDa
Excluded volume excluded_volume	12103 Å³
Envelope volume envelope_volume	14748 Å³
Hydration-shell volume shell_volume	10025 Å³
Envelope diameter envelope_diameter	48.1 Å
Shell Rg shell_rg	18.19 Å
Envelope Rg envelope_rg	13.39 Å
Shape Rg shape_rg	12.84 Å
Total Rg total_rg	14.23 Å
Total atoms total_atoms	689
Residues n_residues	90
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.1 Å
Rg (real space) rg_real	14.19 Å
Rg uncertainty (real space) rg_real_error	0.29 Å
I(0) (real space) i0_real	2.2840e+06
I(0) uncertainty (real space) i0_real_error	2.7600e+04
Rg (reciprocal space) rg_reciprocal	14.20 Å
I(0) (reciprocal space) i0_reciprocal	2284000.0000
Solution quality estimate total_estimate	0.7799
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.0 Å
Skewness Skewness skewness	0.221
Kurtosis Kurtosis kurtosis	-0.144
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	446500.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.713; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Na(+)/H(+) exchange regulatory cofactor NHE-RF2
Molecular weight formula_weight	9931.3 kDa
Mutation mutation	D229G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	840

SMLRPRLCHLRKGPQGYGFNLHSDKSRPGQYIRSVDPGSPAARSGLRAQDRLIEVNGQNVEGLRHAEVVASIKAREDEARLLVVGPSTRL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	113

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2he4a1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d2he4a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2he4a3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2he4A00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.803 Å
Unit-cell length b length_b	37.677 Å
Unit-cell length c length_c	40.340 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	39.970 Å
R factor r_factor	0.1320
R_work r_work	0.1296
R_free r_free	0.1800

fit	/app/data/saxs_computation/he/2he4/2he4.fit
pddf	/app/data/pr_computation/he/2he4/2he4.pr.out
profile	/app/data/saxs_computation/he/2he4/2he4.dat

The crystal structure of the second PDZ domain of human NHERF-2 (SLC9A3R2) interacting with a mode 1 PDZ binding motif

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF2

State in the Current Structure

Other States of the Same Protein in the Database

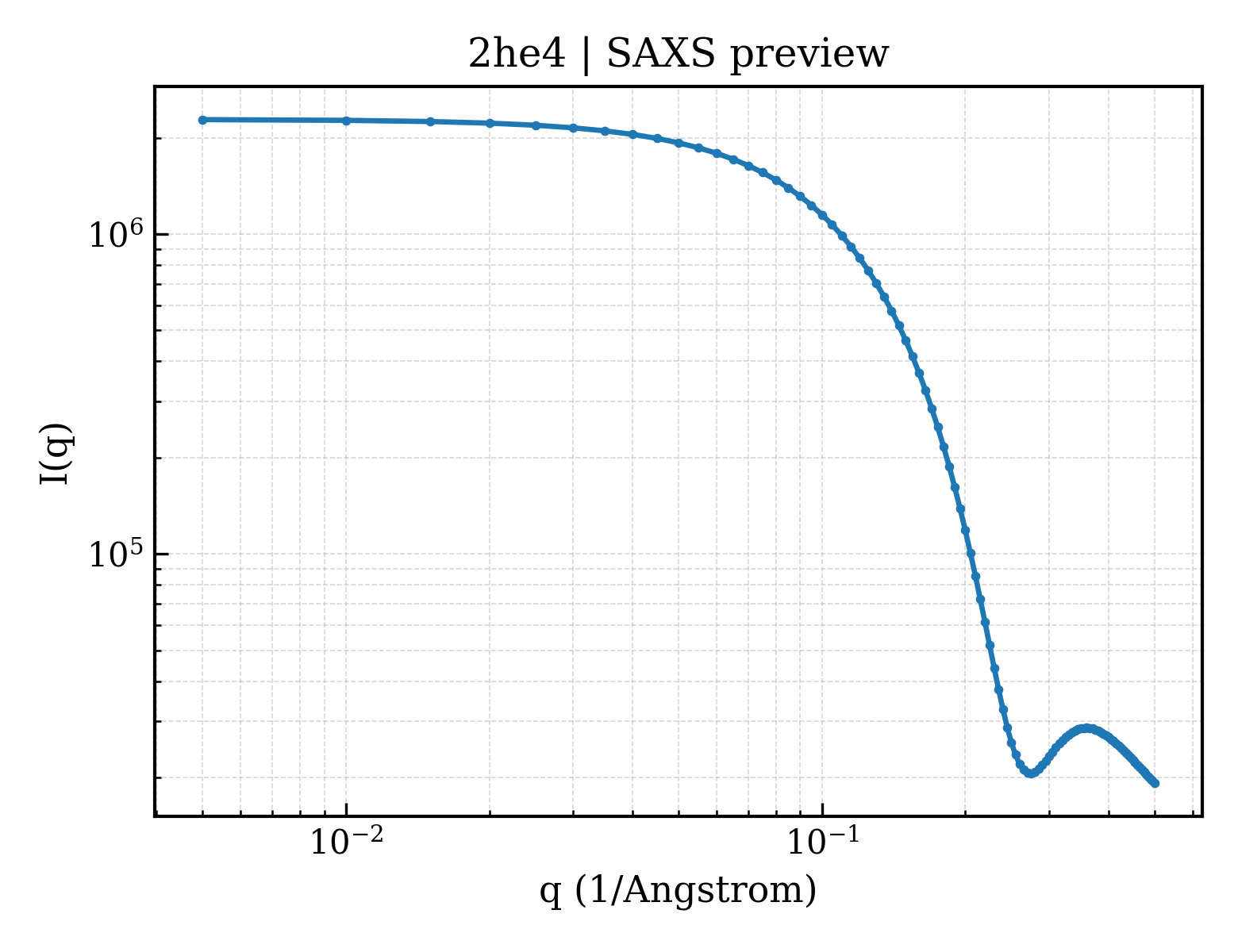

SAXS scattering curve SAXS Profile

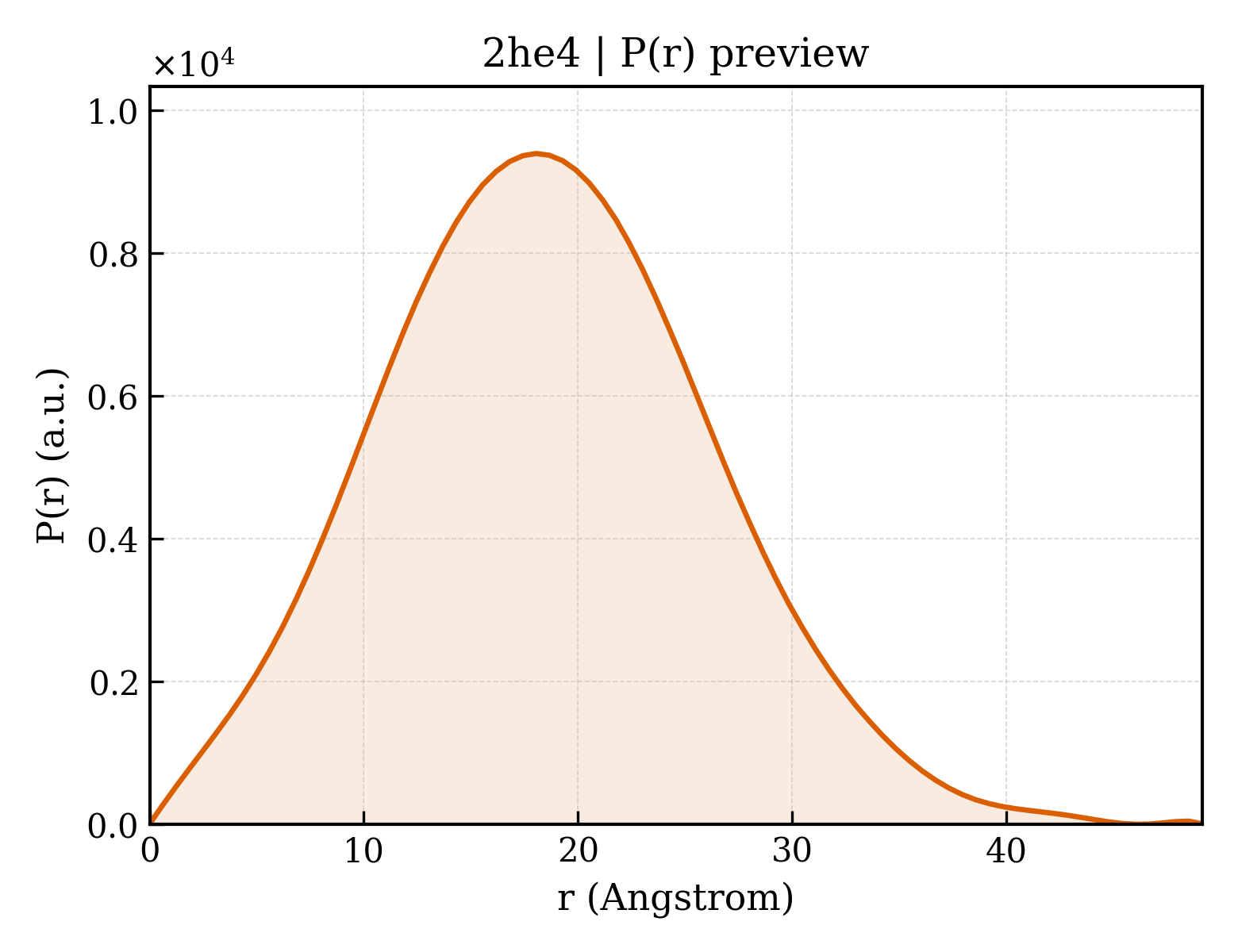

P(r) Distance Distribution P(r) Distribution
