SAXSdb — 4p0c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Na(+)/H(+) exchange regulatory cofactor NHE-RF2/Lysophosphatidic acid receptor 2 chimeric protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	THIOCYANATE ION × 1 CHLORIDE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NHRF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–83； UniProt 9–90

Na(+)/H(+) exchange regulatory cofactor NHE-RF2/Lysophosphatidic acid receptor 2 chimeric protein

Homo sapiens

UniProt Q9HBW0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	THIOCYANATE ION × 1 CHLORIDE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LPAR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 84–88； UniProt 347–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4p0c
Deposition date deposition_date	2014-02-20
Structure title title	Crystal Structure of NHERF2 PDZ1 Domain in Complex with LPA2
Keywords keywords	PDZ, protein-protein interaction, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4p0c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4p0c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

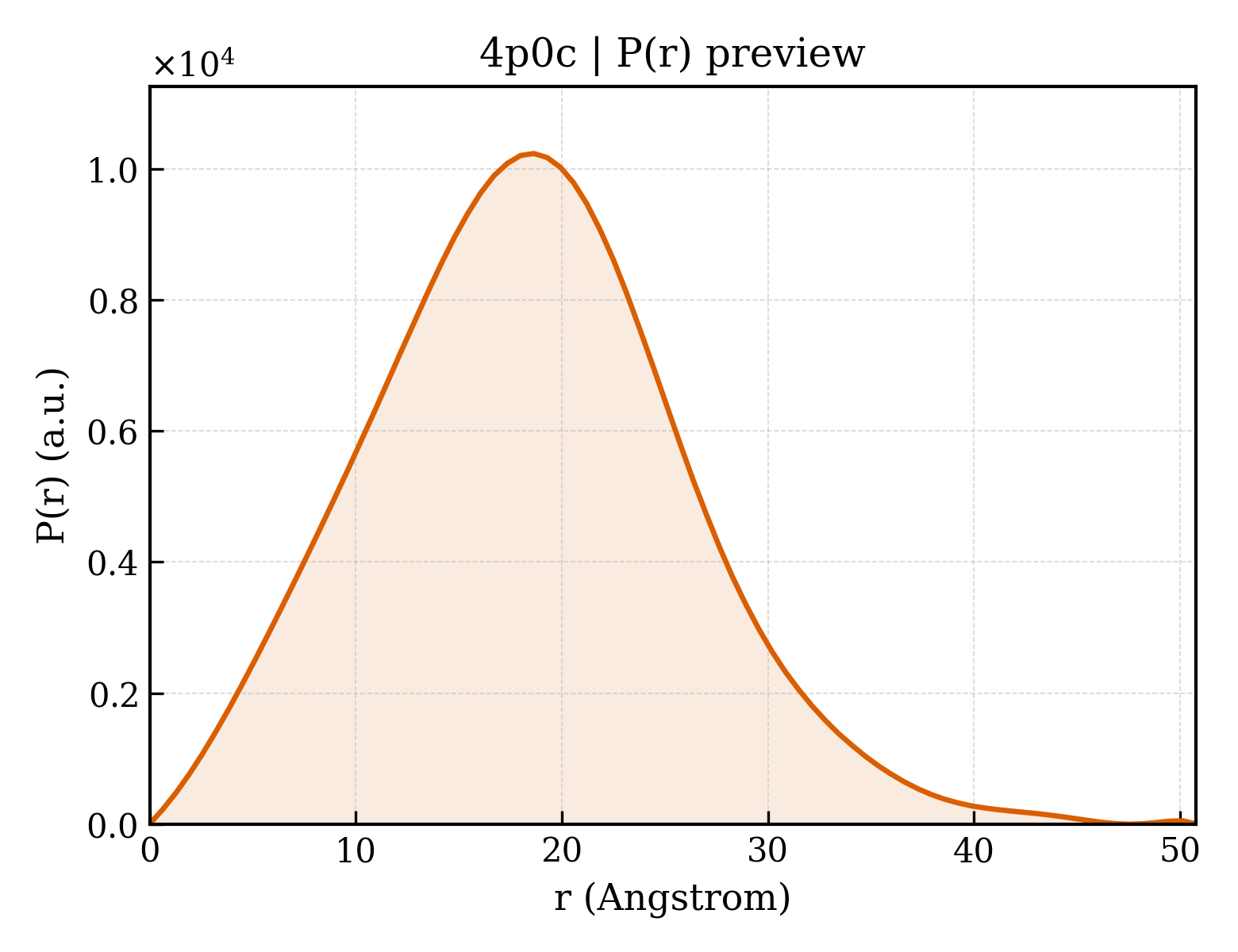

4p0c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.13 Å
Rg (electron density)	12.71 Å
Total Rg	14.03 Å
Atom count	1362
Residues	88
Excluded volume	12009 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4p0c__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Na(+)/H(+) exchange regulatory cofactor NHE-RF2/Lysophosphatidic acid receptor 2 chimeric protein
Molecular weight formula_weight	9801.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1524

MPRLCRLVRGEQGYGFHLHGEKGRRGQFIRRVEPGSPAEAAALRAGDRLVEVNGVNVEGETHHQVVQRIKAVEGQTRLLVVDQMDSTL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	THIOCYANATE ION
Molecular weight formula_weight	58.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	141

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4p0ca1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d4p0ca2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4p0cA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	26.360 Å
Unit-cell length b length_b	40.250 Å
Unit-cell length c length_c	37.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.339 Å
Low-resolution limit resolution_low	24.208 Å
R factor r_factor	0.1466
R_work r_work	0.1449
R_free r_free	0.1769
