SAXSdb — 2hev

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor ligand superfamily member 4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain F； UniProt 51–183	Fragment：extracellular domain (residues 51-183) Mutation：N90D, N114D	Tumor necrosis factor receptor superfamily member 4 × 3 （P43489） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；8% PEG 20000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.41 Å R-free 0.251

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	TNFL4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain F； PDBConstruct 5–137； UniProt 51–183

Tumor necrosis factor receptor superfamily member 4

Homo sapiens

UniProt P43489

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain R； UniProt 29–170	Fragment：extracellular domain (residues 29-170)	Tumor necrosis factor ligand superfamily member 4 × 3 （P23510） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；8% PEG 20000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.41 Å R-free 0.251

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HEV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain H 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain I 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain J 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain K 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain L 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain H 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain I 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain J 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain K 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain L 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain H 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain I 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain J 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain K 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE Chain L 262–266（5 aa） Fragment：TRAF-BINDING SEQUENCE	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
2HEY Crystal structure of murine OX40L bound to human OX40 Deposited 2006-06-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 29–170（142 aa） Fragment：extracellular domain (residues 29-170)	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M NaCl, 1.4 M Ammonium Sulfate, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.00 Å R-free 0.247
2HEY Crystal structure of murine OX40L bound to human OX40 Deposited 2006-06-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain T 29–170（142 aa） Fragment：extracellular domain (residues 29-170)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M NaCl, 1.4 M Ammonium Sulfate, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.00 Å R-free 0.247
6OGX Ternary complex of OX40R (TNFRSF4) bound to Fab1 and Fab2 Deposited 2019-04-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 29–170（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1 M Tris pH 8.5, 1.5 M D-L malic acid pH 7.0, 0.15 mM dimethylethylammonium propane sulfate (NDSB-195)	Resolution 2.77 Å R-free 0.254
6OKM Human OX40R (TNFRSF4) bound to Fab 3C8 Deposited 2019-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 29–170（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K	Resolution 2.10 Å R-free 0.238
6OKN OX40R (TNFRSF4) bound to Fab 1A7 Deposited 2019-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 29–170（142 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；tbd	Resolution 3.25 Å R-free 0.228
6OKN OX40R (TNFRSF4) bound to Fab 1A7 Deposited 2019-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 29–170（142 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；tbd	Resolution 3.25 Å R-free 0.228
7YK4 ox40-antibody Deposited 2022-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–170（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M potassium sodium tartrate, 14% PEG 3350, 10% glycerol	Resolution 2.70 Å R-free 0.298
7YK4 ox40-antibody Deposited 2022-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 29–170（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M potassium sodium tartrate, 14% PEG 3350, 10% glycerol	Resolution 2.70 Å R-free 0.298
8AG1 Crystal structure of a novel OX40 antibody Deposited 2022-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–170（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5；293 K；0.1m CITRATE, PH5.6, 2% TACSIMATE, 16% PEG3350	Resolution 3.30 Å R-free 0.268
8AG1 Crystal structure of a novel OX40 antibody Deposited 2022-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain a 29–170（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5；293 K；0.1m CITRATE, PH5.6, 2% TACSIMATE, 16% PEG3350	Resolution 3.30 Å R-free 0.268

7 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNR4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 5–146； UniProt 29–170

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hev
Deposition date deposition_date	2006-06-22
Structure title title	Crystal structure of the complex between OX40L and OX40
Keywords keywords	cytokine, receptor-ligand complex, TNFSF, TNFRSF; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.52 Å
Radius of gyration Rg (electron density) rg_electron	23.71 Å
Forward intensity I(0) i0	17561600.00
Molecular weight molecular_weight	30052.0 kDa
Excluded volume excluded_volume	36904 Å³
Envelope volume envelope_volume	50370 Å³
Hydration-shell volume shell_volume	18950 Å³
Envelope diameter envelope_diameter	90.8 Å
Shell Rg shell_rg	28.76 Å
Envelope Rg envelope_rg	24.12 Å
Shape Rg shape_rg	23.70 Å
Total Rg total_rg	24.41 Å
Total atoms total_atoms	2095
Residues n_residues	266
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	87.1 Å
Rg (real space) rg_real	24.67 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	1.7560e+07
I(0) uncertainty (real space) i0_real_error	2.6000e+05
Rg (reciprocal space) rg_reciprocal	24.64 Å
I(0) (reciprocal space) i0_reciprocal	17560000.0000
Solution quality estimate total_estimate	0.8534
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.7 Å
Skewness Skewness skewness	0.445
Kurtosis Kurtosis kurtosis	-0.142
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1339000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.794; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.726; Smooth: 0.982

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Tumor necrosis factor ligand superfamily member 4
Molecular weight formula_weight	15858.0 kDa
Mutation mutation	N90D, N114D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F
Atom count atom_count	2182

GSHMQVSHRYPRIQSIKVQFTEYKKEKGFILTSQKEDEIMKVQDNSVIINCDGFYLISLKGYFSQEVDISLHYQKDEEPLFQLKKVRSVNSLMVASLTYKDKVYLNVTTDNTSLDDFHVNGGELILIHQNPGEFCVL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Tumor necrosis factor receptor superfamily member 4
Molecular weight formula_weight	15808.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

GSHMLHCVGDTYPSNDRCCHECRPGNGMVSRCSRSQNTVCRPCGPGFYNDVVSSKPCKPCTWCNLRSGSERKQLCTATQDTVCRCRAGTQPLDSYKPGVDCAPCPPGHFSPGDNQACKPWTNCTLAGKHTLQPASNSSDAICEDRD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	87

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2hevf1
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

Domain ID domain_id	d2hevr1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d2hevr2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d2hevr3
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

CATH v4.4 (3 domains)

Domain ID domain_id	2hevF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2hevR01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	2hevR02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	111.903 Å
Unit-cell length b length_b	111.903 Å
Unit-cell length c length_c	233.238 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.410 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2125
R_work r_work	0.2082
R_free r_free	0.2511

fit	/app/data/saxs_computation/he/2hev/2hev.fit
pddf	/app/data/pr_computation/he/2hev/2hev.pr.out
profile	/app/data/saxs_computation/he/2hev/2hev.dat

Crystal structure of the complex between OX40L and OX40

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor ligand superfamily member 4

State in the Current Structure

Other States of the Same Protein in the Database

Tumor necrosis factor receptor superfamily member 4

State in the Current Structure

Other States of the Same Protein in the Database

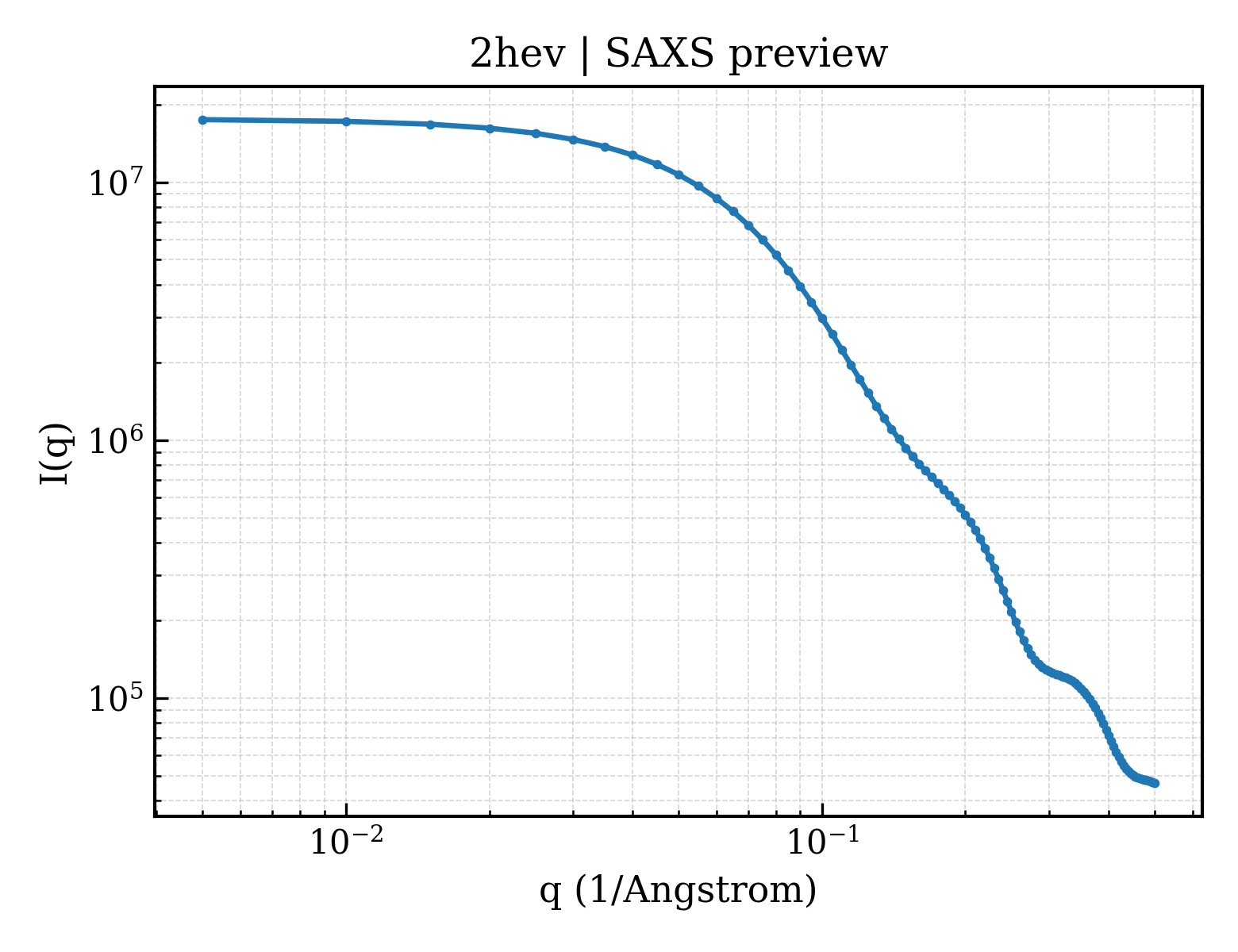

SAXS scattering curve SAXS Profile

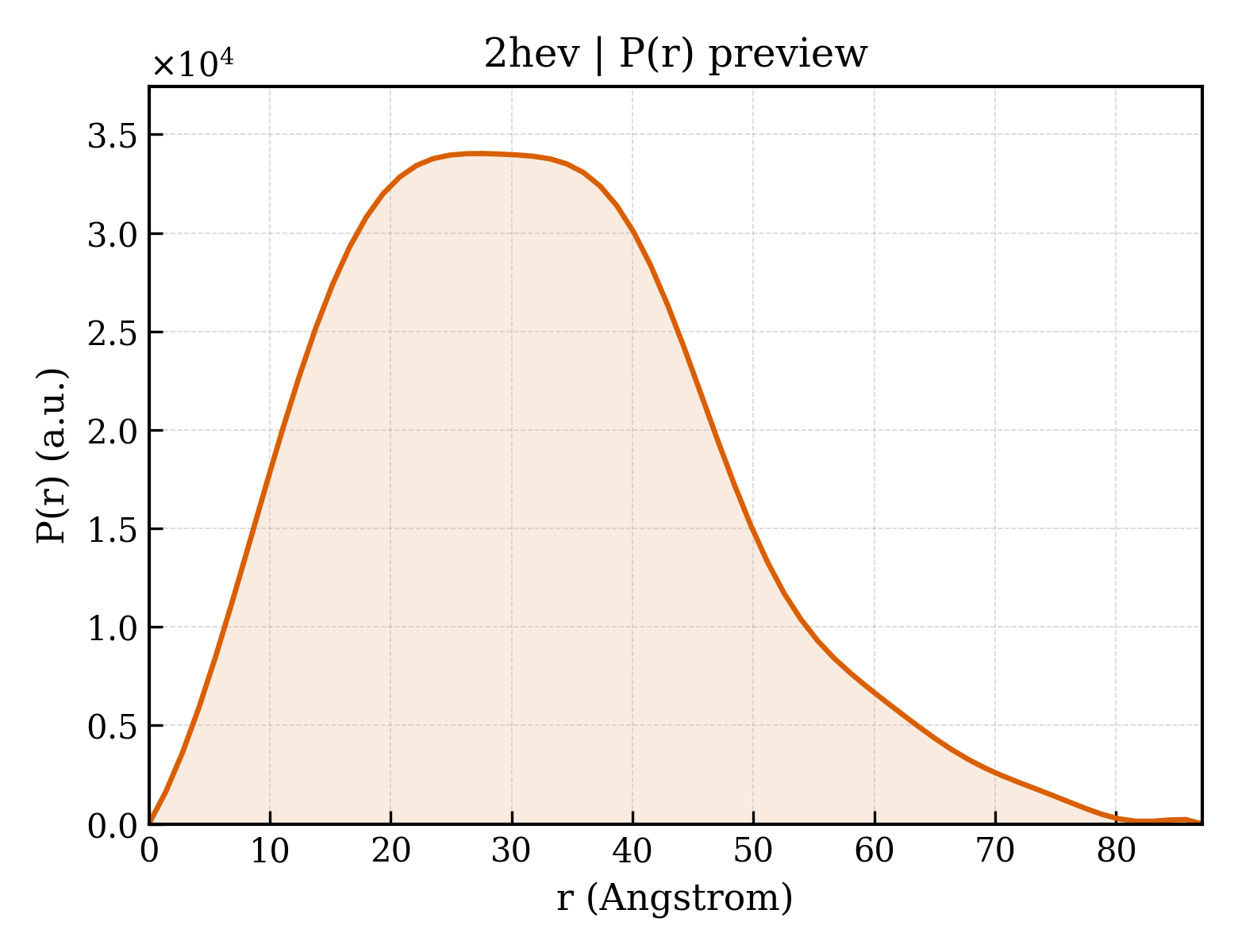

P(r) Distance Distribution P(r) Distribution
