SAXSdb — 2hh7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein CsoR

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	COPPER (I) ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	COPPER (I) ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P71543_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–119； UniProt 1–119

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hh7
Deposition date deposition_date	2006-06-27
Structure title title	Crystal Structure of Cu(I) bound CsoR from Mycobacterium tuberculosis.
Keywords keywords	4-helix bundle, UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hh7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

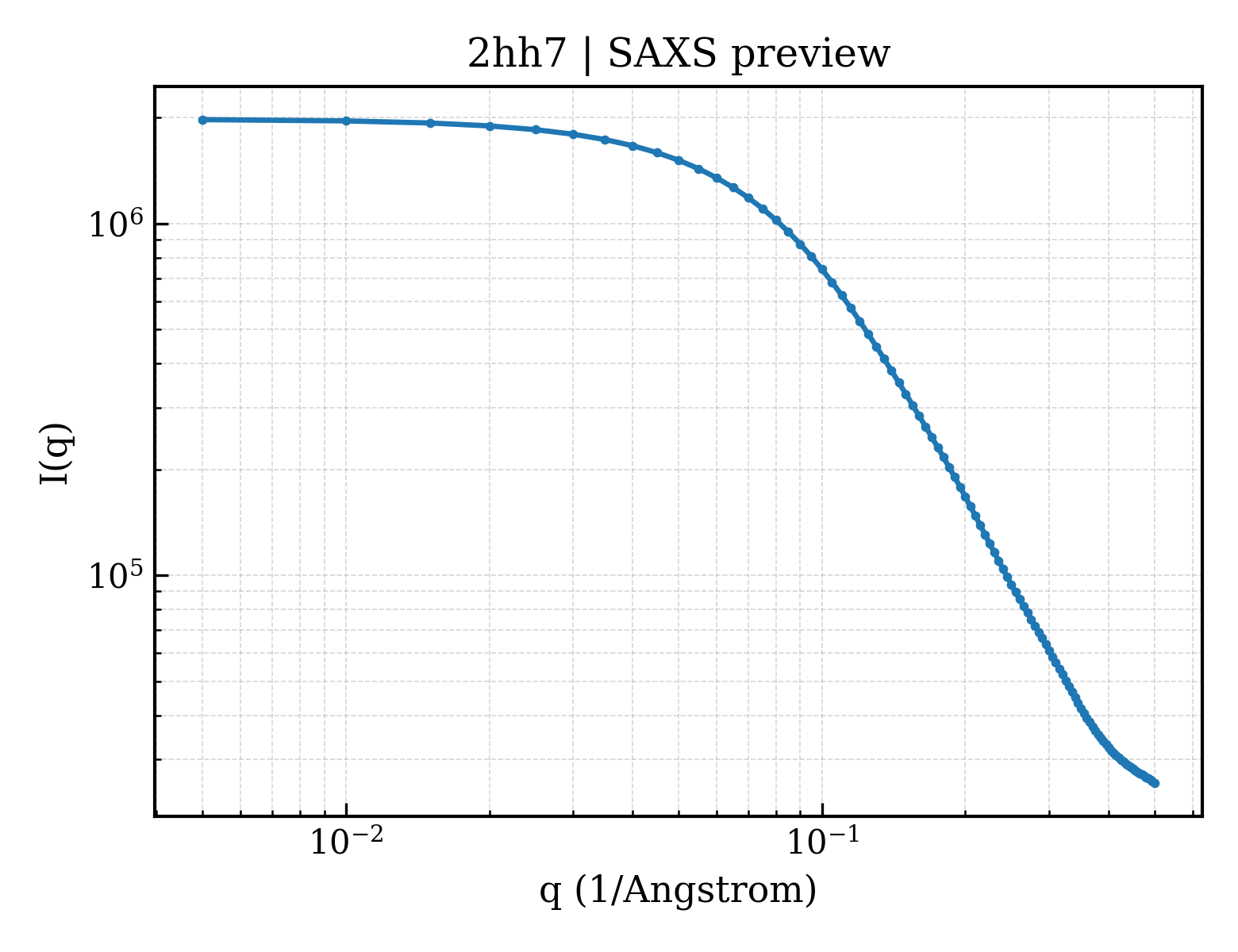

2hh7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

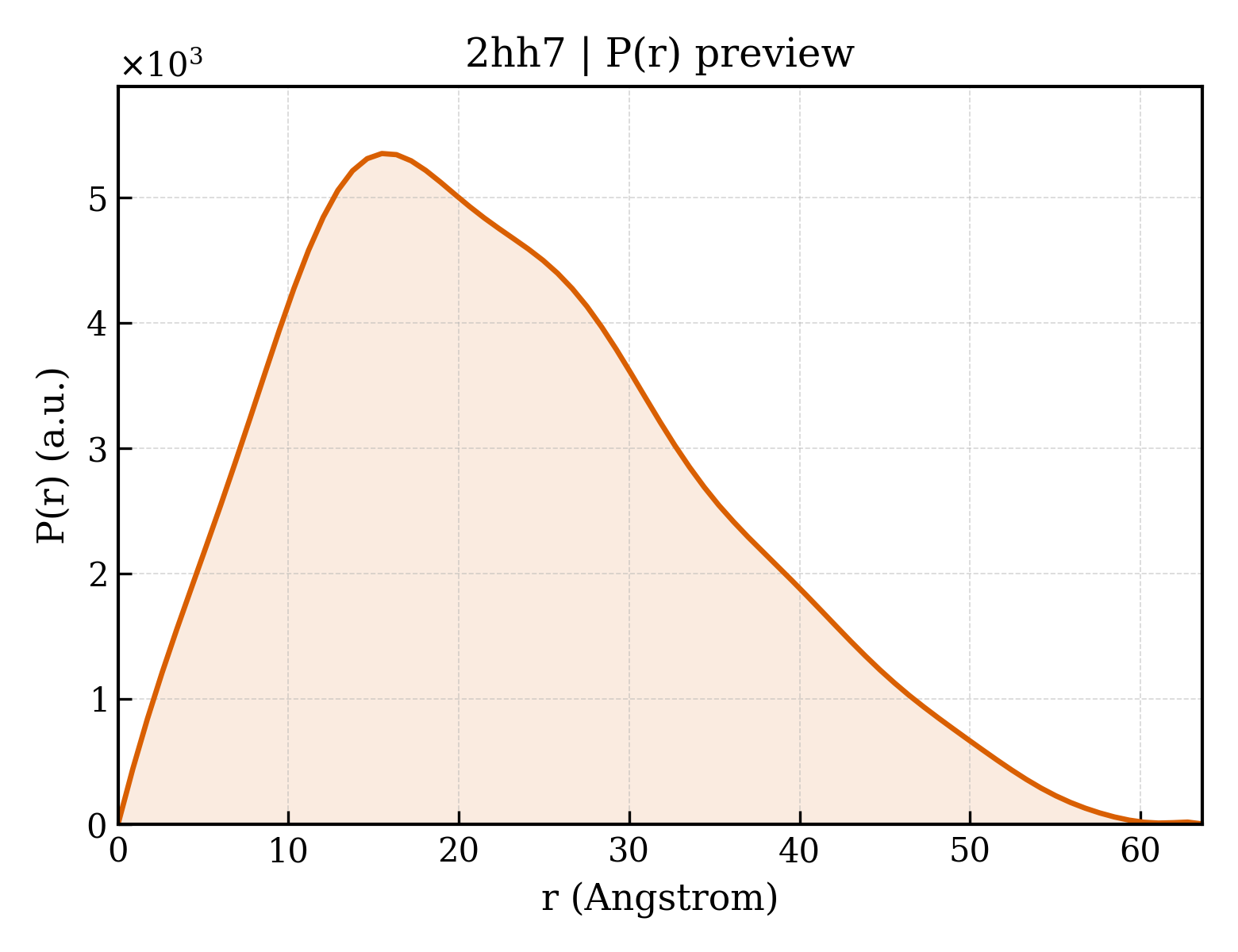

2hh7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.58 Å
Rg (electron density)	19.02 Å
Total Rg	19.66 Å
Atom count	1318
Residues	170
Excluded volume	23504 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hh7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hh7__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein CsoR
Molecular weight formula_weight	12817.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	679

MSKELTAKKRAALNRLKTVRGHLDGIVRMLESDAYCVDVMKQISAVQSSLERANRVMLHNHLETCFSTAVLDGHGQAAIEELIDAVKFTPALTGPHARLGGAAVGESATEEPMPDASNM

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COPPER (I) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2hh7A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	1000 — Metal-sensitive repressor, helix protomer

▶

Unit-cell length a length_a	91.059 Å
Unit-cell length b length_b	91.059 Å
Unit-cell length c length_c	46.779 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	2.550 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2310
R_free r_free	0.2790

Crystal Structure of Cu(I) bound CsoR from Mycobacterium tuberculosis.
