SAXSdb — 2hhb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN (DEOXY) (ALPHA CHAIN)

OrganismNot specified

UniProt P01922

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–141 Chain C； UniProt 1–141	Not recorded	HEMOGLOBIN (DEOXY) (BETA CHAIN) × 2 （P02023） HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.74 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HHB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HDB ANALYSIS OF THE CRYSTAL STRUCTURE, MOLECULAR MODELING AND INFRARED SPECTROSCOPY OF THE DISTAL BETA-HEME POCKET VALINE67(E11)-THREONINE MUTATION OF HEMOGLOBIN Deposited 1995-04-14	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Mutation：CHAIN B, D, V67T Mutation：CHAIN B, D, V67T	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1NQP Crystal structure of Human hemoglobin E at 1.73 A resolution Deposited 2003-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain not uniquely mapped Reference range not declared Chain C 1–141（141 aa）	Not recorded	CYN CYANIDE ION × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；PEG and Glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.73 Å R-free 0.211
1XYE T-to-THigh Transitions in Human Hemoglobin: alpha Y42A deoxy low salt Deposited 2004-11-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Mutation：V1M, Y42A Mutation：V1M, Y42A	HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 7；298 K；10% PEG 6000, 10 mM potassium phosphate, 100 mM potassium chloride, 3 mM sodium dithionite, 10 mg/ml Hb, pH 7.0, batch, temperature 298K	Resolution 2.13 Å R-free 0.241
1XZ2 wild-type hemoglobin deoxy no-salt Deposited 2004-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 7；298 K；12% PEG 1450, 10 mg/ml Hb, pH 7.0, batch, temperature 298.0K	Resolution 1.90 Å R-free 0.201
1XZ4 Intersubunit Interactions Associated with Tyr42alpha Stabilize the Quaternary-T Tetramer but are not Major Quaternary Constraints in Deoxyhemoglobin: alphaY42A deoxyhemoglobin no-salt Deposited 2004-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Mutation：V1M, Y42A Mutation：V1M, Y42A	HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 4.6；298 K；15% PEG 4000, 50 mM sodium acetate, 100 mM ammonium acetate, 3 mM sodium dithionite, 20 mg/ml Hb, pH 4.6, batch, temperature 298K	Resolution 2.00 Å R-free 0.224
2HHD OXYGEN AFFINITY MODULATION BY THE N-TERMINI OF THE BETA-CHAINS IN HUMAN AND BOVINE HEMOGLOBIN Deposited 1994-09-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
3HHB THE CRYSTAL STRUCTURE OF HUMAN DEOXYHAEMOGLOBIN AT 1.74 ANGSTROMS RESOLUTION Deposited 1984-03-07	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa） Chain C 1–141（141 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.74 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HBA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 1–141 Author chain C； PDBConstruct 1–141； UniProt 1–141

HEMOGLOBIN (DEOXY) (BETA CHAIN)

OrganismNot specified

UniProt P02023

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–146 Chain D； UniProt 1–146	Not recorded	HEMOGLOBIN (DEOXY) (ALPHA CHAIN) × 2 （P01922） HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.74 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HHB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BUW CRYSTAL STRUCTURE OF S-NITROSO-NITROSYL HUMAN HEMOGLOBIN A Deposited 1998-09-06	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–146（146 aa） Chain D 1–146（146 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 NO NITRIC OXIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1% PROTEIN 100 MM SODIUM CACODYLATE, PH 5.8 16% PEG 6000	Resolution 1.90 Å R-free 0.244
1HDB ANALYSIS OF THE CRYSTAL STRUCTURE, MOLECULAR MODELING AND INFRARED SPECTROSCOPY OF THE DISTAL BETA-HEME POCKET VALINE67(E11)-THREONINE MUTATION OF HEMOGLOBIN Deposited 1995-04-14	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–146（146 aa） Chain D 1–146（146 aa）	Mutation：CHAIN B, D, V67T Mutation：CHAIN B, D, V67T	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1NQP Crystal structure of Human hemoglobin E at 1.73 A resolution Deposited 2003-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain not uniquely mapped Reference range not declared Chain D 1–146（146 aa）	Not recorded	CYN CYANIDE ION × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；PEG and Glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.73 Å R-free 0.211
3HHB THE CRYSTAL STRUCTURE OF HUMAN DEOXYHAEMOGLOBIN AT 1.74 ANGSTROMS RESOLUTION Deposited 1984-03-07	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–146（146 aa） Chain D 1–146（146 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.74 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HBB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–146； UniProt 1–146 Author chain D； PDBConstruct 1–146； UniProt 1–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hhb
Deposition date deposition_date	1984-03-07
Structure title title	THE CRYSTAL STRUCTURE OF HUMAN DEOXYHAEMOGLOBIN AT 1.74 ANGSTROMS RESOLUTION
Keywords keywords	OXYGEN TRANSPORT; OXYGEN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.83 Å
Radius of gyration Rg (electron density) rg_electron	23.53 Å
Forward intensity I(0) i0	63862500.00
Molecular weight molecular_weight	64517.0 kDa
Excluded volume excluded_volume	81569 Å³
Envelope volume envelope_volume	97126 Å³
Hydration-shell volume shell_volume	33037 Å³
Envelope diameter envelope_diameter	72.0 Å
Shell Rg shell_rg	31.58 Å
Envelope Rg envelope_rg	23.25 Å
Shape Rg shape_rg	23.52 Å
Total Rg total_rg	24.47 Å
Total atoms total_atoms	4558
Residues n_residues	574
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.1 Å
Rg (real space) rg_real	24.57 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	6.3860e+07
I(0) uncertainty (real space) i0_real_error	7.7380e+05
Rg (reciprocal space) rg_reciprocal	24.64 Å
I(0) (reciprocal space) i0_reciprocal	63860000.0000
Solution quality estimate total_estimate	0.9143
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.4 Å
Skewness Skewness skewness	0.002
Kurtosis Kurtosis kurtosis	-0.571
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14830000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HEMOGLOBIN (DEOXY) (ALPHA CHAIN)
Molecular weight formula_weight	15150.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4779

VLSPADKTNVKAAWGKVGAHAGEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGKKVADALTNAVAHVDDMPNALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHLPAEFTPAVHASLDKFLASVSTVLTSKYR

Entity 2 Entity 2 polymer

Description description	HEMOGLOBIN (DEOXY) (BETA CHAIN)
Molecular weight formula_weight	15890.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

VHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLGAFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVANALAHKYH

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	221

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2hhba_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d2hhbb_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d2hhbc_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d2hhbd_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

CATH v4.4 (4 domains)

Domain ID domain_id	2hhbA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	2hhbB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	2hhbC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	2hhbD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

▶

8. Citations (9)

The crystal structure of human deoxyhaemoglobin at 1.74 A resolution

J.Mol.Biol. (1984)

PMID: 6726807 · DOI: 10.1016/0022-2836(84)90472-8 PRIMARY

Stereochemistry of Iron in Deoxyhaemoglobin

Nature (1982)

Untitled

Haemoglobin and Myoglobin. Atlas of Molecular Structures in Biology (1981)

Regulation of Oxygen Affinity of Hemoglobin. Influence of Structure of the Globin on the Heme Iron

Annu.Rev.Biochem. (1979)

Three-Dimensional Fourier Synthesis of Human Deoxyhemoglobin at 2.5 Angstroms Resolution, I.X-Ray Analysis

J.Mol.Biol. (1976)

Three-Dimensional Fourier Synthesis of Human Deoxyhaemoglobin at 2.5 Angstroms Resolution, Refinement of the Atomic Model

J.Mol.Biol. (1975)

Untitled

Atlas of Protein Sequence and Structure (Data Section) (1972)

Untitled

Atlas of Protein Sequence and Structure (Data Section) (1972)

Three-Dimensional Fourier Synthesis of Human Deoxyhaemoglobin at 3.5 Angstroms Resolution

Nature (1970)

▶

Unit-cell length a length_a	63.150 Å
Unit-cell length b length_b	83.590 Å
Unit-cell length c length_c	53.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.740 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	0.1600
R_free r_free	—

fit	/app/data/saxs_computation/hh/2hhb/2hhb.fit
pddf	/app/data/pr_computation/hh/2hhb/2hhb.pr.out
profile	/app/data/saxs_computation/hh/2hhb/2hhb.dat

THE CRYSTAL STRUCTURE OF HUMAN DEOXYHAEMOGLOBIN AT 1.74 ANGSTROMS RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN (DEOXY) (ALPHA CHAIN)

State in the Current Structure

Other States of the Same Protein in the Database

HEMOGLOBIN (DEOXY) (BETA CHAIN)

State in the Current Structure

Other States of the Same Protein in the Database

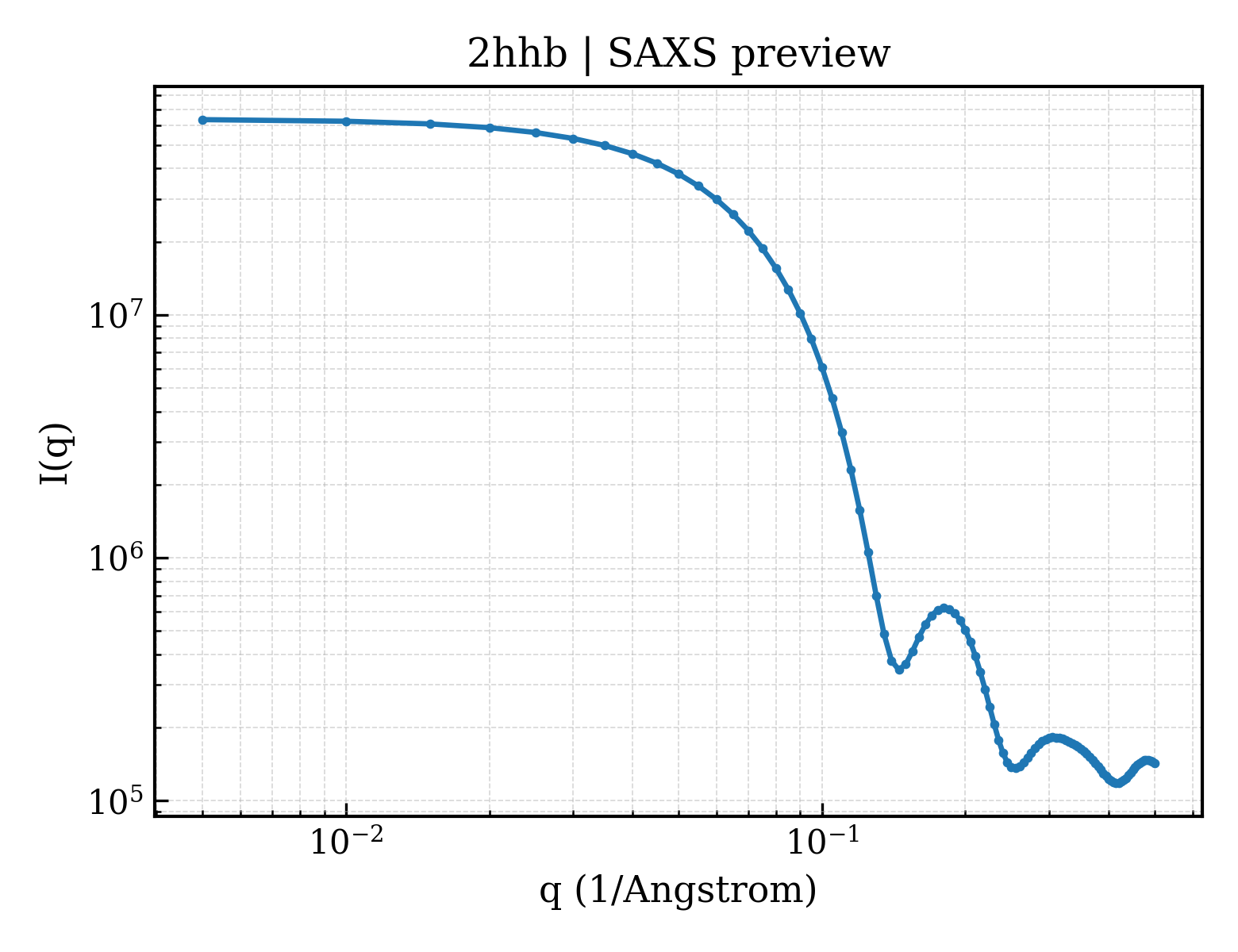

SAXS scattering curve SAXS Profile

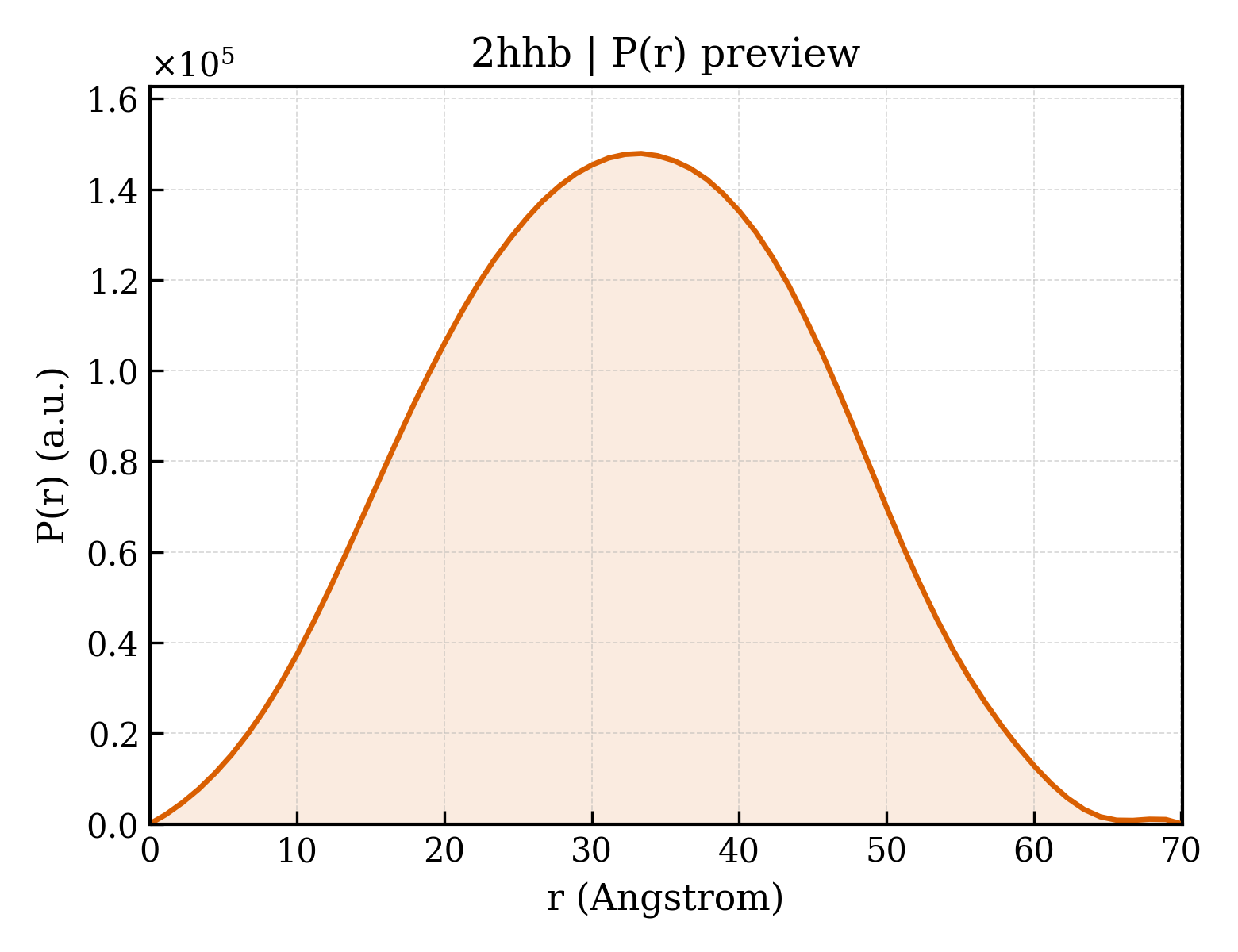

P(r) Distance Distribution P(r) Distribution
