2hjr

Crystal Structure of Cryptosporidium parvum malate dehydrogenase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Malate dehydrogenase

Cryptosporidium parvum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
10	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
11	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
12	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
13	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
14	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
15	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 ADENOSINE-5-DIPHOSPHORIBOSE × 2 water × 2	Consistent with protein count
7	Protein homooligomer	Homooligomer	Protein 4	CITRIC ACID × 4 ADENOSINE-5-DIPHOSPHORIBOSE × 4 water × 4	Consistent with protein count
8	Protein homooligomer	Homooligomer	Protein 4	CITRIC ACID × 4 ADENOSINE-5-DIPHOSPHORIBOSE × 4 water × 4	Consistent with protein count
9	Protein homooligomer	Homooligomer	Protein 4	CITRIC ACID × 4 ADENOSINE-5-DIPHOSPHORIBOSE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5CYZ3_CRYPV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–328； UniProt 1–328 Author chain B； PDBConstruct 1–328； UniProt 1–328 Author chain C； PDBConstruct 1–328； UniProt 1–328 Author chain D； PDBConstruct 1–328； UniProt 1–328 Author chain E； PDBConstruct 1–328； UniProt 1–328 Author chain F； PDBConstruct 1–328； UniProt 1–328 Author chain G； PDBConstruct 1–328； UniProt 1–328 Author chain H； PDBConstruct 1–328； UniProt 1–328 Author chain I； PDBConstruct 1–328； UniProt 1–328 Author chain J； PDBConstruct 1–328； UniProt 1–328 Author chain K； PDBConstruct 1–328； UniProt 1–328 Author chain L； PDBConstruct 1–328； UniProt 1–328

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hjr
Deposition date deposition_date	2006-06-30
Structure title title	Crystal Structure of Cryptosporidium parvum malate dehydrogenase
Keywords keywords	malate dehydrogenase, malaria, Cryptosporidium parvum, Structural Genomics, Structural Genomics Consortium, SGC, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hjr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hjr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

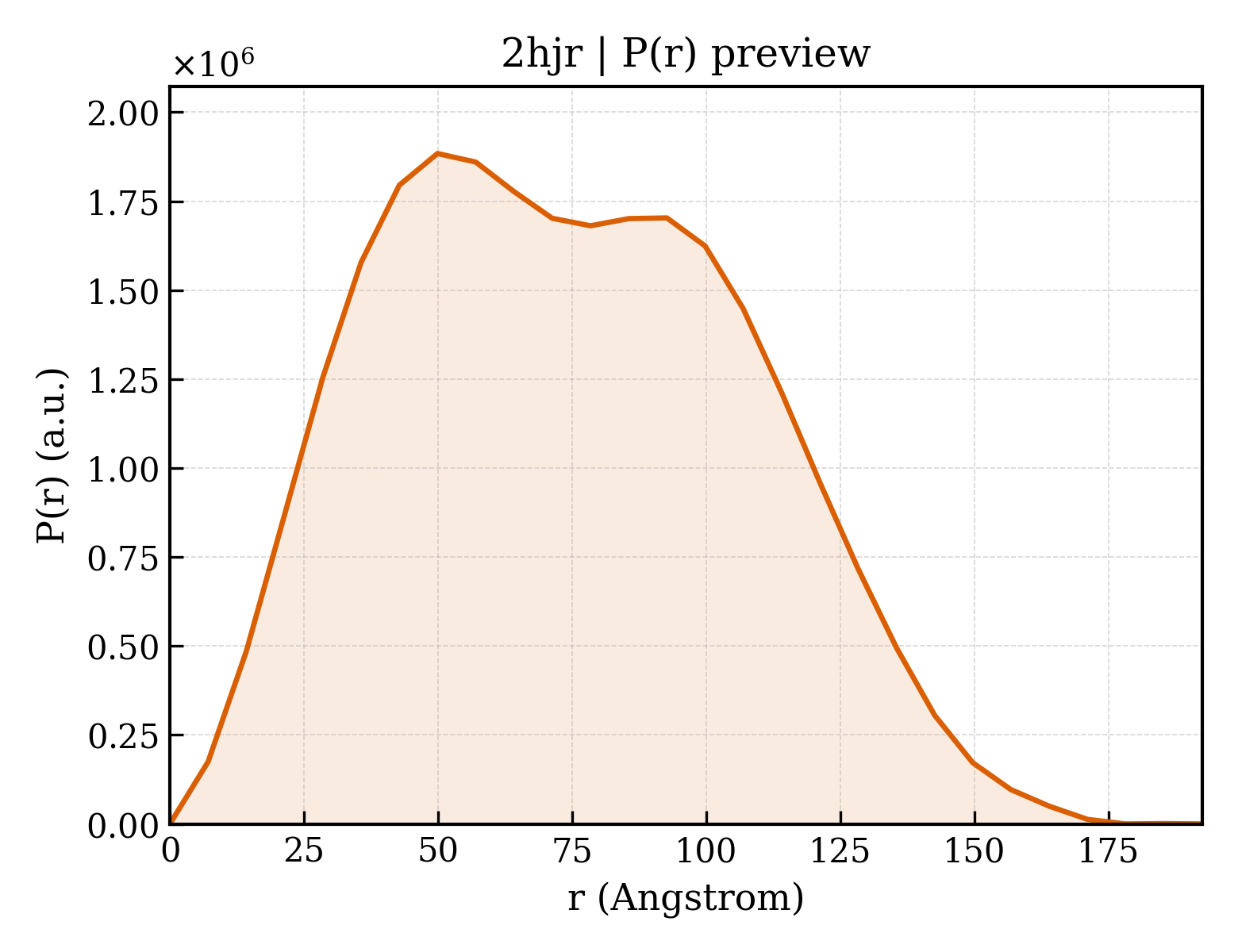

2hjr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.96 Å
Rg (electron density)	26.94 Å
Total Rg	27.64 Å
Atom count	4770
Residues	627
Excluded volume	85833 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hjr__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hjr__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2hjr__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2hjr__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`2hjr__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`2hjr__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`2hjr__assembly_7__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`2hjr__assembly_8__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
9	1	`2hjr__assembly_9__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
10	1	`2hjr__assembly_10__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
11	1	`2hjr__assembly_11__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
12	1	`2hjr__assembly_12__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
13	1	`2hjr__assembly_13__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
14	1	`2hjr__assembly_14__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
15	1	`2hjr__assembly_15__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Malate dehydrogenase
Molecular weight formula_weight	35113.6 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	29965

LKKISYKYNTVIMRKKISIIGAGQIGSTIALLLGQKDLGDVYMFDIIEGVPQGKALDLNHCMALIGSPAKIFGENNYEYLQNSDVVIITAGVPRKPNMTRSDLLTVNAKIVGSVAENVGKYCPNAFVICITNPLDAMVYYFKEKSGIPANKVCGMSGVLDSARFRCNLSRALGVKPSDVSAIVVGGHGDEMIPLTSSVTIGGILLSDFVEQGKITHSQINEIIKKTAFGGGEIVELLKTGSAFYAPAASAVAMAQAYLKDSKSVLVCSTYLTGQYNVNNLFVGVPVVIGKNGIEDVVIVNLSDDEKSLFSKSVESIQNLVQDLKSLNL

Source Source

Source organism organism	Cryptosporidium parvum
NCBI taxonomy ID ncbi_taxonomy_id	5807
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5-DIPHOSPHORIBOSE
Molecular weight formula_weight	559.3 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1337

▼

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d2hjra1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjra2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjre1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjre2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjri1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjri2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrj1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrj2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrk1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrk2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

Domain ID domain_id	d2hjrl1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.0 — automated matches

Domain ID domain_id	d2hjrl2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.0 — automated matches

CATH v4.4 (24 domains)

Domain ID domain_id	2hjrA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrE02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrF02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrG02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrH02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrI01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrI02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrJ01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrJ02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrK01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrK02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2hjrL01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2hjrL02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

▶

Unit-cell length a length_a	171.887 Å
Unit-cell length b length_b	171.887 Å
Unit-cell length c length_c	135.606 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	19.830 Å
R factor r_factor	0.2005
R_work r_work	0.1980
R_free r_free	0.2475

Crystal Structure of Cryptosporidium parvum malate dehydrogenase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Malate dehydrogenase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hjr__assembly_1__model_1

2hjr__assembly_1__model_1 | I(q)

2hjr__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)

Crystal Structure of Cryptosporidium parvum malate dehydrogenase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Malate dehydrogenase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hjr__assembly_1__model_1

2hjr__assembly_1__model_1 | I(q)

2hjr__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)
