2hk8
Crystal structure of shikimate dehydrogenase from aquifex aeolicus at 2.35 angstrom resolution
SAXS 散射曲线 SAXS Profile

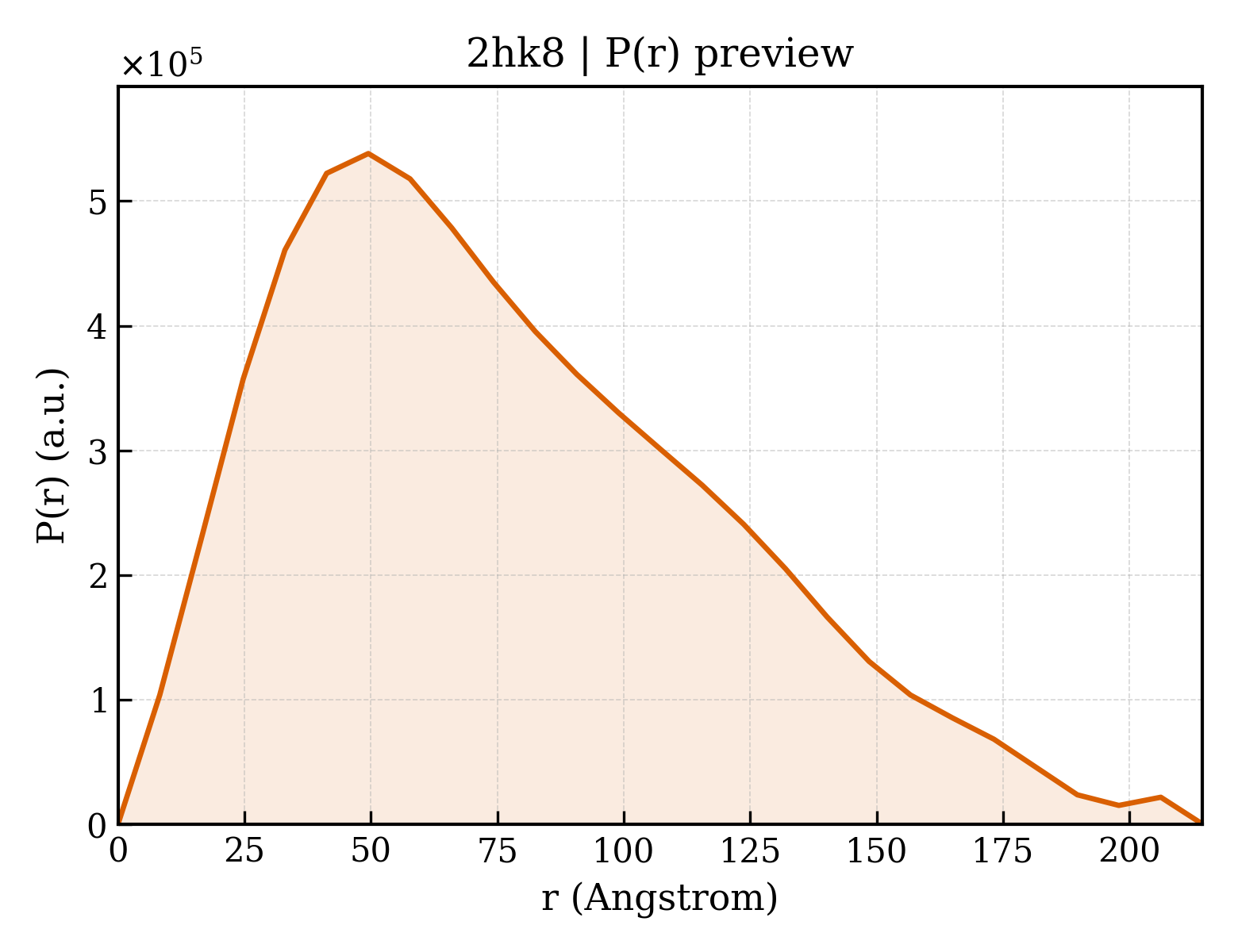

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2hk8 |
| 沉积日期 deposition_date | 2006-07-03 |
| 结构标题 title | Crystal structure of shikimate dehydrogenase from aquifex aeolicus at 2.35 angstrom resolution |
| 关键词 keywords | shikimate pathway, shikimate dehydrogenase, drug design, oxidoreductase; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 61.01 Å |
| 回转半径 Rg (电子) rg_electron | 62.34 Å |
| 零角强度 I(0) i0 | 664096000.00 |
| 分子量 molecular_weight | 237480.0 kDa |
| 排除体积 excluded_volume | 306580 ų |
| 包络体积 envelope_volume | 439190 ų |
| 水化壳体积 shell_volume | 65386 ų |
| 包络直径 envelope_diameter | 231.4 Å |
| 壳层 Rg shell_rg | 53.73 Å |
| 包络 Rg envelope_rg | 62.14 Å |
| 形状 Rg shape_rg | 62.32 Å |
| 总 Rg total_rg | 62.17 Å |
| 总原子数 total_atoms | 16797 |
| 残基数 n_residues | 2125 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 214.4 Å |
| Rg (实空间) rg_real | 62.04 Å |
| Rg 误差 (实空间) rg_real_error | 2.58 Å |
| I(0) (实空间) i0_real | 6.6400e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.5760e+07 |
| Rg (倒空间) rg_reciprocal | 60.10 Å |
| I(0) (倒空间) i0_reciprocal | 662000000.0000 |
| 解质量估计 total_estimate | 0.7912 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 49.5 Å |
| 偏度 Skewness skewness | 0.612 |
| 峰度 Kurtosis kurtosis | -0.240 |
| 角度范围 angular_range | — – 0.1300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0003 |
| 最高正则化参数 α highest_alpha | 31590000.0000 |
| 实空间数据点数 n_real_points | 27 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.849; Smooth: 0.368 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 32 domains
SCOP 2.08 (16 domains)
| 结构域编号 domain_id | d2hk8a1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8a2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8b1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8b2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8c1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8c2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8d1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8d2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8e1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8e2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8f1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8f2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8g1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8g2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d2hk8h1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.58 — Aminoacid dehydrogenase-like, N-terminal domain |
| 超家族 Superfamily superfamily | c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain |
| 家族 Family family | c.58.1.5 — Shikimate dehydrogenase-like |
| 结构域编号 domain_id | d2hk8h2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain |
CATH v4.4 (16 domains)
| 结构域编号 domain_id | 2hk8A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8C01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8C02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8D01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8D02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8E01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8E02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8F01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8F02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8G01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8G02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 2hk8H01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10860 — Leucine Dehydrogenase, chain A, domain 1 |
| 结构域编号 domain_id | 2hk8H02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
