SAXSdb — 2hke

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hke
沉积日期 deposition_date	2006-07-04
结构标题 title	Mevalonate diphosphate decarboxylase from Trypanosoma brucei
关键词 keywords	mevalonate diphosphate decarboxylase, diphosphomevalonate decarboxylase, decarboxylase, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.59 Å
回转半径 Rg (电子) rg_electron	31.32 Å
零角强度 I(0) i0	110255000.00
分子量 molecular_weight	83569.0 kDa
排除体积 excluded_volume	104760 Å³
包络体积 envelope_volume	128550 Å³
水化壳体积 shell_volume	35735 Å³
包络直径 envelope_diameter	121.4 Å
壳层 Rg shell_rg	36.34 Å
包络 Rg envelope_rg	31.57 Å
形状 Rg shape_rg	31.30 Å
总 Rg total_rg	31.80 Å
总原子数 total_atoms	5843
残基数 n_residues	753
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	115.3 Å
Rg (实空间) rg_real	31.88 Å
Rg 误差 (实空间) rg_real_error	1.22 Å
I(0) (实空间) i0_real	1.1030e+08
I(0) 误差 (实空间) i0_real_error	1.8770e+06
Rg (倒空间) rg_reciprocal	31.76 Å
I(0) (倒空间) i0_reciprocal	110200000.0000
解质量估计 total_estimate	0.6316
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.3 Å
偏度 Skewness skewness	0.607
峰度 Kurtosis kurtosis	0.027
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24370000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.640; Stabil: 1.000; Sysdev: 0.169; Positv: 1.000; Valcen: 0.837; Smooth: 0.942

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Diphosphomevalonate decarboxylase, putative
分子量 formula_weight	41945.3 kDa
EC 编号 ec_number	4.1.1.33
突变 mutation	D92E
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6562

MSDQCVTVEAPINIAFIKYWGKREGGETLILPTNDSFSITLSASPFRSKTSVELRDDIETDTLRLNGTEVDVGKTPRVQSMLLHLRSTCPEELKNKKVNIVSENNFPTAAGMASSASGYCAMSAALIRAFKSTTNVSMLARLGSGSACRSAFGGFVIWNKGEKPDGSDCVATQFVDETHWPEIQVMCAVLKGAQKDVSSTKGMQQSLKTSPLMKKRISETVPERMKIASRAIKARDFATFAEIAMLESDDLQEICATTEPKITYATEDSYAMIRLVKAYNAKKGRTALAYTFDAGANCFLFVLKEDLPEAVAMLMEHFPTPFEKFFFGDRELLEKVKVVSLPDEYKKLIDHPKKPFEMLLQSPVGCGVKYLGPSESLIPP

来源 Source

来源生物 organism	Trypanosoma brucei
NCBI 分类编号 ncbi_taxonomy_id	5691
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	712

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2hkea1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.0 — automated matches

结构域编号 domain_id	d2hkea2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.26 — GHMP Kinase, C-terminal domain
家族 Family family	d.58.26.0 — automated matches

结构域编号 domain_id	d2hkeb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.0 — automated matches

结构域编号 domain_id	d2hkeb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.26 — GHMP Kinase, C-terminal domain
家族 Family family	d.58.26.0 — automated matches

CATH v4.4 (4 domains)

结构域编号 domain_id	2hkeA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hkeA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	890 — GHMP kinase, C-terminal domain

结构域编号 domain_id	2hkeB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hkeB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	890 — GHMP kinase, C-terminal domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	51.463 Å
晶胞边长 b length_b	168.666 Å
晶胞边长 c length_c	54.850 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	118.78 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	42.180 Å
R 因子 r_factor	0.1680
R_work r_work	0.1660
R_free r_free	0.2080

fit	/app/data/saxs_computation/hk/2hke/2hke.fit
pddf	/app/data/pr_computation/hk/2hke/2hke.pr.out
profile	/app/data/saxs_computation/hk/2hke/2hke.dat

Mevalonate diphosphate decarboxylase from Trypanosoma brucei

SAXS 散射曲线 SAXS Profile

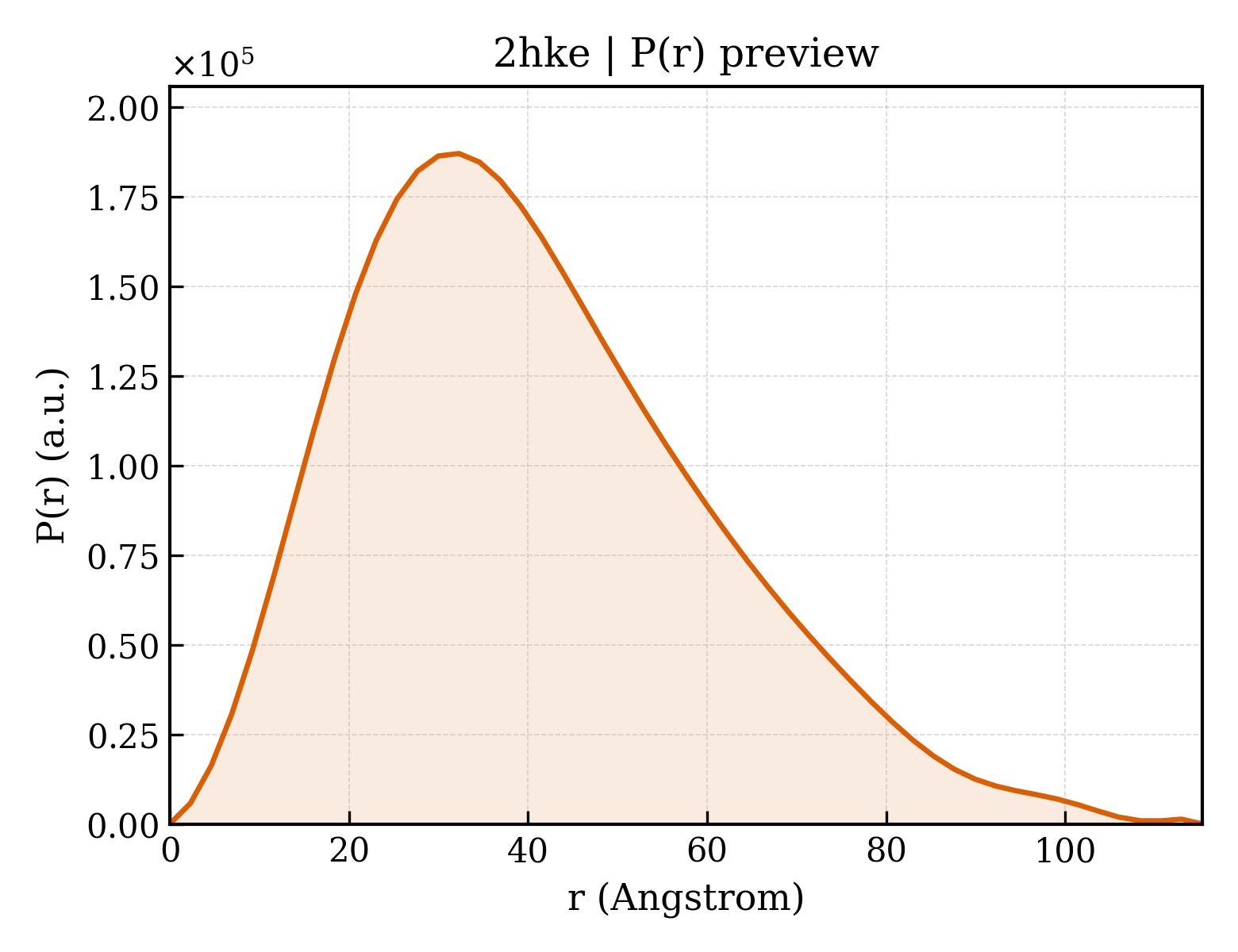

P(r) 距离分布 P(r) Distribution
