Ovis aries
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q91WY9_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 5–100； UniProt 1–96 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2hlr |
| Deposition date deposition_date | 2006-07-10 |
| Structure title title | Crystal Structure of the Extracellular Domain of the Type II BMP Receptor |
| Keywords keywords | three-finger toxin, bmp receptor, tgf-beta, TRANSFERASE; TRANSFERASE |
| Experimental Method method | X-RAY DIFFRACTION |

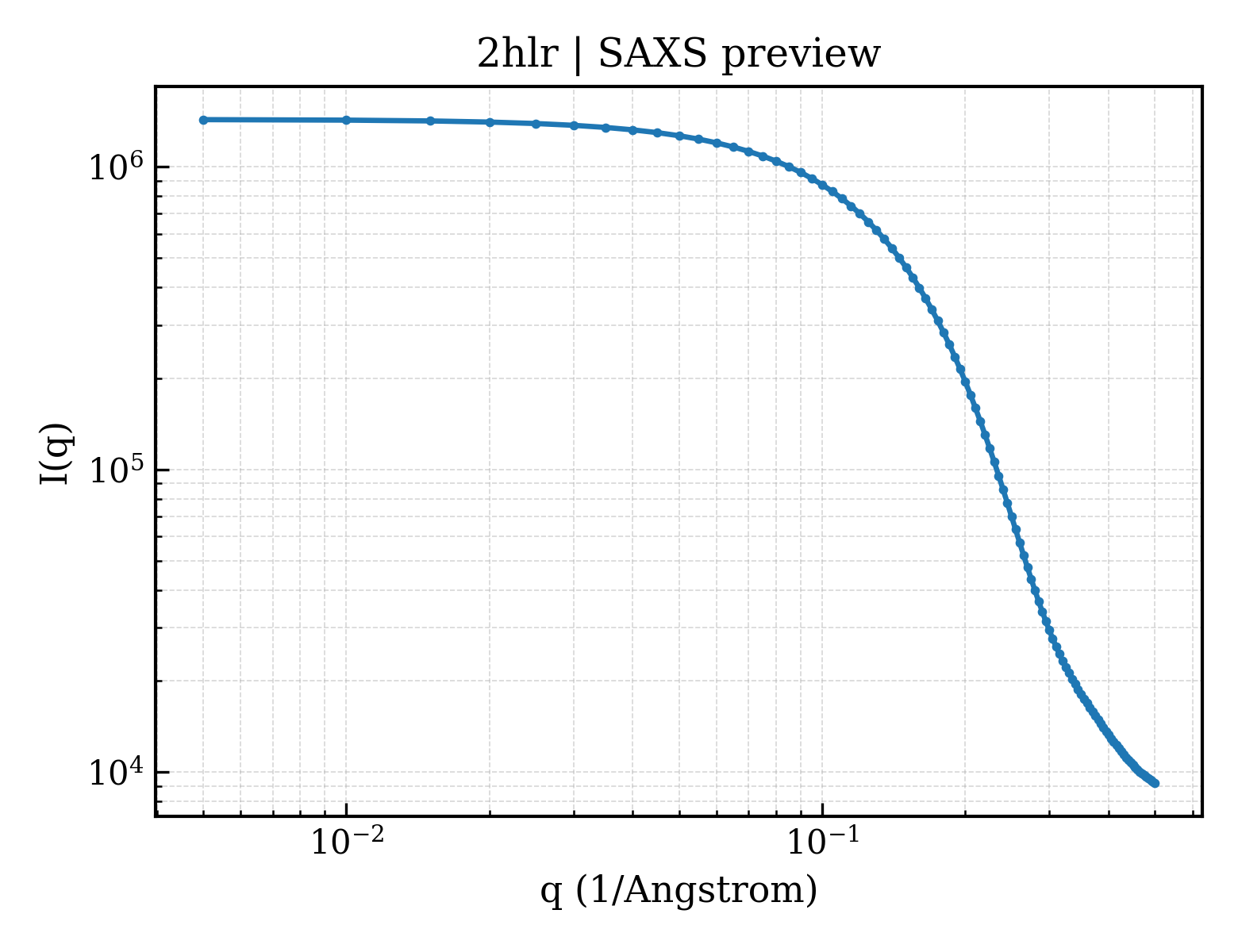

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.19 Å |
| Rg (electron density) | 11.19 Å |
| Total Rg | 12.50 Å |
| Atom count | 524 |
| Residues | 67 |
| Excluded volume | 9227 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 2hlrA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 60 — CD59 |
| Homologous superfamily homologous superfamily | 10 — CD59 |
