2hnv
Crystal Structure of a Dipeptide Complex of the Q58V Mutant of Bovine Neurophysin-I

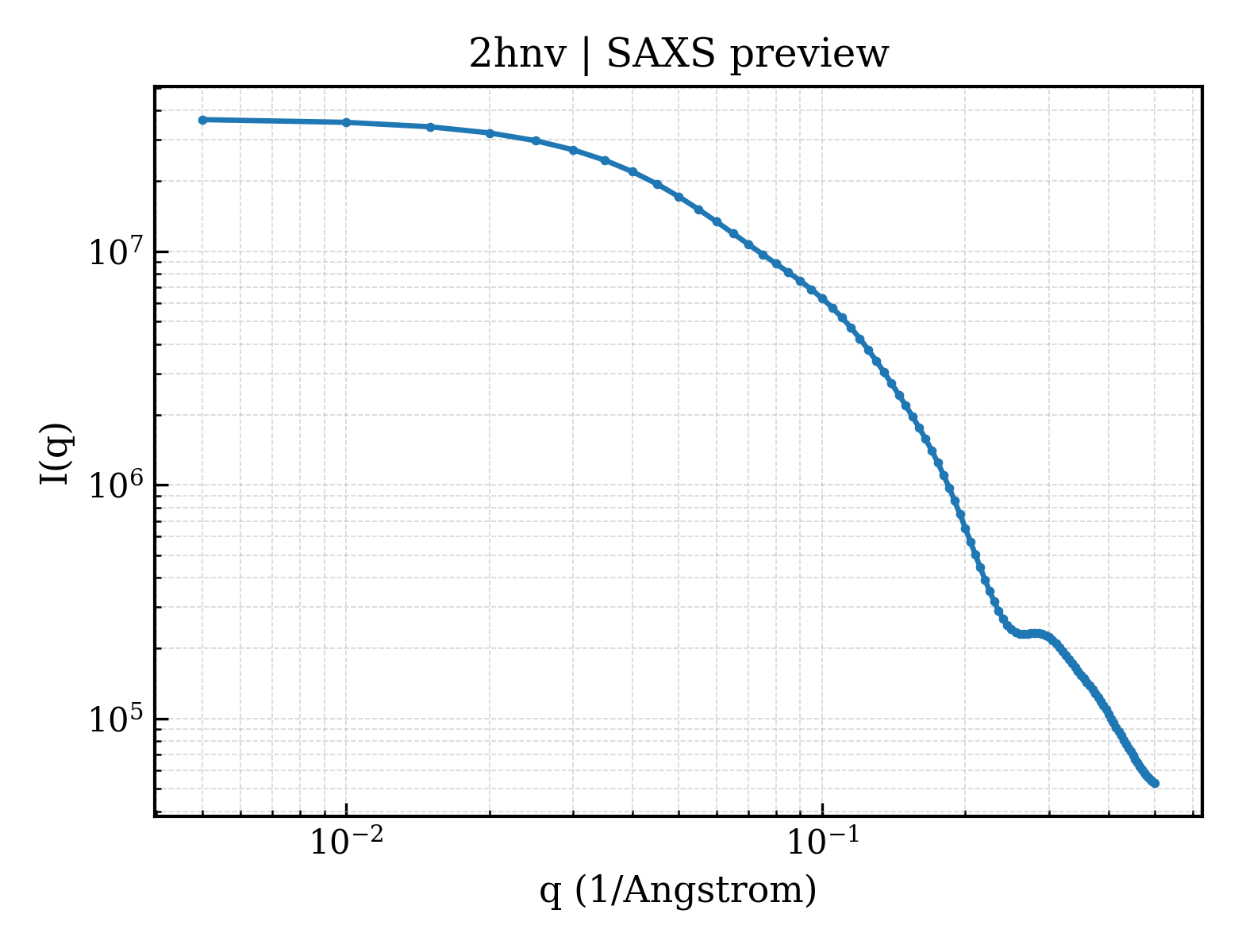

SAXS 散射曲线 SAXS Profile

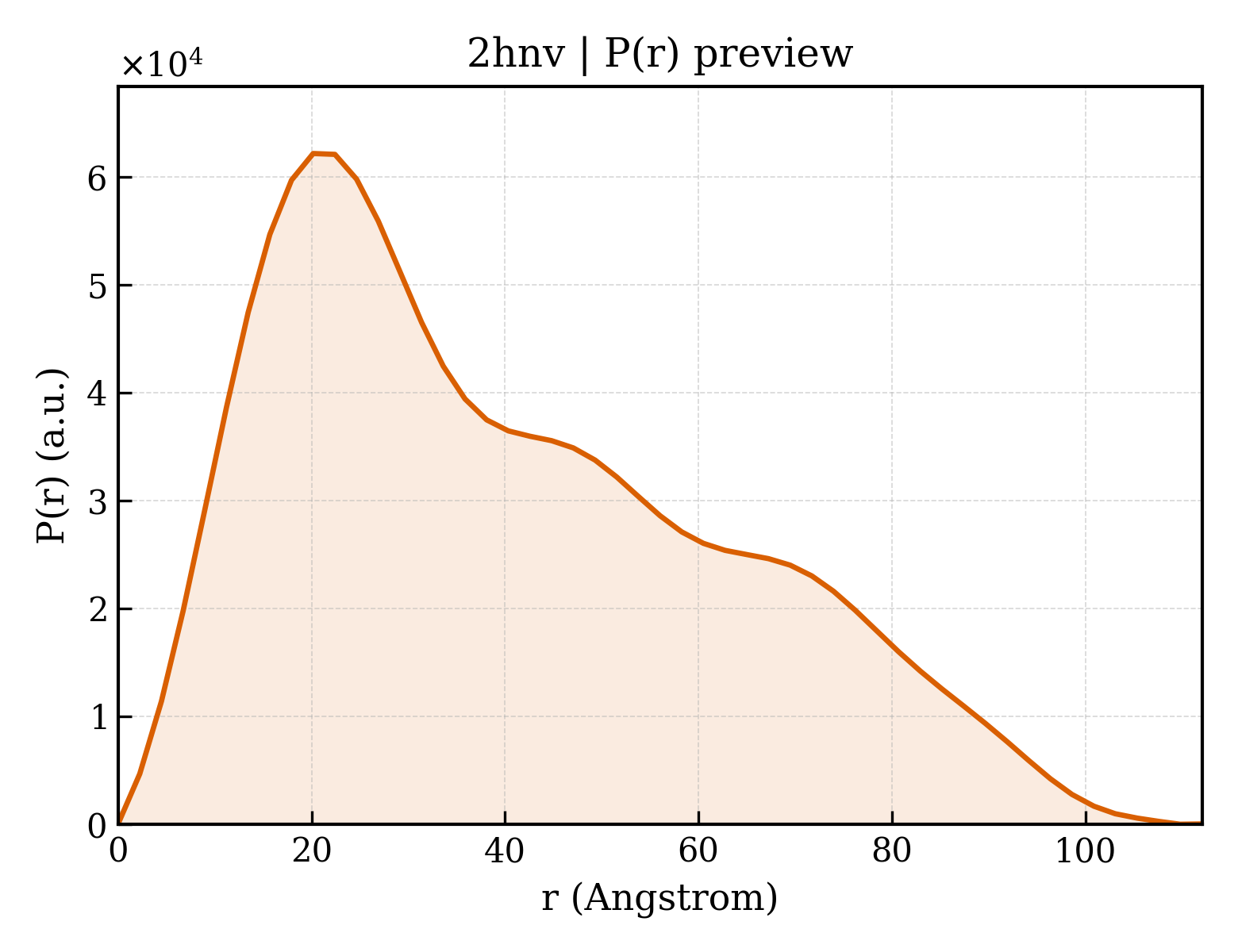

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2hnv |
| 沉积日期 deposition_date | 2006-07-13 |
| 结构标题 title | Crystal Structure of a Dipeptide Complex of the Q58V Mutant of Bovine Neurophysin-I |
| 关键词 keywords | protein-pepide complex, Q58V mutant, inter-domain loop, beta sheet, 3, 10 helix, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.94 Å |
| 回转半径 Rg (电子) rg_electron | 32.86 Å |
| 零角强度 I(0) i0 | 36932600.00 |
| 分子量 molecular_weight | 42268.0 kDa |
| 排除体积 excluded_volume | 50497 ų |
| 包络体积 envelope_volume | 67452 ų |
| 水化壳体积 shell_volume | 20167 ų |
| 包络直径 envelope_diameter | 113.6 Å |
| 壳层 Rg shell_rg | 33.74 Å |
| 包络 Rg envelope_rg | 32.66 Å |
| 形状 Rg shape_rg | 32.89 Å |
| 总 Rg total_rg | 32.86 Å |
| 总原子数 total_atoms | 2900 |
| 残基数 n_residues | 405 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 112.1 Å |
| Rg (实空间) rg_real | 32.64 Å |
| Rg 误差 (实空间) rg_real_error | 1.09 Å |
| I(0) (实空间) i0_real | 3.6930e+07 |
| I(0) 误差 (实空间) i0_real_error | 5.5380e+05 |
| Rg (倒空间) rg_reciprocal | 32.35 Å |
| I(0) (倒空间) i0_reciprocal | 36920000.0000 |
| 解质量估计 total_estimate | 0.6175 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 20.2 Å |
| 偏度 Skewness skewness | 0.558 |
| 峰度 Kurtosis kurtosis | -0.633 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2477000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.300; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.122; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 10 domains
SCOP 2.08 (5 domains)
| 结构域编号 domain_id | d2hnva_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.9 — Neurophysin II |
| 超家族 Superfamily superfamily | b.9.1 — Neurophysin II |
| 家族 Family family | b.9.1.1 — Neurophysin II |
| 结构域编号 domain_id | d2hnvb_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.9 — Neurophysin II |
| 超家族 Superfamily superfamily | b.9.1 — Neurophysin II |
| 家族 Family family | b.9.1.1 — Neurophysin II |
| 结构域编号 domain_id | d2hnvc_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.9 — Neurophysin II |
| 超家族 Superfamily superfamily | b.9.1 — Neurophysin II |
| 家族 Family family | b.9.1.1 — Neurophysin II |
| 结构域编号 domain_id | d2hnvd_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.9 — Neurophysin II |
| 超家族 Superfamily superfamily | b.9.1 — Neurophysin II |
| 家族 Family family | b.9.1.1 — Neurophysin II |
| 结构域编号 domain_id | d2hnve_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.9 — Neurophysin II |
| 超家族 Superfamily superfamily | b.9.1 — Neurophysin II |
| 家族 Family family | b.9.1.1 — Neurophysin II |
CATH v4.4 (5 domains)
| 结构域编号 domain_id | 2hnvA00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 9 — Neurophysin II; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Neurohypophysial hormone domain |
| 结构域编号 domain_id | 2hnvB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 9 — Neurophysin II; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Neurohypophysial hormone domain |
| 结构域编号 domain_id | 2hnvC00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 9 — Neurophysin II; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Neurohypophysial hormone domain |
| 结构域编号 domain_id | 2hnvD00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 9 — Neurophysin II; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Neurohypophysial hormone domain |
| 结构域编号 domain_id | 2hnvE00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 9 — Neurophysin II; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Neurohypophysial hormone domain |
