2hpg
The crystal structure of a thermophilic TRAP periplasmic binding protein
SAXS 散射曲线 SAXS Profile

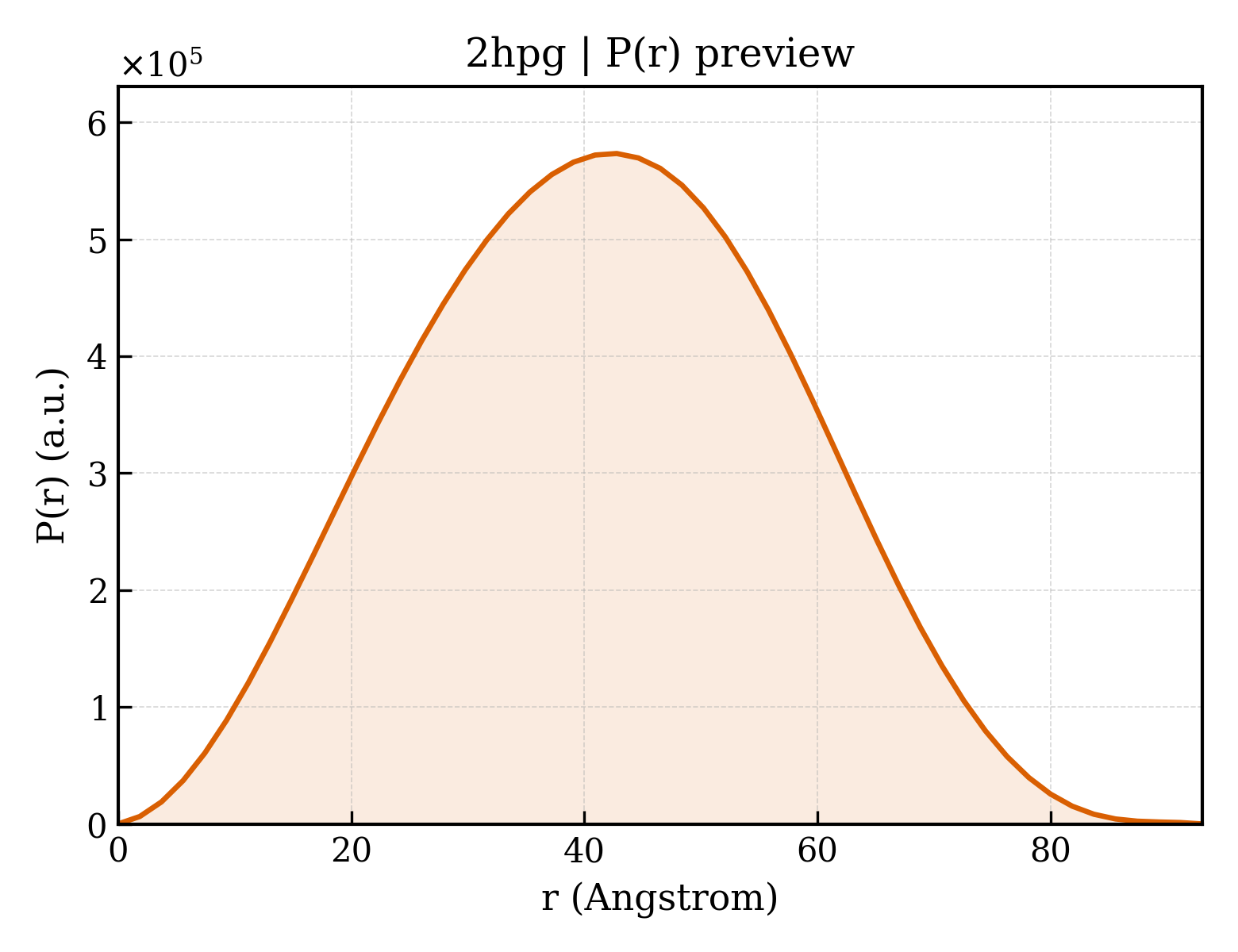

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2hpg |
| 沉积日期 deposition_date | 2006-07-17 |
| 结构标题 title | The crystal structure of a thermophilic TRAP periplasmic binding protein |
| 关键词 keywords | periplasmic binding protein, thermophilic proteins, TRAP-transport, LIGAND BINDING PROTEIN; LIGAND BINDING PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.77 Å |
| 回转半径 Rg (电子) rg_electron | 30.75 Å |
| 零角强度 I(0) i0 | 314312000.00 |
| 分子量 molecular_weight | 145320.0 kDa |
| 排除体积 excluded_volume | 182620 ų |
| 包络体积 envelope_volume | 216860 ų |
| 水化壳体积 shell_volume | 55243 ų |
| 包络直径 envelope_diameter | 98.5 Å |
| 壳层 Rg shell_rg | 40.39 Å |
| 包络 Rg envelope_rg | 30.52 Å |
| 形状 Rg shape_rg | 30.70 Å |
| 总 Rg total_rg | 31.69 Å |
| 总原子数 total_atoms | 10119 |
| 残基数 n_residues | 1224 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 93.0 Å |
| Rg (实空间) rg_real | 31.48 Å |
| Rg 误差 (实空间) rg_real_error | 0.30 Å |
| I(0) (实空间) i0_real | 3.1430e+08 |
| I(0) 误差 (实空间) i0_real_error | 4.2010e+06 |
| Rg (倒空间) rg_reciprocal | 31.60 Å |
| I(0) (倒空间) i0_reciprocal | 314300000.0000 |
| 解质量估计 total_estimate | 0.7132 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 42.8 Å |
| 偏度 Skewness skewness | 0.035 |
| 峰度 Kurtosis kurtosis | -0.557 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0001 |
| 最高正则化参数 α highest_alpha | 106400000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.950; Stabil: 1.000; Sysdev: 0.169; Positv: 1.000; Valcen: 0.968; Smooth: 0.942 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d2hpga_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.0 — automated matches |
| 结构域编号 domain_id | d2hpgb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.0 — automated matches |
| 结构域编号 domain_id | d2hpgc_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.0 — automated matches |
| 结构域编号 domain_id | d2hpgd_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.0 — automated matches |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 2hpgA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 170 — Bacterial extracellular solute-binding protein, family 7 |
| 结构域编号 domain_id | 2hpgB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 170 — Bacterial extracellular solute-binding protein, family 7 |
| 结构域编号 domain_id | 2hpgC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 170 — Bacterial extracellular solute-binding protein, family 7 |
| 结构域编号 domain_id | 2hpgD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 170 — Bacterial extracellular solute-binding protein, family 7 |
