2hr2
Crystal structure of a tpr-like protein (ct2138) from chlorobium tepidum tls at 2.54 A resolution

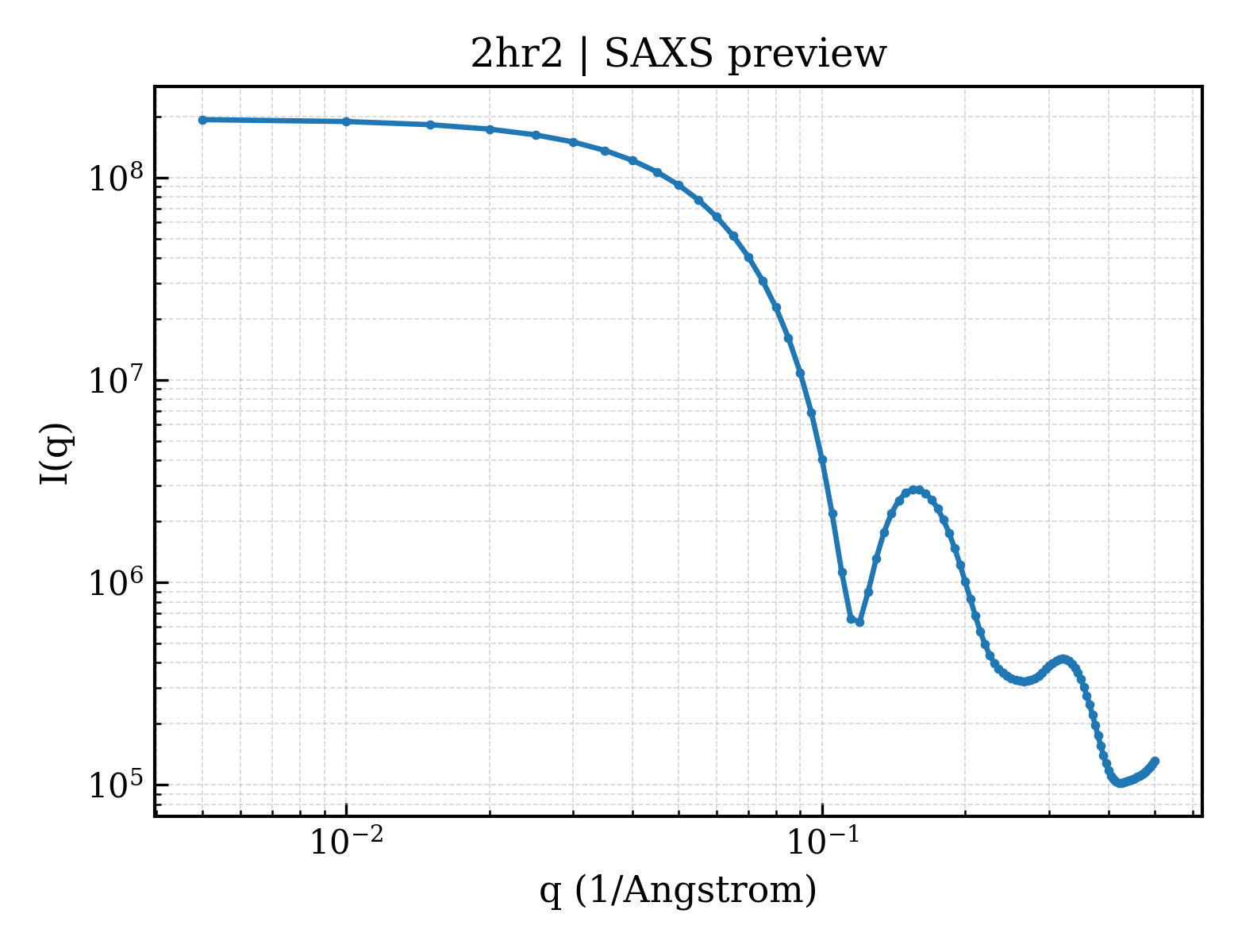

SAXS 散射曲线 SAXS Profile

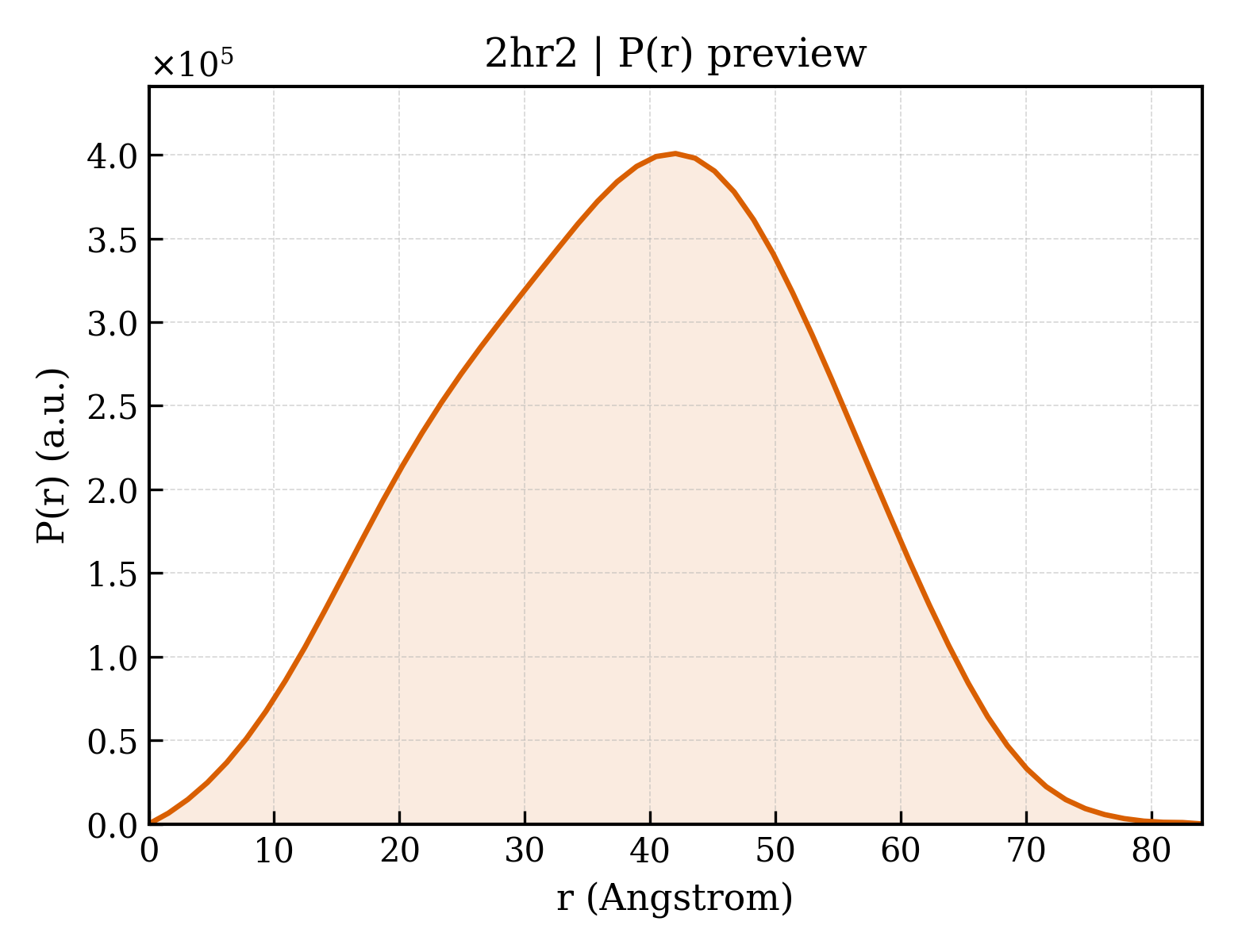

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2hr2 |
| 沉积日期 deposition_date | 2006-07-19 |
| 结构标题 title | Crystal structure of a tpr-like protein (ct2138) from chlorobium tepidum tls at 2.54 A resolution |
| 关键词 keywords | ;Alpha-alpha superhelix fold, structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI-2, unknown function ;; UNKNOWN FUNCTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.49 Å |
| 回转半径 Rg (电子) rg_electron | 28.41 Å |
| 零角强度 I(0) i0 | 194554000.00 |
| 分子量 molecular_weight | 103740.0 kDa |
| 排除体积 excluded_volume | 126420 ų |
| 包络体积 envelope_volume | 163580 ų |
| 水化壳体积 shell_volume | 46229 ų |
| 包络直径 envelope_diameter | 88.8 Å |
| 壳层 Rg shell_rg | 37.30 Å |
| 包络 Rg envelope_rg | 27.63 Å |
| 形状 Rg shape_rg | 28.41 Å |
| 总 Rg total_rg | 29.24 Å |
| 总原子数 total_atoms | 7136 |
| 残基数 n_residues | 899 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 84.1 Å |
| Rg (实空间) rg_real | 29.23 Å |
| Rg 误差 (实空间) rg_real_error | 0.29 Å |
| I(0) (实空间) i0_real | 1.9460e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.3910e+06 |
| Rg (倒空间) rg_reciprocal | 29.34 Å |
| I(0) (倒空间) i0_reciprocal | 194600000.0000 |
| 解质量估计 total_estimate | 0.9024 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 42.0 Å |
| 偏度 Skewness skewness | -0.071 |
| 峰度 Kurtosis kurtosis | -0.553 |
| 角度范围 angular_range | — – 0.2700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 41150000.0000 |
| 实空间数据点数 n_real_points | 55 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.934 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2hr2a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
| 结构域编号 domain_id | d2hr2b_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
| 结构域编号 domain_id | d2hr2c_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
| 结构域编号 domain_id | d2hr2d_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
| 结构域编号 domain_id | d2hr2e_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
| 结构域编号 domain_id | d2hr2f_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.8 — CT2138-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2hr2A00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
| 结构域编号 domain_id | 2hr2B00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
| 结构域编号 domain_id | 2hr2C00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
| 结构域编号 domain_id | 2hr2D00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
| 结构域编号 domain_id | 2hr2E00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
| 结构域编号 domain_id | 2hr2F00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 10 — Tetratricopeptide repeat domain |
