1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hre
沉积日期 deposition_date	2006-07-20
结构标题 title	Structure of human ferrochelatase variant E343K with protoporphyrin IX bound
关键词 keywords	Heme synthesis, Ferrochelatase, Protoporphyrin IX, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.81 Å
回转半径 Rg (电子) rg_electron	45.19 Å
零角强度 I(0) i0	406441000.00
分子量 molecular_weight	169410.0 kDa
排除体积 excluded_volume	213350 Å³
包络体积 envelope_volume	267440 Å³
水化壳体积 shell_volume	51979 Å³
包络直径 envelope_diameter	165.8 Å
壳层 Rg shell_rg	46.22 Å
包络 Rg envelope_rg	44.69 Å
形状 Rg shape_rg	45.20 Å
总 Rg total_rg	45.18 Å
总原子数 total_atoms	11890
残基数 n_residues	1436
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	157.8 Å
Rg (实空间) rg_real	45.33 Å
Rg 误差 (实空间) rg_real_error	1.66 Å
I(0) (实空间) i0_real	4.0640e+08
I(0) 误差 (实空间) i0_real_error	8.1780e+06
Rg (倒空间) rg_reciprocal	44.81 Å
I(0) (倒空间) i0_reciprocal	406200000.0000
解质量估计 total_estimate	0.7661
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.538
峰度 Kurtosis kurtosis	-0.474
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	58450000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.586; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.513; Smooth: 0.683

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Ferrochelatase
分子量 formula_weight	41178.5 kDa
EC 编号 ec_number	4.99.1.1
突变 mutation	E343K
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12228

RKPKTGILMLNMGGPETLGDVHDFLLRLFLDRDLMTLPIQNKLAPFIAKRRTPKIQEQYRRIGGGSPIKIWTSKQGEGMVKLLDELSPNTAPHKYYIGFRYVHPLTEEAIEEMERDGLERAIAFTQYPQYSCSTTGSSLNAIYRYYNQVGRKPTMKWSTIDRWPTHHLLIQCFADHILKELDHFPLEKRSEVVILFSAHSLPMSVVNRGDPYPQEVSATVQKVMERLEYCNPYRLVWQSKVGPMPWLGPQTDESIKGLCERGRKNILLVPIAFTSDHIKTLYELDIEYSQVLAKECGVENIRRAESLNGNPLFSKALADLVHSHIQSNELCSKQLTLSCPLCVNPVCRETKSFFTSQQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX
分子量 formula_weight	562.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	CHOLIC ACID
分子量 formula_weight	408.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	338

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2hrea_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.92 — Chelatase-like
超家族 Superfamily superfamily	c.92.1 — Chelatase
家族 Family family	c.92.1.1 — Ferrochelatase

结构域编号 domain_id	d2hreb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.92 — Chelatase-like
超家族 Superfamily superfamily	c.92.1 — Chelatase
家族 Family family	c.92.1.1 — Ferrochelatase

结构域编号 domain_id	d2hrec_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.92 — Chelatase-like
超家族 Superfamily superfamily	c.92.1 — Chelatase
家族 Family family	c.92.1.1 — Ferrochelatase

结构域编号 domain_id	d2hred_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.92 — Chelatase-like
超家族 Superfamily superfamily	c.92.1 — Chelatase
家族 Family family	c.92.1.1 — Ferrochelatase

CATH v4.4 (8 domains)

结构域编号 domain_id	2hreA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

结构域编号 domain_id	2hreD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1400 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.952 Å
晶胞边长 b length_b	88.388 Å
晶胞边长 c length_c	93.253 Å
晶胞夹角 α angle_alpha	102.41 °
晶胞夹角 β angle_beta	109.34 °
晶胞夹角 γ angle_gamma	105.58 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	43.660 Å
R 因子 r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2790

fit	/app/data/saxs_computation/hr/2hre/2hre.fit
pddf	/app/data/pr_computation/hr/2hre/2hre.pr.out
profile	/app/data/saxs_computation/hr/2hre/2hre.dat

Structure of human ferrochelatase variant E343K with protoporphyrin IX bound

SAXS 散射曲线 SAXS Profile

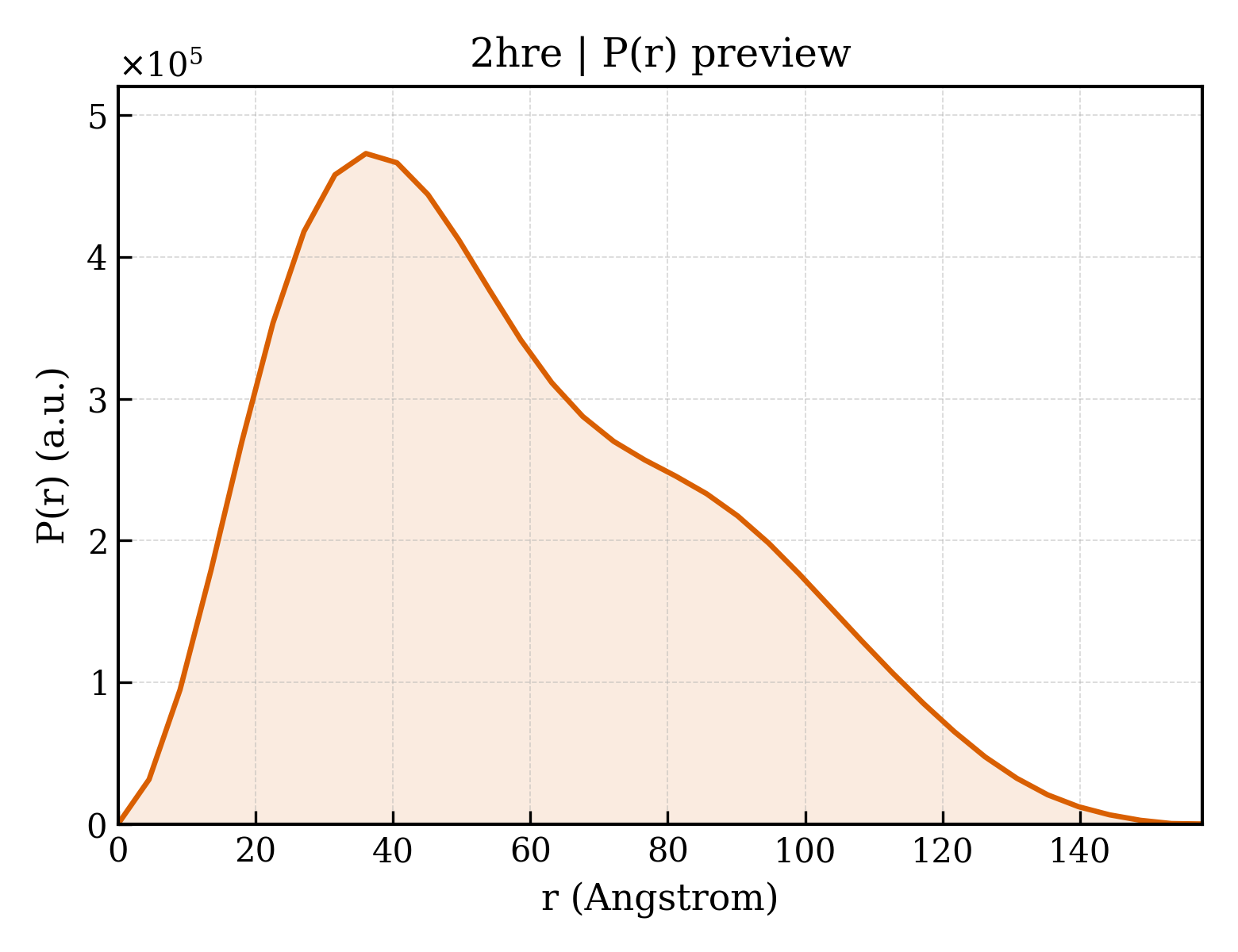

P(r) 距离分布 P(r) Distribution
