SAXSdb — 2hsj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative platelet activating factor

Streptococcus pneumoniae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 7 GLYCEROL × 9 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 7 GLYCEROL × 9 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q97PY9_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–214； UniProt 1–211 Author chain B； PDBConstruct 4–214； UniProt 1–211 Author chain C； PDBConstruct 4–214； UniProt 1–211 Author chain D； PDBConstruct 4–214； UniProt 1–211

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hsj
Deposition date deposition_date	2006-07-21
Structure title title	The structure of a putative platelet activating factor from Streptococcus pneumonia.
Keywords keywords	;platelet activating factor, Streptococcus pneumonia, structral genomics, Structural Genomics, PSI-2, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hsj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

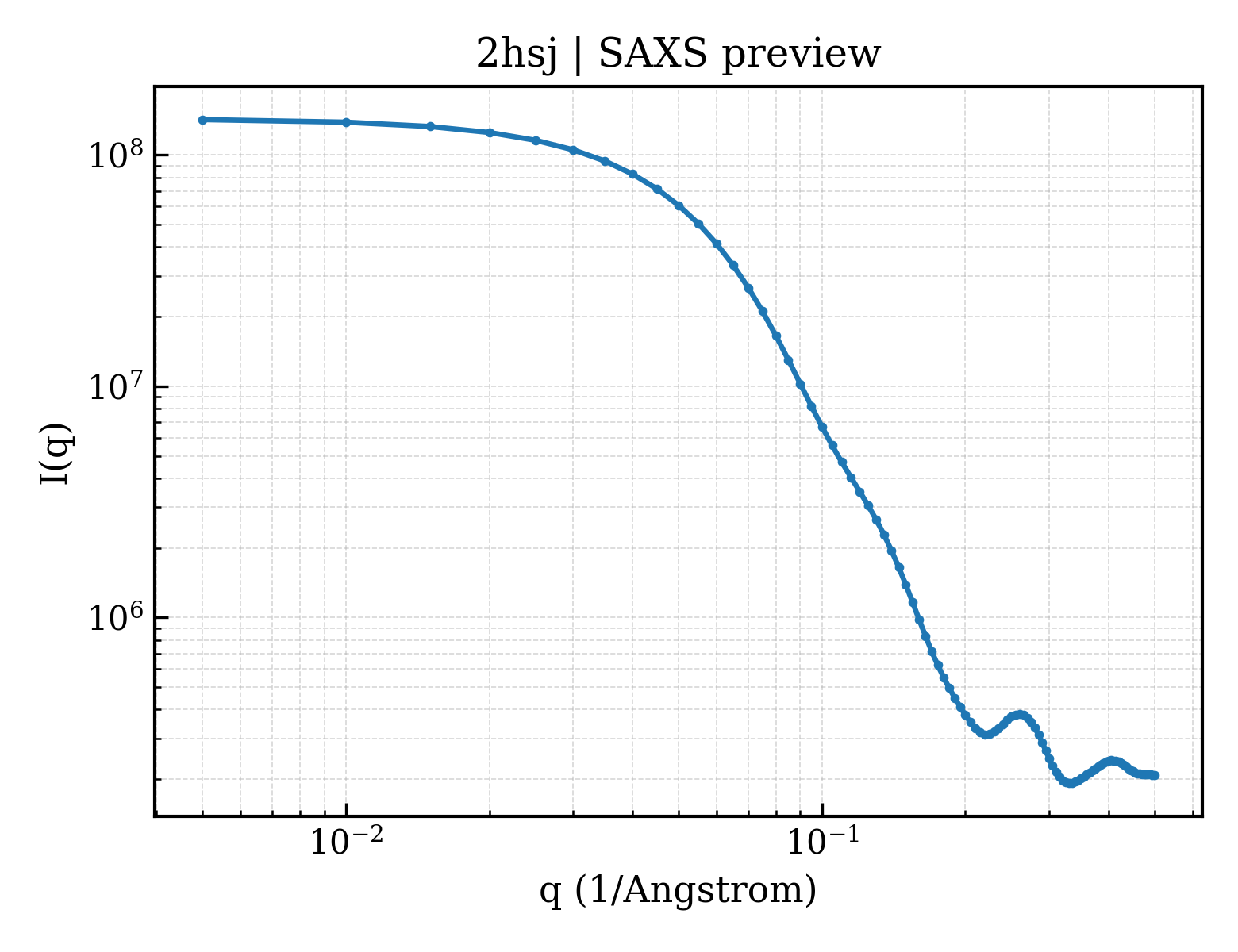

2hsj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

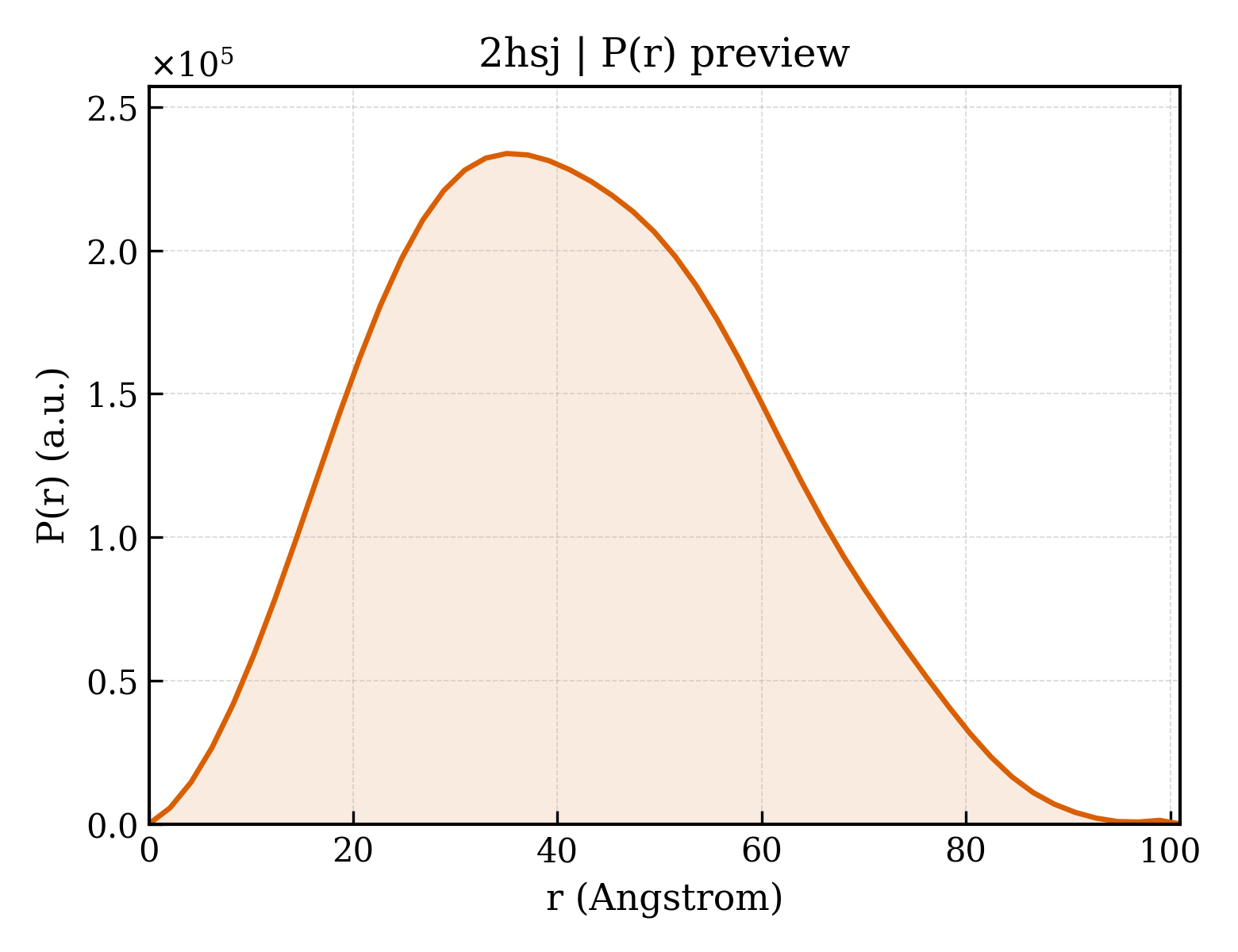

2hsj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.08 Å
Rg (electron density)	30.77 Å
Total Rg	31.68 Å
Atom count	6904
Residues	841
Excluded volume	123990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hsj__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hsj__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Putative platelet activating factor
Molecular weight formula_weight	24504.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8404

SNAMAVQLLENWLLKEQEKIQTKYRHLNHISVVEPNILFIGDSIVEYYPLQELFGTSKTIVNRGIRGYQTGLLLENLDAHLYGGAVDKIFLLIGTNDIGKDVPVNEALNNLEAIIQSVARDYPLTEIKLLSILPVNEREEYQQAVYIRSNEKIQNWNQAYQELASAYMQVEFVPVFDCLTDQAGQLKKEYTTDGLHLSIAGYQALSKSLKDYLY

Source Source

Source organism organism	Streptococcus pneumoniae
NCBI taxonomy ID ncbi_taxonomy_id	170187
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1266

▼

6. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d2hsja1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.10 — SGNH hydrolase
Family Family family	c.23.10.3 — Acetylhydrolase

Domain ID domain_id	d2hsjb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.10 — SGNH hydrolase
Family Family family	c.23.10.3 — Acetylhydrolase

Domain ID domain_id	d2hsjb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2hsjc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.10 — SGNH hydrolase
Family Family family	c.23.10.3 — Acetylhydrolase

Domain ID domain_id	d2hsjc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2hsjd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.10 — SGNH hydrolase
Family Family family	c.23.10.3 — Acetylhydrolase

Domain ID domain_id	d2hsjd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2hsjA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1110 — SGNH hydrolase

Domain ID domain_id	2hsjB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1110 — SGNH hydrolase

Domain ID domain_id	2hsjC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1110 — SGNH hydrolase

Domain ID domain_id	2hsjD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1110 — SGNH hydrolase

▶

Unit-cell length a length_a	41.032 Å
Unit-cell length b length_b	120.063 Å
Unit-cell length c length_c	84.743 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.48 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	40.460 Å
R factor r_factor	0.1616
R_work r_work	0.1600
R_free r_free	0.1931

The structure of a putative platelet activating factor from Streptococcus pneumonia.
