2hu4

N1 neuraminidase in complex with oseltamivir 2

Method: X-RAY DIFFRACTION D_max: 293.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

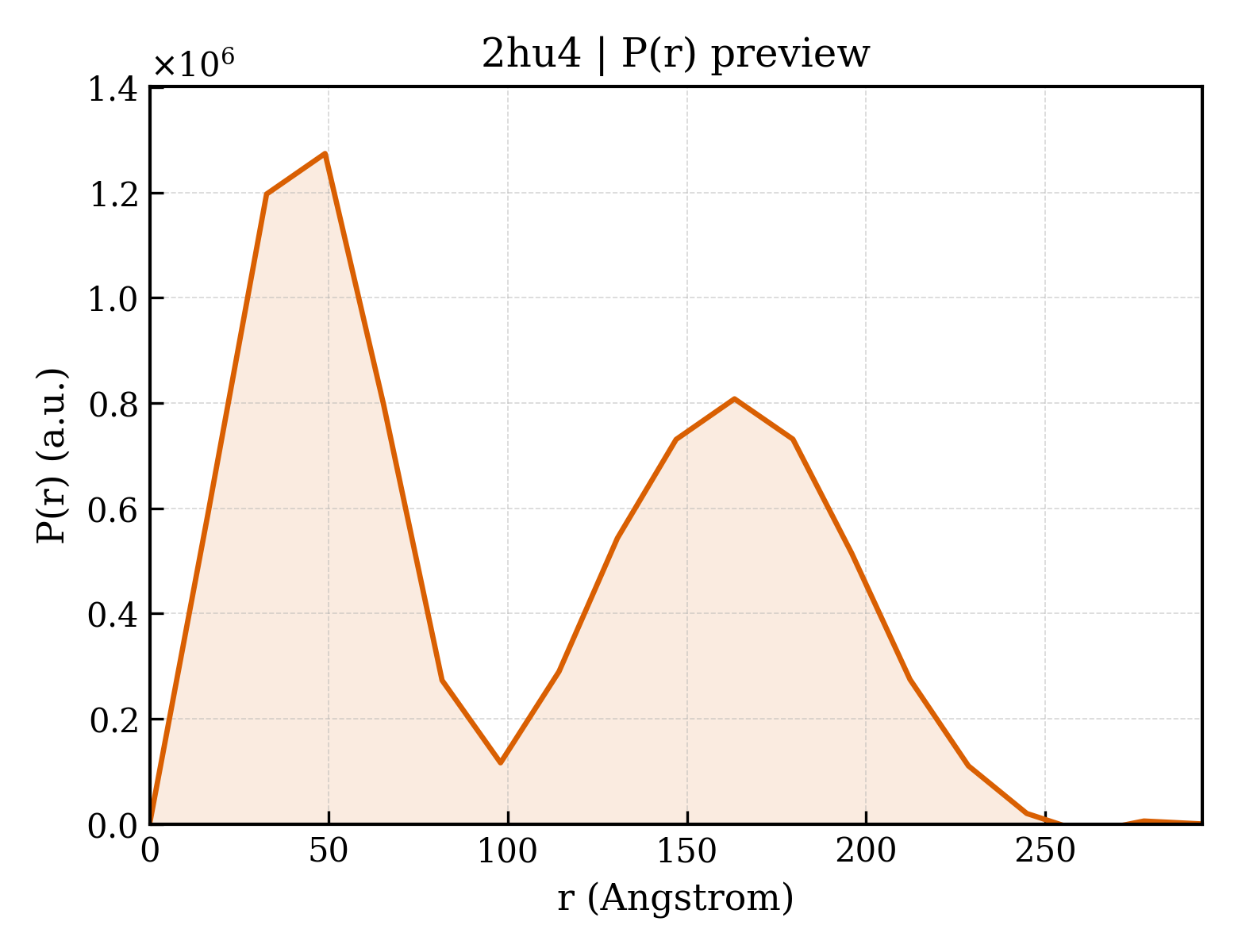

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hu4
沉积日期 deposition_date	2006-07-26
结构标题 title	N1 neuraminidase in complex with oseltamivir 2
关键词 keywords	N1, neuraminidase, oseltamivir, hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.28 Å
回转半径 Rg (电子) rg_electron	86.20 Å
零角强度 I(0) i0	1694670000.00
分子量 molecular_weight	339270.0 kDa
排除体积 excluded_volume	418550 Å³
包络体积 envelope_volume	603670 Å³
水化壳体积 shell_volume	56638 Å³
包络直径 envelope_diameter	255.8 Å
壳层 Rg shell_rg	93.97 Å
包络 Rg envelope_rg	81.33 Å
形状 Rg shape_rg	86.20 Å
总 Rg total_rg	86.22 Å
总原子数 total_atoms	23856
残基数 n_residues	3032
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	293.9 Å
Rg (实空间) rg_real	86.35 Å
Rg 误差 (实空间) rg_real_error	4.88 Å
I(0) (实空间) i0_real	1.6950e+09
I(0) 误差 (实空间) i0_real_error	4.6130e+07
Rg (倒空间) rg_reciprocal	79.84 Å
I(0) (倒空间) i0_reciprocal	1668000000.0000
解质量估计 total_estimate	0.5635
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	49.0 Å
偏度 Skewness skewness	0.207
峰度 Kurtosis kurtosis	-1.432
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	23940000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.320; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2hu4a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4c_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4d_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4e_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4f_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4g_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

结构域编号 domain_id	d2hu4h_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.0 — automated matches

CATH v4.4 (8 domains)

结构域编号 domain_id	2hu4A00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4B00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4C00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4D00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4E00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4F00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4G00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2hu4H00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	201.060 Å
晶胞边长 b length_b	201.240 Å
晶胞边长 c length_c	211.740 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	64

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2730

描述 description	Neuraminidase
分子量 formula_weight	42429.2 kDa
突变 mutation	H233Y
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	23856

N1 neuraminidase in complex with oseltamivir 2

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

Entity 2 non-polymer

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

描述 description	(3R,4R,5S)-4-(acetylamino)-5-amino-3-(pentan-3-yloxy)cyclohex-1-ene-1-carboxylic acid
分子量 formula_weight	284.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8
