SAXSdb — 2hxv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Diaminohydroxyphosphoribosylaminopyrimidine deaminase/ 5-amino-6-(5-phosphoribosylamino)uracil reductase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CHLORIDE ION × 2 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 2 GLYCEROL × 16 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X2E8_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–360； UniProt 1–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hxv
Deposition date deposition_date	2006-08-04
Structure title title	Crystal structure of a diaminohydroxyphosphoribosylaminopyrimidine deaminase/ 5-amino-6-(5-phosphoribosylamino)uracil reductase (tm1828) from thermotoga maritima at 1.80 A resolution
Keywords keywords	;Oxidoreductase, structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI-2, biosynthetic protein ;; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hxv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hxv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

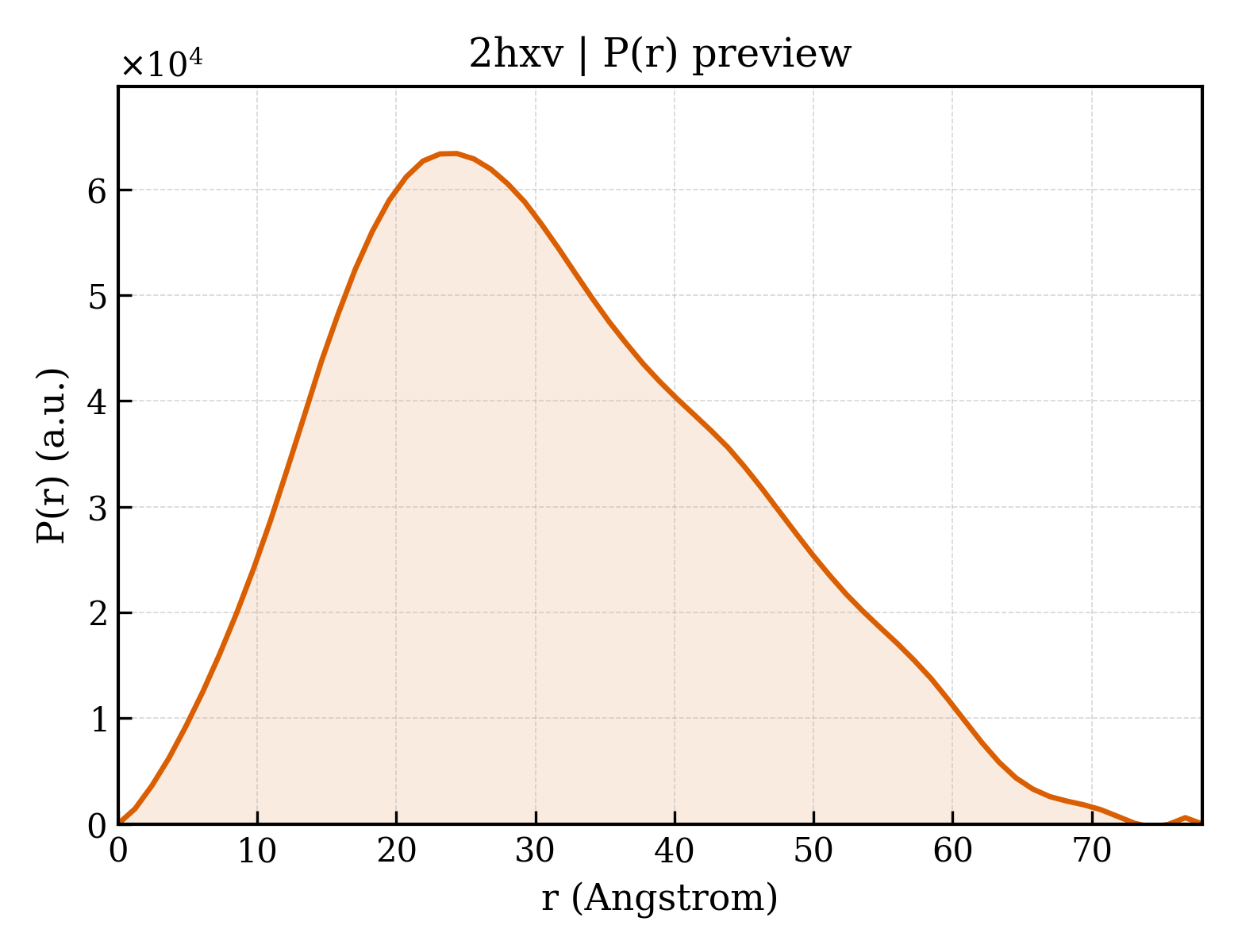

2hxv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.94 Å
Rg (electron density)	32.11 Å
Total Rg	32.52 Å
Atom count	5590
Residues	688
Excluded volume	99706 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hxv__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Diaminohydroxyphosphoribosylaminopyrimidine deaminase/ 5-amino-6-(5-phosphoribosylamino)uracil reductase
Molecular weight formula_weight	40667.7 kDa
EC 编号 ec_number	3.5.4.26, 1.1.1.193
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3019

MGSDKIHHHHHHMYETFMKRAIELAKKGLGRVNPNPPVGAVVVKDGRIIAEGFHPYFGGPHAERMAIESARKKGEDLRGATLIVTLEPCDHHGKTPPCTDLIIESGIKTVVIGTRDPNPVSGNGVEKFRNHGIEVIEGVLEEEVKKLCEFFITYVTKKRPFVALKYASTLDGKIADHRGDSKWITDKLRFKVHEMRNIYSAVLVGAGTVLKDNPQLTCRLKEGRNPVRVILDRKGVLSGKVFRVFEENARVIVFTESEEAEYPPHVEKALSDCSVESILRNLYERDIDSVLVEGGSKVFSEFLDHADVVFGFYSTKIFGKGLDVFSGYLSDVSVPPKFKVVNVEFSDSEFLVEMRPCSRE

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	205

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2hxva1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.2 — RibD C-terminal domain-like

Domain ID domain_id	d2hxva2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.2 — Deoxycytidylate deaminase-like

Domain ID domain_id	d2hxva3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2hxvA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2hxvA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

▶

Unit-cell length a length_a	104.180 Å
Unit-cell length b length_b	104.180 Å
Unit-cell length c length_c	145.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	28.341 Å
R factor r_factor	0.1620
R_work r_work	0.1600
R_free r_free	0.1950

Crystal structure of a diaminohydroxyphosphoribosylaminopyrimidine deaminase/ 5-amino-6-(5-phosphoribosylamino)uracil reductase (tm1828) from thermotoga maritima at 1.80 A resolution
