SAXSdb — 2hyd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ABC transporter homolog

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SODIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q99T13_STAAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–578； UniProt 1–578 Author chain B； PDBConstruct 1–578； UniProt 1–578

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hyd
Deposition date deposition_date	2006-08-05
Structure title title	Multidrug ABC transporter SAV1866
Keywords keywords	transport protein; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hyd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hyd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

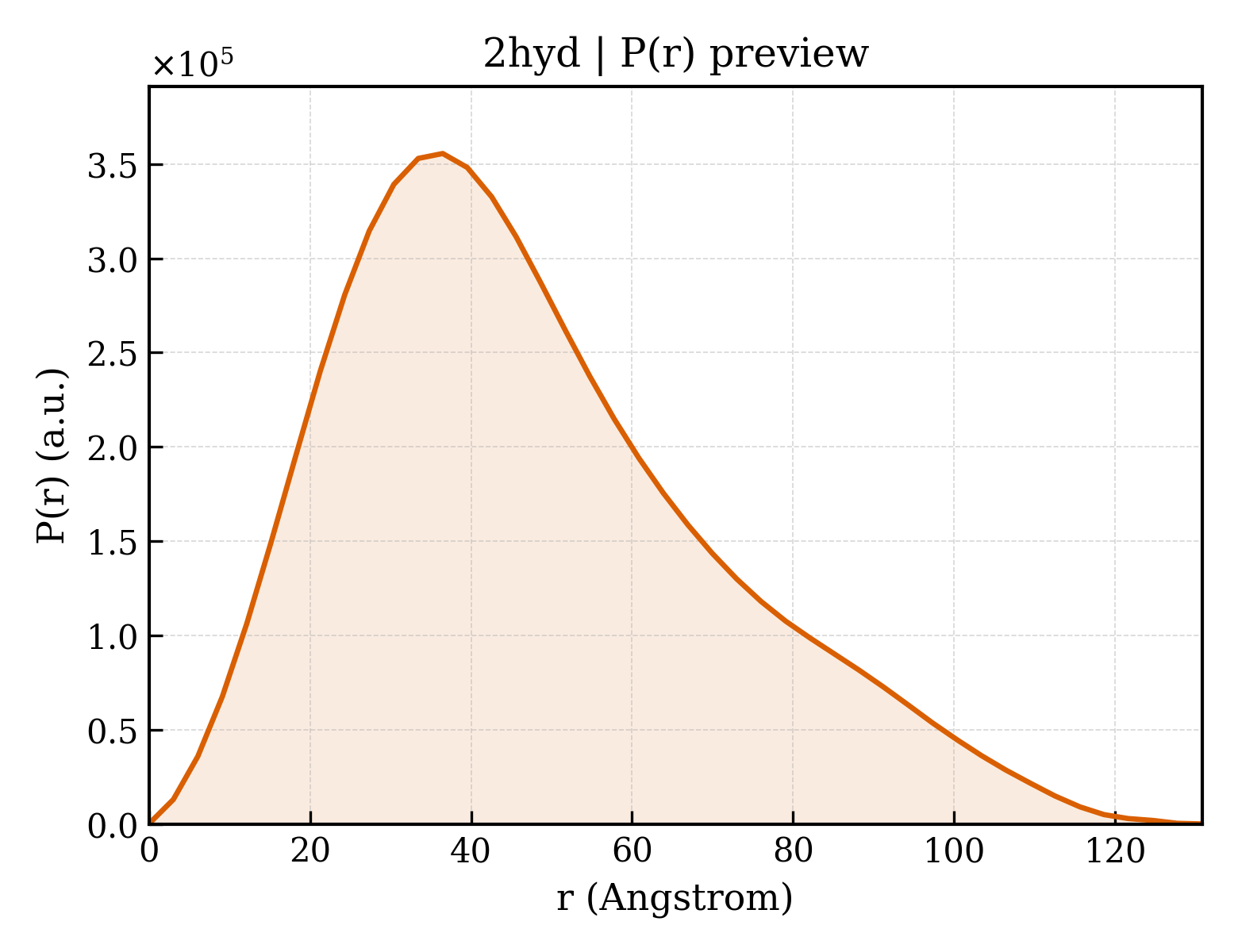

2hyd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.74 Å
Rg (electron density)	37.39 Å
Total Rg	37.73 Å
Atom count	9224
Residues	1156
Excluded volume	166540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hyd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ABC transporter homolog
Molecular weight formula_weight	64934.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9240

MIKRYLQFVKPYKYRIFATIIVGIIKFGIPMLIPLLIKYAIDGVINNHALTTDEKVHHLTIAIGIALFIFVIVRPPIEFIRQYLAQWTSNKILYDIRKKLYNHLQALSARFYANNQVGQVISRVINDVEQTKDFILTGLMNIWLDCITIIIALSIMFFLDVKLTLAALFIFPFYILTVYVFFGRLRKLTRERSQALAEVQGFLHERVQGISVVKSFAIEDNEAKNFDKKNTNFLTRALKHTRWNAYSFAAINTVTDIGPIIVIGVGAYLAISGSITVGTLAAFVGYLELLFGPLRRLVASFTTLTQSFASMDRVFQLIDEDYDIKNGVGAQPIEIKQGRIDIDHVSFQYNDNEAPILKDINLSIEKGETVAFVGMSGGGKSTLINLIPRFYDVTSGQILIDGHNIKDFLTGSLRNQIGLVQQDNILFSDTVKENILLGRPTATDEEVVEAAKMANAHDFIMNLPQGYDTEVGERGVKLSGGQKQRLSIARIFLNNPPILILDEATSALDLESESIIQEALDVLSKDRTTLIVAHRLSTITHADKIVVIENGHIVETGTHRELIAKQGAYEHLYSIQNL

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2hyda1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d2hyda2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.37 — ABC transporter transmembrane region
Superfamily Superfamily superfamily	f.37.1 — ABC transporter transmembrane region
Family Family family	f.37.1.1 — ABC transporter transmembrane region

Domain ID domain_id	d2hydb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d2hydb2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.37 — ABC transporter transmembrane region
Superfamily Superfamily superfamily	f.37.1 — ABC transporter transmembrane region
Family Family family	f.37.1.1 — ABC transporter transmembrane region

CATH v4.4 (4 domains)

Domain ID domain_id	2hydA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1560 — ABC transporter transmembrane region fold
Homologous superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

Domain ID domain_id	2hydA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2hydB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1560 — ABC transporter transmembrane region fold
Homologous superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

Domain ID domain_id	2hydB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	161.279 Å
Unit-cell length b length_b	103.955 Å
Unit-cell length c length_c	181.013 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.99 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.2720
