2hzv

NikR-operator DNA complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nickel-responsive regulator

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 4 DNA 2	5'-D(APGPTPAPTPGPAPCPGPAPAPTPAPCPTPTPAPAPAPAPTPCPGPTPCPAPTPAPCPT)-3' × 1 5'-D(APGPTPAPTPGPAPCPGPAPTPTPTPTPAPAPGPTPAPTPTPCPGPTPCPAPTPAPCPT)-3' × 1 NICKEL (II) ION × 4 POTASSIUM ION × 5	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 4 DNA 2	5'-D(APGPTPAPTPGPAPCPGPAPAPTPAPCPTPTPAPAPAPAPTPCPGPTPCPAPTPAPCPT)-3' × 1 5'-D(APGPTPAPTPGPAPCPGPAPTPTPTPTPAPAPGPTPAPTPTPCPGPTPCPAPTPAPCPT)-3' × 1 NICKEL (II) ION × 4 POTASSIUM ION × 6	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NIKR_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 1–133 Author chain B； PDBConstruct 1–133； UniProt 1–133 Author chain C； PDBConstruct 1–133； UniProt 1–133 Author chain D； PDBConstruct 1–133； UniProt 1–133 Author chain E； PDBConstruct 1–133； UniProt 1–133 Author chain F； PDBConstruct 1–133； UniProt 1–133 Author chain G； PDBConstruct 1–133； UniProt 1–133 Author chain H； PDBConstruct 1–133； UniProt 1–133

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hzv
Deposition date deposition_date	2006-08-09
Structure title title	NikR-operator DNA complex
Keywords keywords	nickel, transcription factor, protein-dna complex, ribbon-helix-helix, METAL BINDING PROTEIN-DNA COMPLEX; METAL BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hzv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hzv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

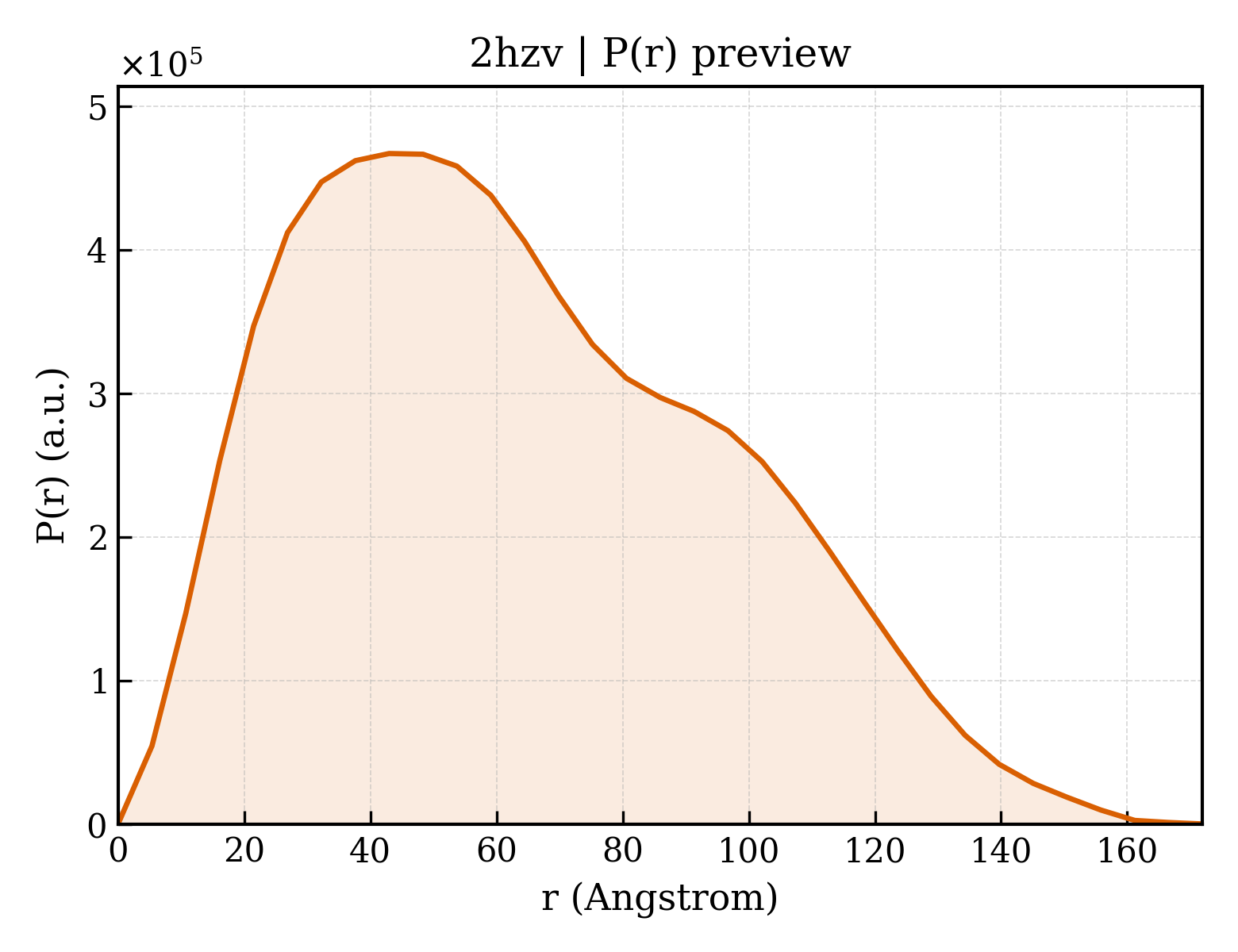

2hzv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.35 Å
Rg (electron density)	28.92 Å
Total Rg	29.55 Å
Atom count	5243
Residues	576
Excluded volume	88280 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hzv__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hzv__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-D(APGPTPAPTPGPAPCPGPAPAPTPAPCPTPTPAPAPAPAPTPCPGPTPCPAPTPAPCPT)-3'
Molecular weight formula_weight	9214.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I,K
Atom count atom_count	10501

AGTATGACGAATACTTAAAATCGTCATACT

Entity 2 Entity 2 polymer

Description description	5'-D(APGPTPAPTPGPAPCPGPAPTPTPTPTPAPAPGPTPAPTPTPCPGPTPCPAPTPAPCPT)-3'
Molecular weight formula_weight	9227.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J,L

AGTATGACGATTTTAAGTATTCGTCATACT

Entity 3 Entity 3 polymer

Description description	Nickel-responsive regulator
Molecular weight formula_weight	15212.6 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H

MQRVTITLDDDLLETLDSLSQRRGYNNRSEAIRDILRSALAQEATQQHGTQGFAVLSYVYEHEKRDLASRIVSTQHHHHDLSVATLHVHINHDDCLEIAVLKGDMGDVQHFADDVIAQRGVRHGHLQCLPKED

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	11

▼

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d2hzva1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzva2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvb1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvc1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvd1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzve1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzve2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvf1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvg1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

Domain ID domain_id	d2hzvh1
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.3 — CopG-like

Domain ID domain_id	d2hzvh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.18 — ACT-like
Family Family family	d.58.18.4 — Nickel responsive regulator NikR, C-terminal domain

CATH v4.4 (16 domains)

Domain ID domain_id	2hzvA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvE01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvF01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

Domain ID domain_id	2hzvH01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2hzvH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1150 — ACT-like. Chain A, domain 2

▶

Unit-cell length a length_a	197.203 Å
Unit-cell length b length_b	76.132 Å
Unit-cell length c length_c	132.092 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.27 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	49.280 Å
R factor r_factor	0.2610
R_work r_work	0.2610
R_free r_free	0.3030

NikR-operator DNA complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nickel-responsive regulator

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hzv__assembly_1__model_1

2hzv__assembly_1__model_1 | I(q)

2hzv__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)

NikR-operator DNA complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nickel-responsive regulator

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hzv__assembly_1__model_1

2hzv__assembly_1__model_1 | I(q)

2hzv__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)
