2i55
Complex of glucose-1,6-bisphosphate with phosphomannomutase from Leishmania mexicana
SAXS 散射曲线 SAXS Profile

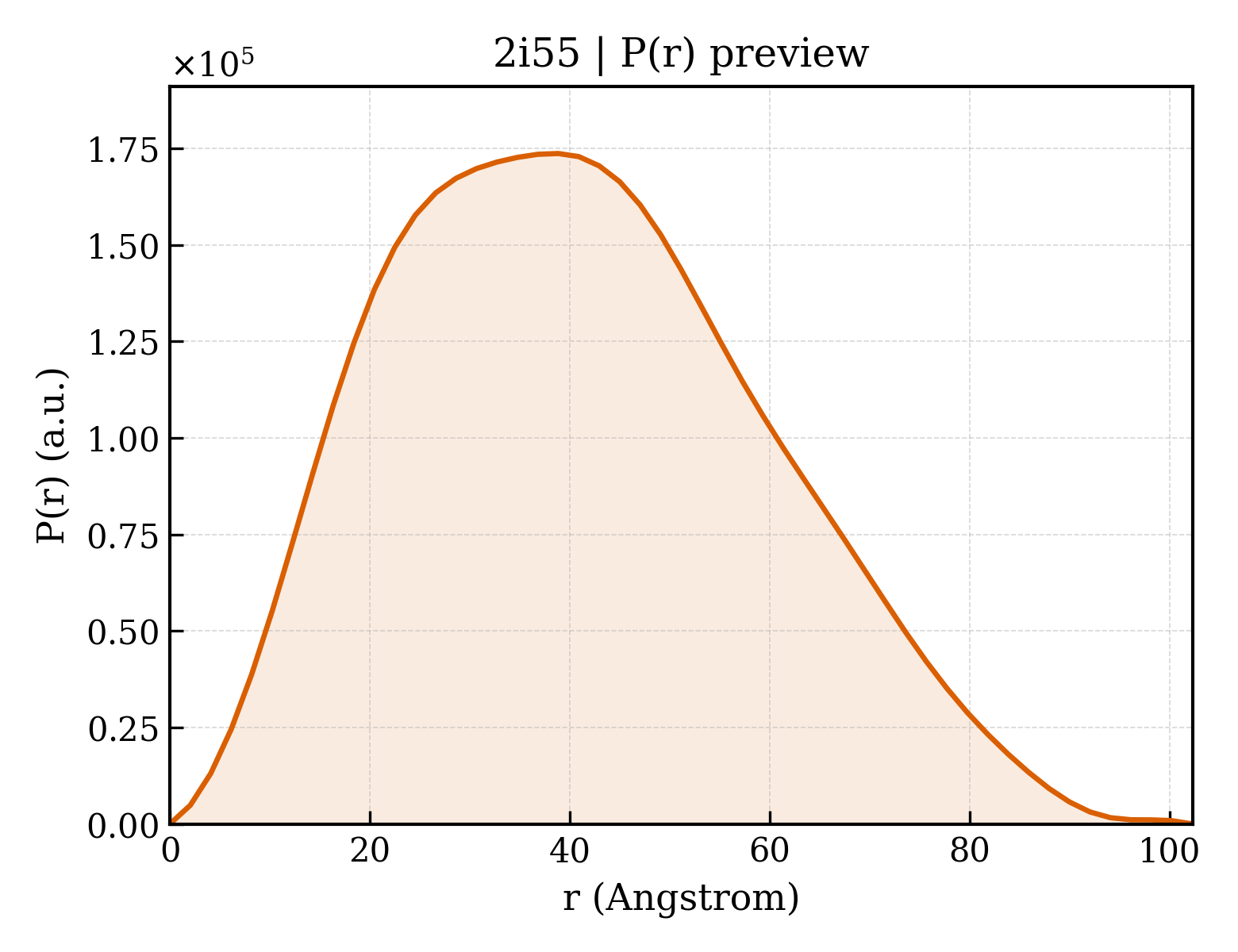

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2i55 |
| 沉积日期 deposition_date | 2006-08-24 |
| 结构标题 title | Complex of glucose-1,6-bisphosphate with phosphomannomutase from Leishmania mexicana |
| 关键词 keywords | HAD domain, Isomerase; ISOMERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.70 Å |
| 回转半径 Rg (电子) rg_electron | 31.39 Å |
| 零角强度 I(0) i0 | 110897000.00 |
| 分子量 molecular_weight | 83466.0 kDa |
| 排除体积 excluded_volume | 104290 ų |
| 包络体积 envelope_volume | 132720 ų |
| 水化壳体积 shell_volume | 36481 ų |
| 包络直径 envelope_diameter | 108.7 Å |
| 壳层 Rg shell_rg | 37.30 Å |
| 包络 Rg envelope_rg | 31.26 Å |
| 形状 Rg shape_rg | 31.39 Å |
| 总 Rg total_rg | 31.88 Å |
| 总原子数 total_atoms | 5885 |
| 残基数 n_residues | 726 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 102.3 Å |
| Rg (实空间) rg_real | 31.73 Å |
| Rg 误差 (实空间) rg_real_error | 0.77 Å |
| I(0) (实空间) i0_real | 1.1090e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.7640e+06 |
| Rg (倒空间) rg_reciprocal | 31.72 Å |
| I(0) (倒空间) i0_reciprocal | 110900000.0000 |
| 解质量估计 total_estimate | 0.7095 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 38.9 Å |
| 偏度 Skewness skewness | 0.311 |
| 峰度 Kurtosis kurtosis | -0.510 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 52120000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.929; Stabil: 1.000; Sysdev: 0.169; Positv: 1.000; Valcen: 0.983; Smooth: 0.942 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 9 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d2i55a_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.10 — Predicted hydrolases Cof |
| 结构域编号 domain_id | d2i55b_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.10 — Predicted hydrolases Cof |
| 结构域编号 domain_id | d2i55c_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.10 — Predicted hydrolases Cof |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2i55A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2i55A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1240 — Hypothetical Protein, Haloacid Dehalogenase-like Hydrolase; Chain: A; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — Eukaryotic phosphomannomutase, cap domain |
| 结构域编号 domain_id | 2i55B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2i55B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1240 — Hypothetical Protein, Haloacid Dehalogenase-like Hydrolase; Chain: A; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — Eukaryotic phosphomannomutase, cap domain |
| 结构域编号 domain_id | 2i55C01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2i55C02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1240 — Hypothetical Protein, Haloacid Dehalogenase-like Hydrolase; Chain: A; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — Eukaryotic phosphomannomutase, cap domain |
