SAXSdb — 2i5k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UTP--glucose-1-phosphate uridylyltransferase

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UGPA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–488； UniProt 12–499 Author chain B； PDBConstruct 1–488； UniProt 12–499

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i5k
Deposition date deposition_date	2006-08-25
Structure title title	Crystal structure of Ugp1p
Keywords keywords	left-handed beta-helix, SGC domain, Transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i5k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i5k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

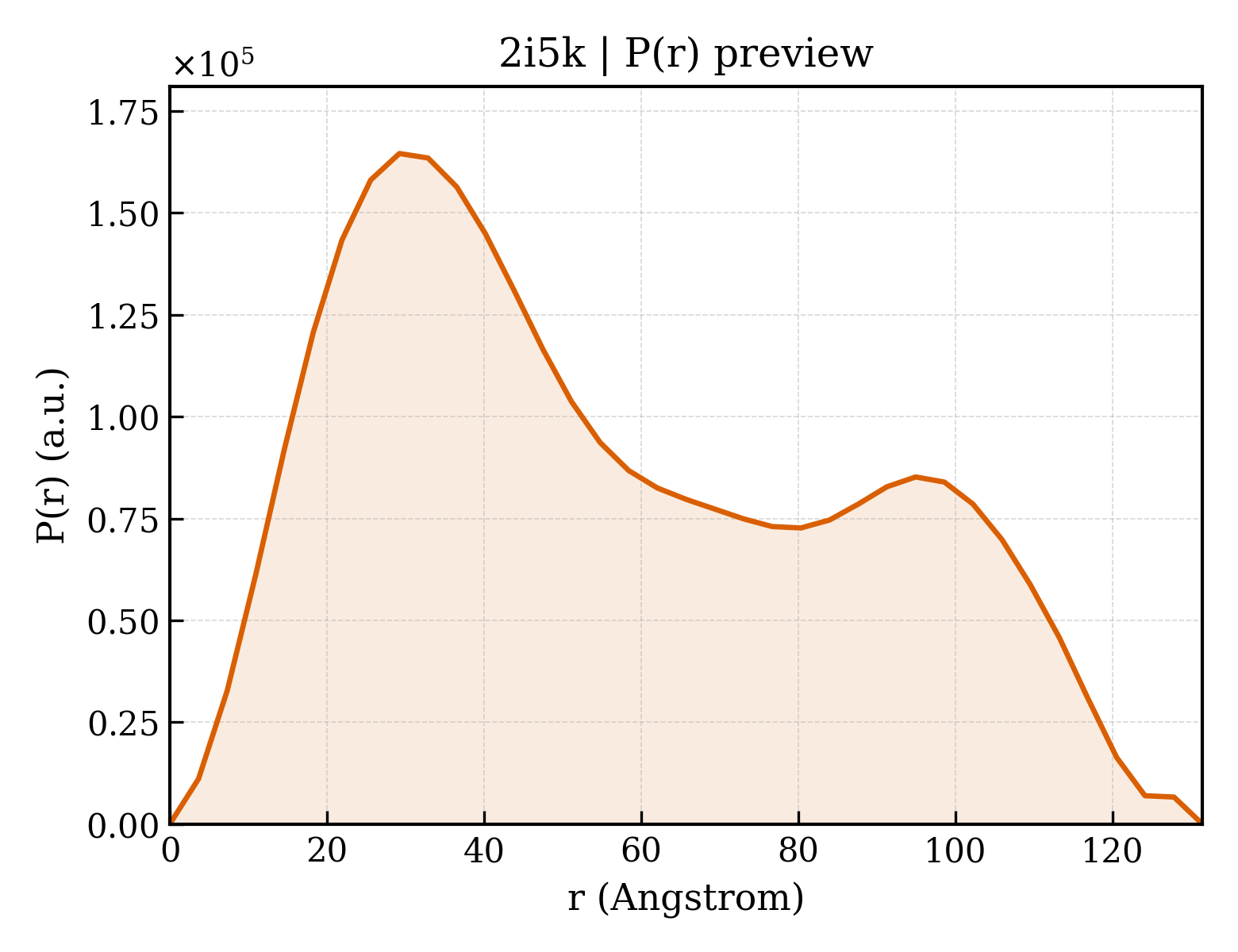

2i5k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.94 Å
Rg (electron density)	51.87 Å
Total Rg	51.95 Å
Atom count	26428
Residues	3724
Excluded volume	464370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i5k__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2i5ka1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.0 — automated matches

Domain ID domain_id	d2i5ka2
Class class	b — All beta proteins
Fold Fold fold	b.81 — Single-stranded left-handed beta-helix
Superfamily Superfamily superfamily	b.81.1 — Trimeric LpxA-like enzymes
Family Family family	b.81.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2i5kA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	2i5kA02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

Domain ID domain_id	2i5kB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	2i5kB02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

▶

Unit-cell length a length_a	110.191 Å
Unit-cell length b length_b	147.437 Å
Unit-cell length c length_c	167.752 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	19.990 Å
R factor r_factor	—
R_work r_work	0.2260
R_free r_free	0.2910

Description description	UTP--glucose-1-phosphate uridylyltransferase
Molecular weight formula_weight	54792.3 kDa
EC 编号 ec_number	2.7.7.9
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6617

Crystal structure of Ugp1p

1. Protein Identity and Related Structures Protein Identity & Related Structures

UTP--glucose-1-phosphate uridylyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2i5k__assembly_1__model_1

2i5k__assembly_1__model_1 | I(q)

2i5k__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10
