SAXSdb — 2i5p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glyceraldehyde-3-phosphate dehydrogenase 1

Kluyveromyces marxianus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	alpha-D-glucopyranose × 2 BETA-MERCAPTOETHANOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G3P1_KLUMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain O； PDBConstruct 14–342； UniProt 1–329 Author chain P； PDBConstruct 14–342； UniProt 1–329

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i5p
Deposition date deposition_date	2006-08-25
Structure title title	Crystal structure of glyceraldehyde-3-phosphate dehydrogenase isoform 1 from K. marxianus
Keywords keywords	Rossmann fold, apo form, dimer, GAPDH, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i5p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i5p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

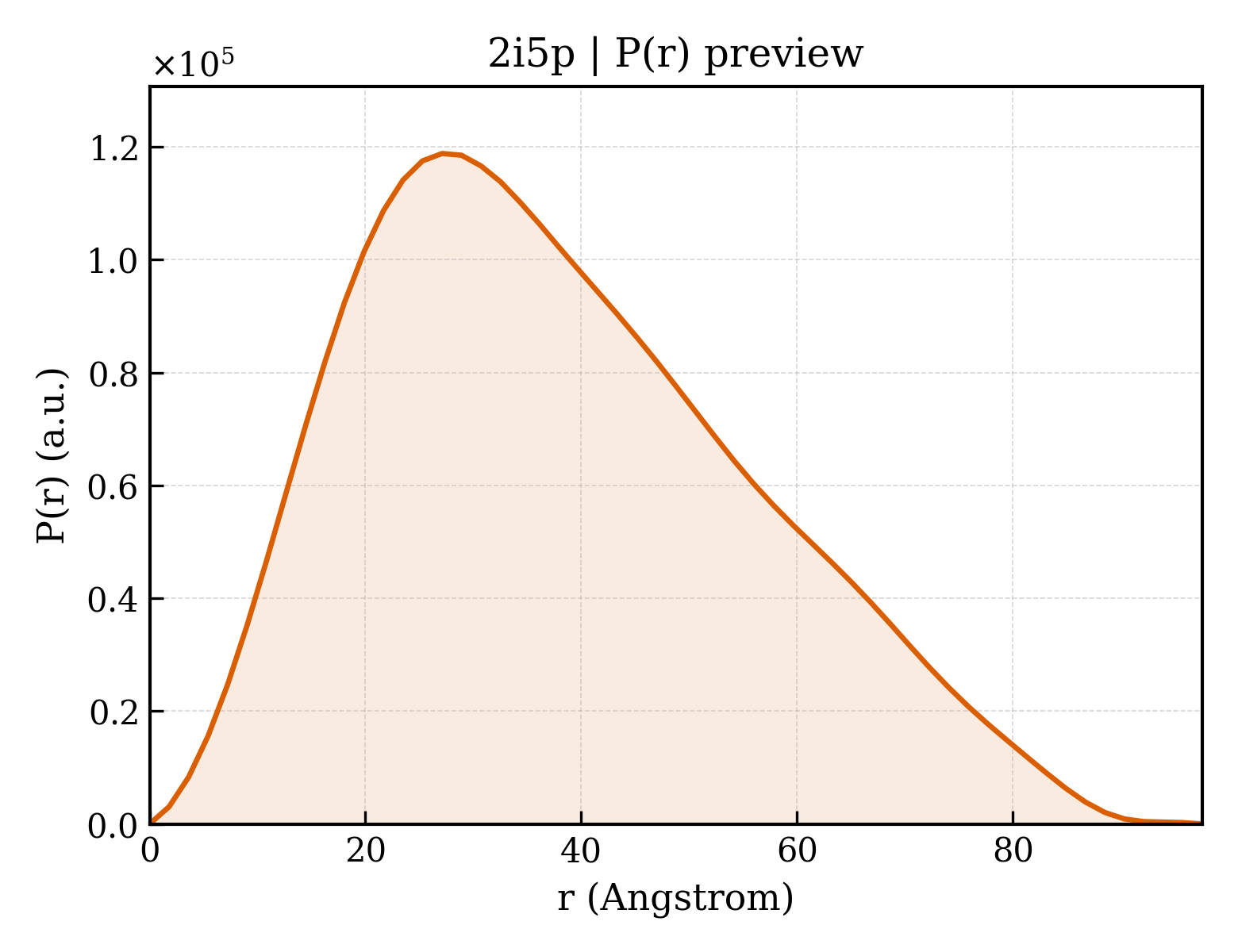

2i5p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.53 Å
Rg (electron density)	29.14 Å
Total Rg	29.67 Å
Atom count	4692
Residues	618
Excluded volume	84493 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i5p__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Glyceraldehyde-3-phosphate dehydrogenase 1
Molecular weight formula_weight	36858.0 kDa
EC 编号 ec_number	1.2.1.12
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,P
Atom count atom_count	4922

MRGSHHHHHHGIQMVSIAINGFGRIGRLVLRIALERKNIDVVAINDPFISVDYAAYMFKYDSTHGKYKGEVSHDGSNLIINGKKVAVFQEKDPATLPWGKLGVDIAVDSTGVFKELDSAQKHIDAGAKKVVITAPSKTAPMFVVGVNEDKYNGEKIVSNASCTTNCLAPIAKIINDEFGIEEGLMTTVHSITATQKTVDGPSHKDWRGGRTASGNIIPSSTGAAKAVGKVLPELQGKLTGMAFRVPTTDVSVVDLTVKLVKAATYDEIKAAVKKVSEGKLKDVVGYTEDAVVSSDFLGDTHSTIFDAAAGIQLSPKFVKLVAWYDNEYGYSTRVVDLVEHVA

Source Source

Source organism organism	Kluyveromyces marxianus
NCBI taxonomy ID ncbi_taxonomy_id	4911
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	alpha-D-glucopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	BETA-MERCAPTOETHANOL
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	230

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2i5pO01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2i5pO02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	2i5pP01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2i5pP02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

Unit-cell length a length_a	70.900 Å
Unit-cell length b length_b	70.900 Å
Unit-cell length c length_c	358.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	65.900 Å
R factor r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2450

Crystal structure of glyceraldehyde-3-phosphate dehydrogenase isoform 1 from K. marxianus
