SAXSdb — 2i61

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insect toxin 2

Leiurus quinquestriatus hebraeus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	LITHIUM ION × 3 SULFATE ION × 1 1,2-ETHANEDIOL × 3 CARBON DIOXIDE × 1 ACETIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIX2_LEIQH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–62； UniProt 22–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i61
Deposition date deposition_date	2006-08-27
Structure title title	Depressant anti-insect neurotoxin, LqhIT2 from Leiurus quinquestriatus hebraeus
Keywords keywords	Scorpion toxin, depressant, anti-insect, sodium channel modifer, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i61__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

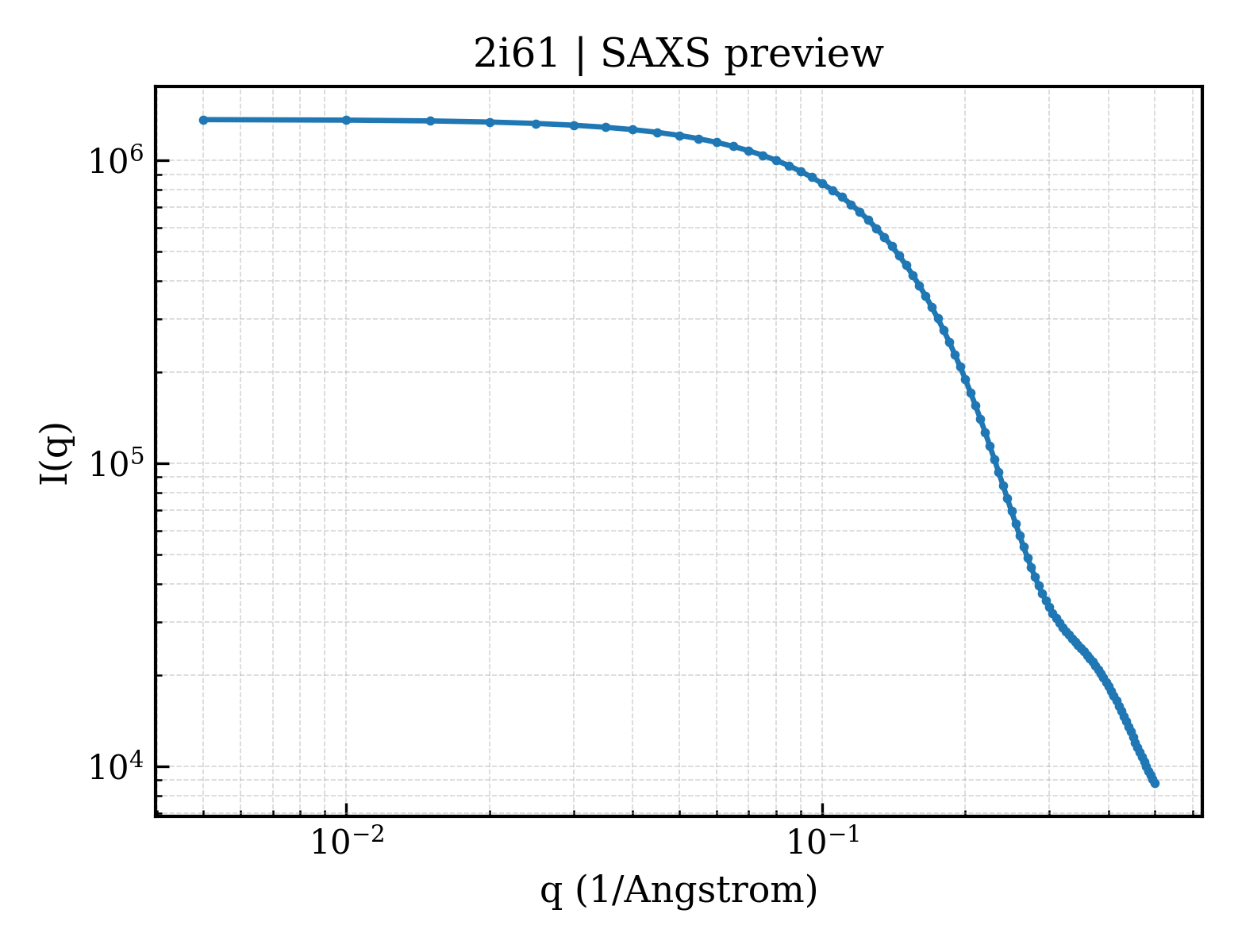

2i61__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

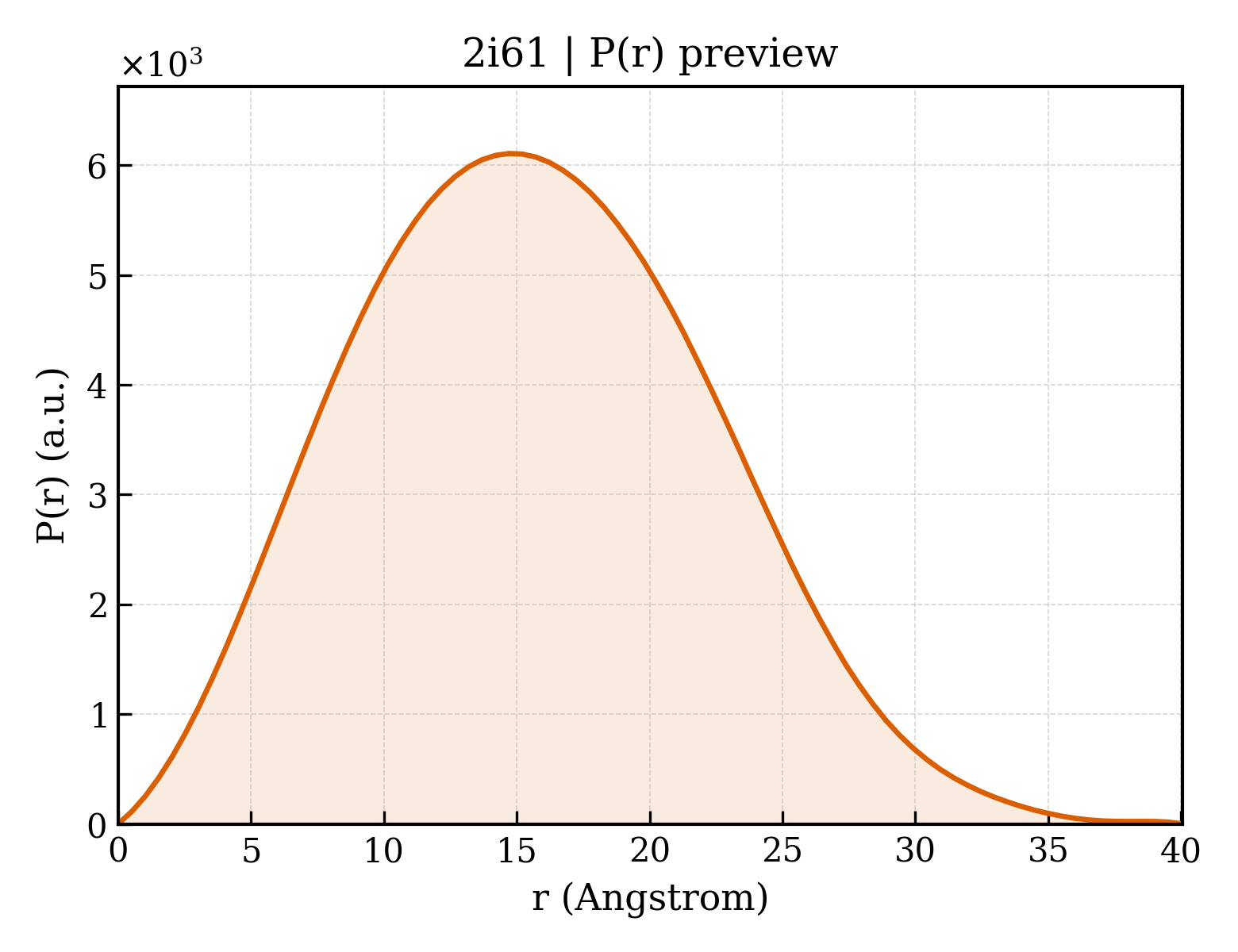

2i61__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	12.06 Å
Rg (electron density)	10.91 Å
Total Rg	12.24 Å
Atom count	505
Residues	62
Excluded volume	8849 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i61__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Insect toxin 2
Molecular weight formula_weight	6905.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	619

MDGYIKRRDGCKVACLIGNEGCDKECKAYGGSYGYCWTWGLACWCEGLPDDKTWKSETNTCG

Source Source

Source organism organism	Leiurus quinquestriatus hebraeus
NCBI taxonomy ID ncbi_taxonomy_id	6884
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	LITHIUM ION
Molecular weight formula_weight	6.9 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	CARBON DIOXIDE
Molecular weight formula_weight	44.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	86

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2i61a_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.7 — Scorpion toxin-like
Family Family family	g.3.7.1 — Long-chain scorpion toxins

CATH v4.4 (1 domains)

Domain ID domain_id	2i61A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	10 — Knottin, scorpion toxin-like

▶

Unit-cell length a length_a	19.660 Å
Unit-cell length b length_b	51.423 Å
Unit-cell length c length_c	28.917 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	27.540 Å
R factor r_factor	0.0970
R_work r_work	0.0960
R_free r_free	0.1200
