SAXSdb — 2i69

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polyprotein

West Nile virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8JU43_WNV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–403； UniProt 291–693

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i69
Deposition date deposition_date	2006-08-28
Structure title title	Crystal structure of the West Nile virus envelope glycoprotein
Keywords keywords	Viral membrane fusion protein, receptor binding, antibody epitope, IgC, beta sandwich, glycoprotein, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i69__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i69__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

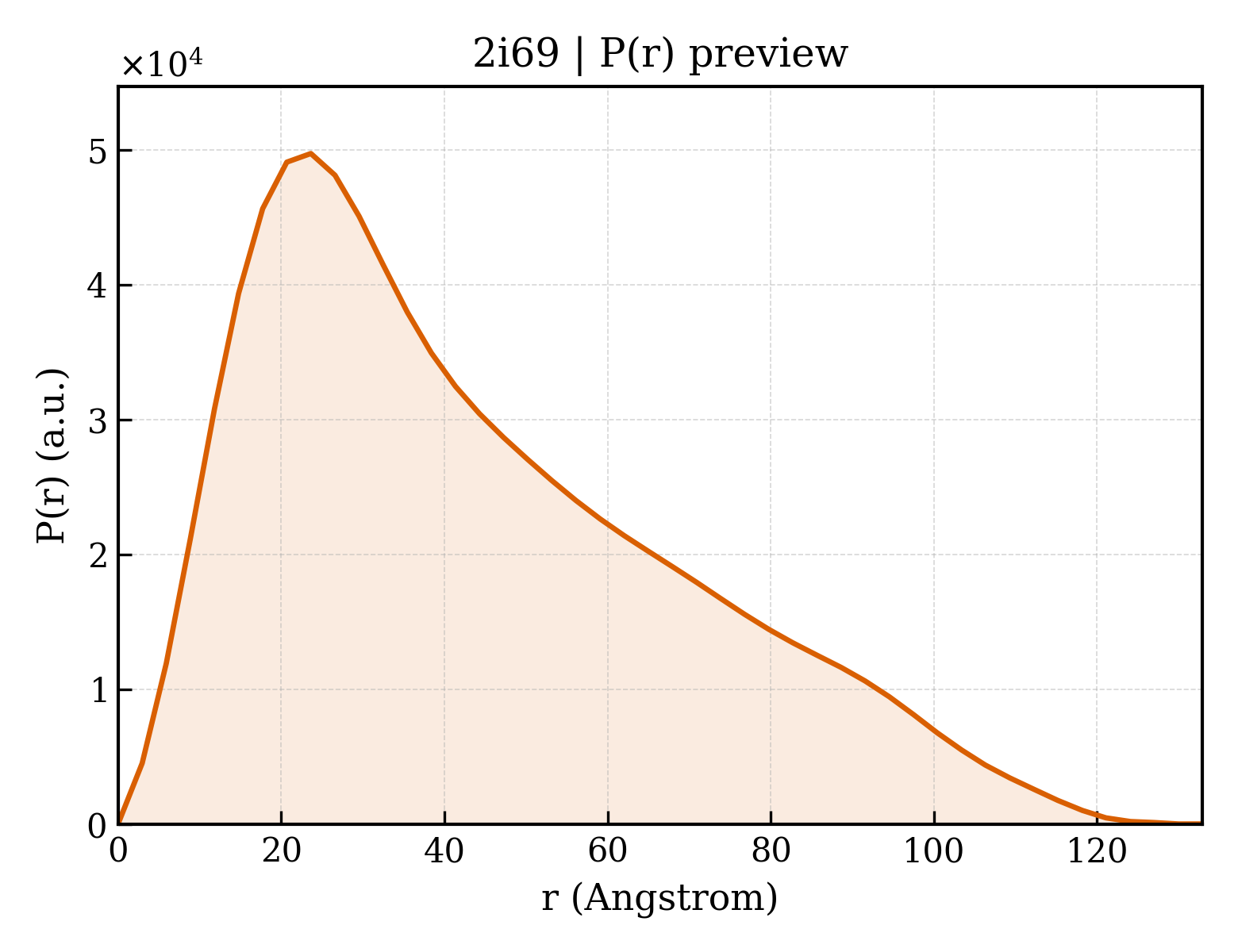

2i69__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.90 Å
Rg (electron density)	35.37 Å
Total Rg	35.27 Å
Atom count	3081
Residues	403
Excluded volume	54760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i69__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Polyprotein
Molecular weight formula_weight	43503.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3095

FNCLGMSNRDFLEGVSGATWVDLVLEGDSCVTIMSKDKPTIDVKMMNMEAANLAEVRSYCYLATVSDLSTKAACPTMGEAHNDKRADPAFVCRQGVVDRGWGNGCGLFGKGSIDTCAKFACSTKAIGRTILKENIKYEVAIFVHGPTTVESHGNYSTQVGATQAGRFSITPAAPSYTLKLGEYGEVTVDCEPRSGIDTNAYYVMTVGTKTFLVHREWFMDLNLPWSSAGSTVWRNRETLMEFEEPHATKQSVIALGSQEGALHQALAGAIPVEFSSNTVKLTSGHLKCRVKMEKLQLKGTTYGVCSKAFKFLGTPADTGHGTVVLELQYTGTDGPCKVPISSVASLNDLTPVGRLVTVNPFVSVATANAKVLIELEPPFGDSYIVVGRGEQQINHHWHKSGSS

Source Source

Source organism organism	West Nile virus
NCBI taxonomy ID ncbi_taxonomy_id	11082
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2i69a1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.10 — Viral glycoprotein, central and dimerisation domains
Superfamily Superfamily superfamily	f.10.1 — Viral glycoprotein, central and dimerisation domains
Family Family family	f.10.1.0 — automated matches

Domain ID domain_id	d2i69a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2i69A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
Homologous superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

Domain ID domain_id	2i69A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	67 — Viral Envelope Glycoprotein; domain 2
Homologous superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 2

Domain ID domain_id	2i69A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	387 — Viral Envelope Glycoprotein; domain 3
Homologous superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 3

Domain ID domain_id	2i69A04
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

▶

Unit-cell length a length_a	93.262 Å
Unit-cell length b length_b	93.262 Å
Unit-cell length c length_c	159.319 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	3.110 Å
Low-resolution limit resolution_low	24.060 Å
R factor r_factor	0.2090
R_work r_work	0.2060
R_free r_free	0.2680
