SAXSdb — 2i6a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Adenosine kinase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	7-(5-DEOXY-BETA-D-RIBOFURANOSYL)-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-4-AMINE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	7-(5-DEOXY-BETA-D-RIBOFURANOSYL)-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-4-AMINE × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	7-(5-DEOXY-BETA-D-RIBOFURANOSYL)-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-4-AMINE × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	7-(5-DEOXY-BETA-D-RIBOFURANOSYL)-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-4-AMINE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5VXR3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–345； UniProt 1–345 Author chain B； PDBConstruct 1–345； UniProt 1–345 Author chain C； PDBConstruct 1–345； UniProt 1–345 Author chain D； PDBConstruct 1–345； UniProt 1–345

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i6a
Deposition date deposition_date	2006-08-28
Structure title title	Human Adenosine Kinase in Complex With 5'-Deoxy-5-Iodotubercidin
Keywords keywords	;protein-ligand complex, 5'-deoxy-5-iodotubercidin, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i6a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i6a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

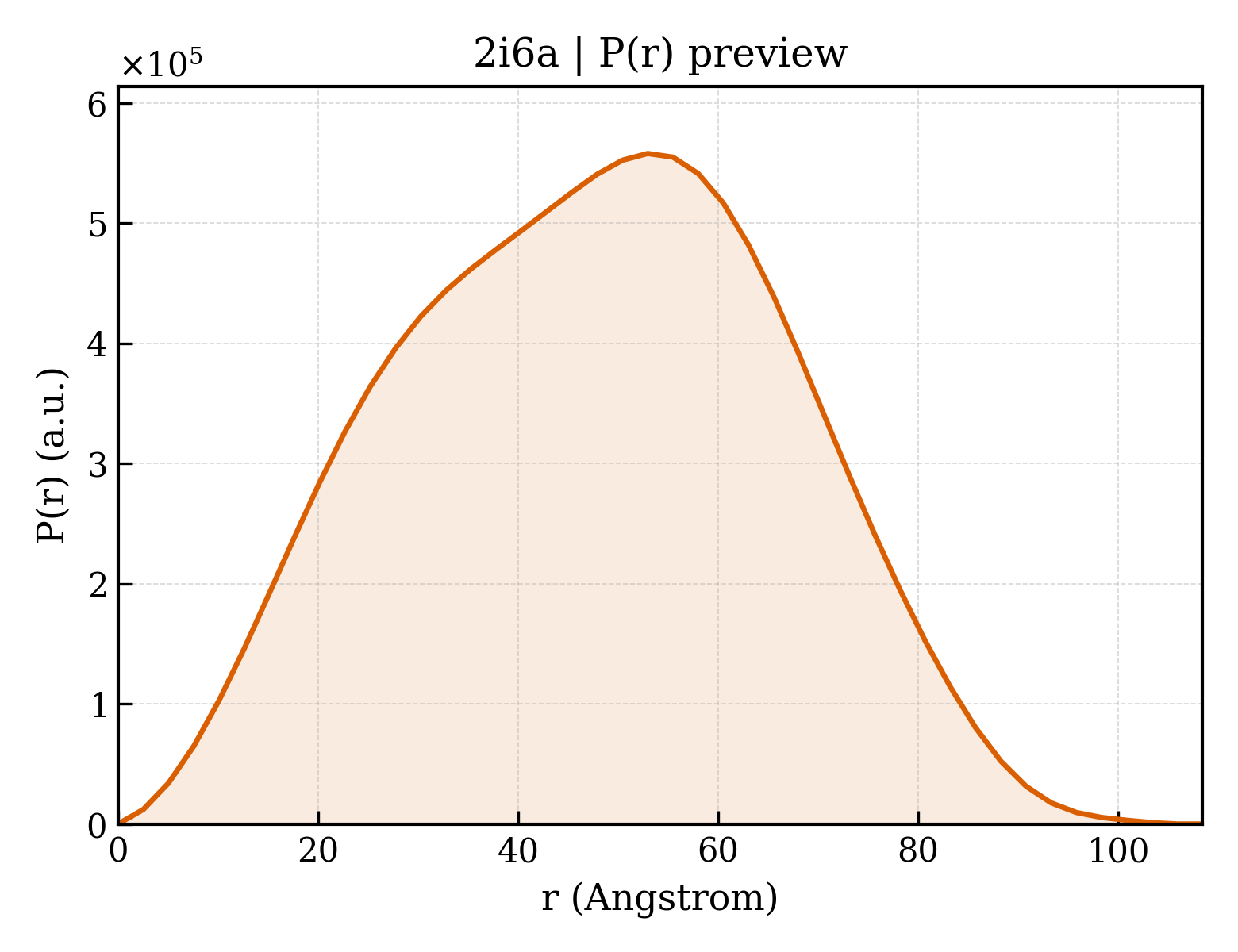

2i6a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.69 Å
Rg (electron density)	19.63 Å
Total Rg	20.57 Å
Atom count	2726
Residues	343
Excluded volume	48606 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i6a__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2i6a__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2i6a__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2i6a__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Adenosine kinase
Molecular weight formula_weight	38755.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11414

MTSVRENILFGMGNPLLDISAVVDKDFLDKYSLKPNDQILAEDKHKELFDELVKKFKVEYHAGGSTQNSIKVAQWMIQQPHKAATFFGCIGIDKFGEILKRKAAEAHVDAHYYEQNEQPTGTCAACITGDNRSLIANLAAANCYKKEKHLDLEKNWMLVEKARVCYIAGFFLTVSPESVLKVAHHASENNRIFTLNLSAPFISQFYKESLMKVMPYVDILFGNETEAATFAREQGFETKDIKEIAKKTQALPKMNSKRQRIVIFTQGRDDTIMATESEVTAFAVLDQDQKEIIDTNGAGDAFVGGFLSQLVSDKPLTECIRAGHYAASIIIRRTGCTFPEKPDFH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	7-(5-DEOXY-BETA-D-RIBOFURANOSYL)-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-4-AMINE
Molecular weight formula_weight	376.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	510

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2i6aa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.1 — Ribokinase-like

Domain ID domain_id	d2i6ab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.1 — Ribokinase-like

Domain ID domain_id	d2i6ac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.1 — Ribokinase-like

Domain ID domain_id	d2i6ad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.1 — Ribokinase-like

CATH v4.4 (8 domains)

Domain ID domain_id	2i6aA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2i6aA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2i6aB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2i6aB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2i6aC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2i6aC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2i6aD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2i6aD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	61.850 Å
Unit-cell length b length_b	66.930 Å
Unit-cell length c length_c	87.140 Å
Unit-cell angle α angle_alpha	97.76 °
Unit-cell angle β angle_beta	103.70 °
Unit-cell angle γ angle_gamma	89.95 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.1810
R_free r_free	0.2710
