2i6e

Crystal structure of protein DR0370 from Deinococcus radiodurans, Pfam DUF178

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

Deinococcus radiodurans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 9 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 9 water × 4	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 water × 2	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 water × 2	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9RXE3_DEIRA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–293； UniProt 2–291 Author chain B； PDBConstruct 4–293； UniProt 2–291 Author chain C； PDBConstruct 4–293； UniProt 2–291 Author chain D； PDBConstruct 4–293； UniProt 2–291 Author chain E； PDBConstruct 4–293； UniProt 2–291 Author chain F； PDBConstruct 4–293； UniProt 2–291 Author chain G； PDBConstruct 4–293； UniProt 2–291 Author chain H； PDBConstruct 4–293； UniProt 2–291

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i6e
Deposition date deposition_date	2006-08-28
Structure title title	Crystal structure of protein DR0370 from Deinococcus radiodurans, Pfam DUF178
Keywords keywords	;hypothetical protein, Pfam:DUF178, NYSGXRC, 10093b, Structural Genomics, PSI-2, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i6e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i6e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

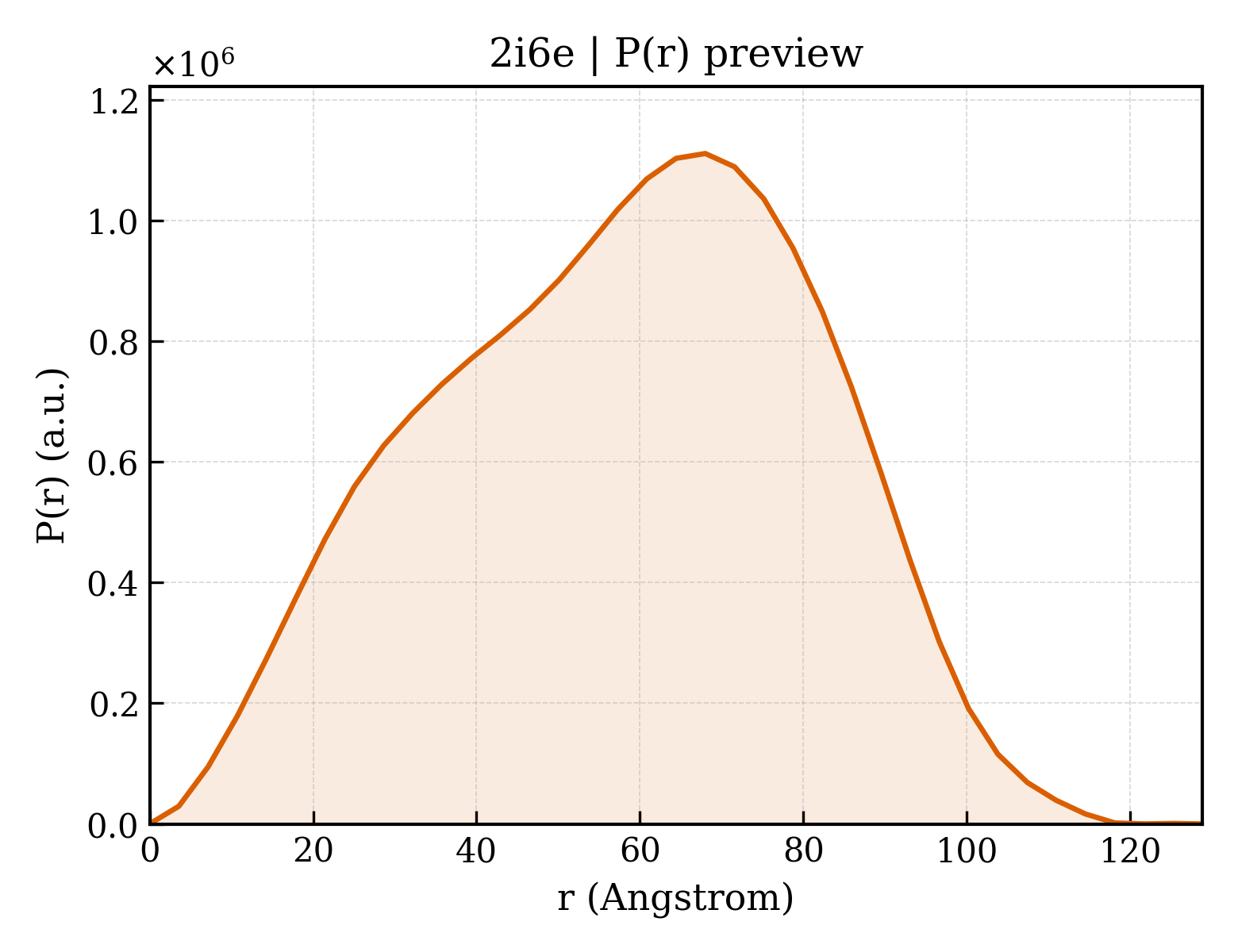

2i6e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.57 Å
Rg (electron density)	37.53 Å
Total Rg	37.81 Å
Atom count	8485
Residues	1072
Excluded volume	151090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i6e__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2i6e__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2i6e__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2i6e__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`2i6e__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`2i6e__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein
Molecular weight formula_weight	33364.0 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	17623

MSLTNHHPSSTGPQHPYRAGWIHFTNVAPILDSLELPPGVTAITGVPTQMNAALLSGEVDIANVSAVEFIRHADTLAALPDFSVAVLGPVYSVNLFHTCPLPELRRVALTSQSAMSVALLEVLLRQKGLSPVLERAEGTAESLLAAGYDGVLRIGDDALREWYGVVGPLTPERTMTSLPHTGRGITVTDLAQEWFDLTGHPFTFAVWAYRKDNPPPAALLQAMREARRRGIGHLAEVSQRHAEKLGLPERVVQHYLWNFRYHLEAPDRLGLREFADLAVPGHAELTFGAREEAEGHHHHHH

Source Source

Source organism organism	Deinococcus radiodurans
NCBI taxonomy ID ncbi_taxonomy_id	1299
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	653

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2i6ea1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6eb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6ec_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6ed_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6ee_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6ef_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6eg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d2i6eh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

CATH v4.4 (16 domains)

Domain ID domain_id	2i6eA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	2i6eH02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

Unit-cell length a length_a	75.310 Å
Unit-cell length b length_b	139.370 Å
Unit-cell length c length_c	153.615 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	48.030 Å
R factor r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2350

Crystal structure of protein DR0370 from Deinococcus radiodurans, Pfam DUF178

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2i6e__assembly_1__model_1

2i6e__assembly_1__model_1 | I(q)

2i6e__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (1)

Crystal structure of protein DR0370 from Deinococcus radiodurans, Pfam DUF178

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2i6e__assembly_1__model_1

2i6e__assembly_1__model_1 | I(q)

2i6e__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (1)
