SAXSdb — 2i8c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

D-alanine-D-alanine ligase

Staphylococcus aureus subsp. aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDL_STAAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–356； UniProt 1–356 Author chain B； PDBConstruct 1–356； UniProt 1–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2i8c
Deposition date deposition_date	2006-09-01
Structure title title	Allosteric inhibition of Staphylococcus aureus D-alanine:D-alanine ligase revealed by crystallographic studies
Keywords keywords	d-alanine:d-alanine ligase, ADP complex, Staphylococcus aureus, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2i8c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2i8c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

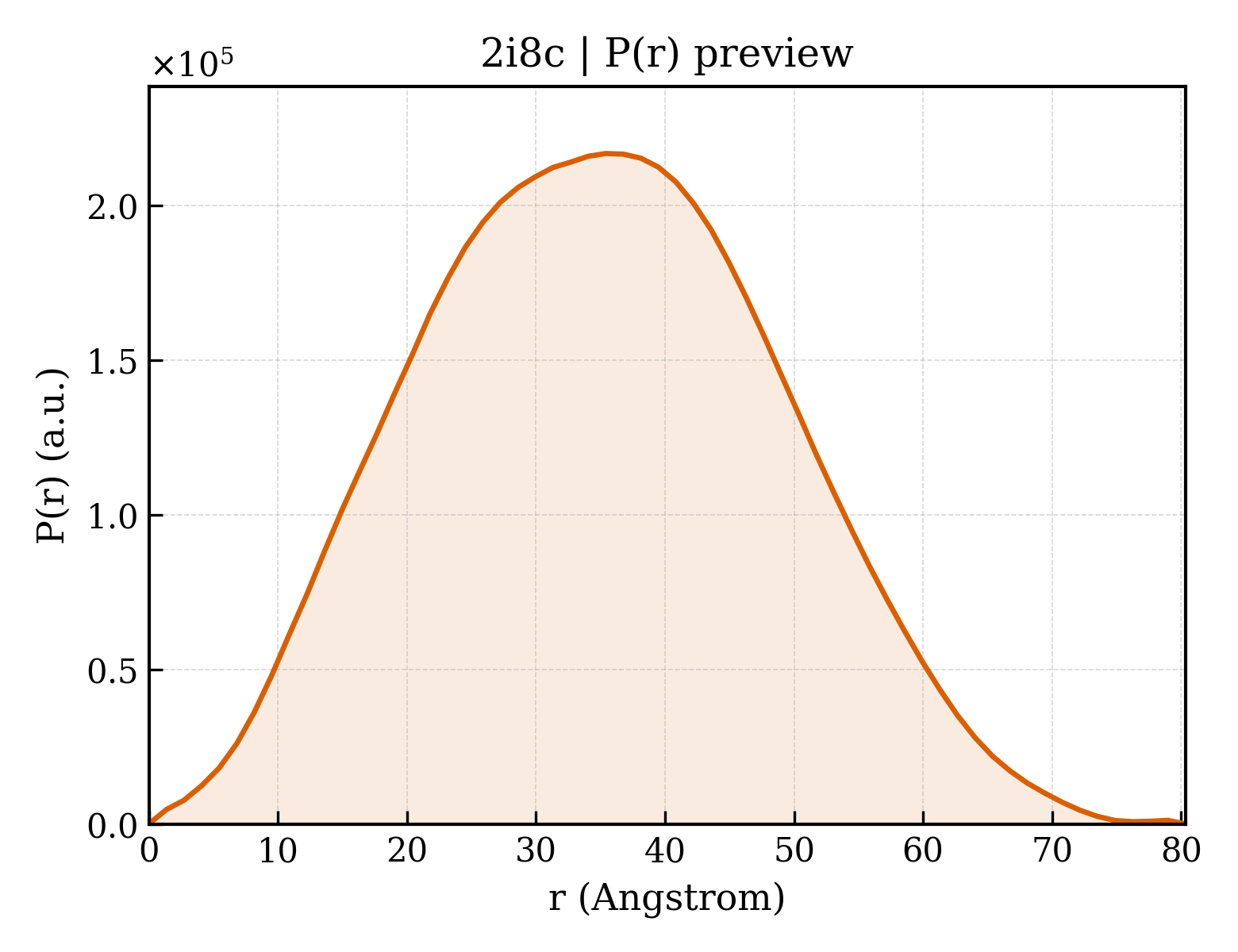

2i8c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.78 Å
Rg (electron density)	25.59 Å
Total Rg	26.47 Å
Atom count	5561
Residues	692
Excluded volume	98693 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2i8c__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	D-alanine-D-alanine ligase
Molecular weight formula_weight	41348.6 kDa
EC 编号 ec_number	6.3.2.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5561

MTKENICIVFGGKSAEHEVSILTAQNVLNAIDKDKYHVDIIYITNDGDWRKQNNITAEIKSTDELHLENGEALEISQLLKESSSGQPYDAVFPLLHGPNGEDGTIQGLFEVLDVPYVGNGVLSAASSMDKLVMKQLFEHRGLPQLPYISFLRSEYEKYEHNILKLVNDKLNYPVFVKPANLGSSVGISKCNNEAELKEGIKEAFQFDRKLVIEQGVNAREIEVAVLGNDYPEATWPGEVVKDVAFYDYKSKYKDGKVQLQIPADLDEDVQLTLRNMALEAFKATDCSGLVRADFFVTEDNQIYINETNAMPGFTAFSMYPKLWENMGLSYPELITKLIELAKERHQDKQKNKYKIDRSHHHHHH

Source Source

Source organism organism	Staphylococcus aureus subsp. aureus
NCBI taxonomy ID ncbi_taxonomy_id	93062
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2i8ca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.0 — automated matches

Domain ID domain_id	d2i8ca2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.0 — automated matches

Domain ID domain_id	d2i8ca3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2i8cb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.0 — automated matches

Domain ID domain_id	d2i8cb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.0 — automated matches

Domain ID domain_id	d2i8cb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	2i8cA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2i8cA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	2i8cA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

Domain ID domain_id	2i8cB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2i8cB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	2i8cB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

▶

Unit-cell length a length_a	67.802 Å
Unit-cell length b length_b	66.972 Å
Unit-cell length c length_c	78.992 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.05 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.460 Å
Low-resolution limit resolution_low	47.510 Å
R factor r_factor	0.2128
R_work r_work	0.2099
R_free r_free	0.2693
