2igo

Crystal structure of pyranose 2-oxidase H167A mutant with 2-fluoro-2-deoxy-D-glucose

Method: X-RAY DIFFRACTION D_max: 234.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

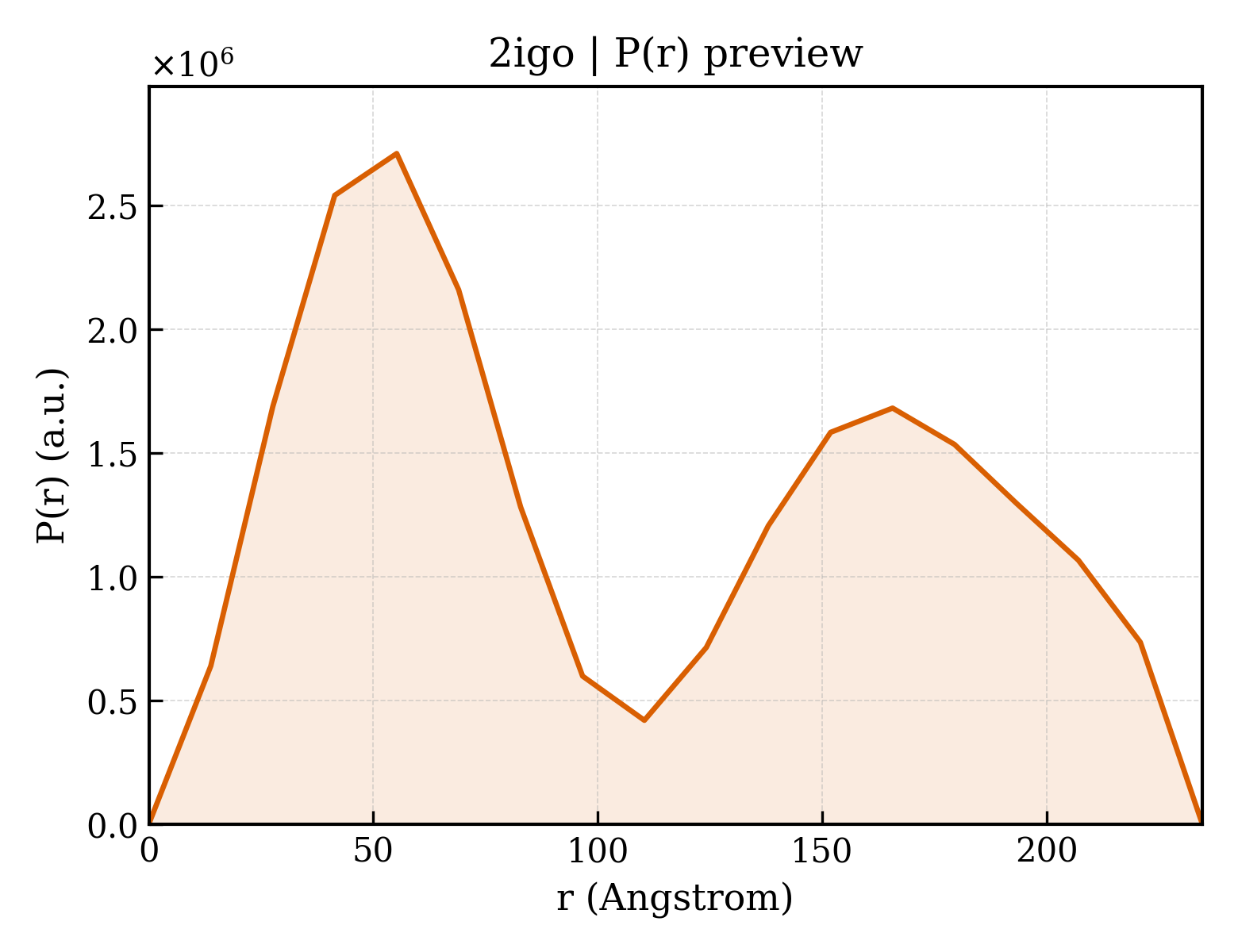

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2igo
沉积日期 deposition_date	2006-09-22
结构标题 title	Crystal structure of pyranose 2-oxidase H167A mutant with 2-fluoro-2-deoxy-D-glucose
关键词 keywords	;OXIDOREDUCTASE, GMC OXIDOREDUCTASE, H167A MUTANT, 2-FLUORO-2-DEOXY-D-GLUCOSE, ROSSMANN FOLD, PHBH FOLD, HOMOTETRAMER, 8-ALPHA-(N3) HISTIDYL FLAVINYLATION ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	91.91 Å
回转半径 Rg (电子) rg_electron	93.14 Å
零角强度 I(0) i0	3925900000.00
分子量 molecular_weight	524090.0 kDa
排除体积 excluded_volume	650140 Å³
包络体积 envelope_volume	1048500 Å³
水化壳体积 shell_volume	90834 Å³
包络直径 envelope_diameter	291.5 Å
壳层 Rg shell_rg	99.45 Å
包络 Rg envelope_rg	88.31 Å
形状 Rg shape_rg	93.14 Å
总 Rg total_rg	93.16 Å
总原子数 total_atoms	36872
残基数 n_residues	4616
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	234.7 Å
Rg (实空间) rg_real	88.18 Å
Rg 误差 (实空间) rg_real_error	1.16 Å
I(0) (实空间) i0_real	3.7900e+09
I(0) 误差 (实空间) i0_real_error	7.7930e+07
Rg (倒空间) rg_reciprocal	85.06 Å
I(0) (倒空间) i0_reciprocal	3842000000.0000
解质量估计 total_estimate	0.6427
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	55.2 Å
偏度 Skewness skewness	0.243
峰度 Kurtosis kurtosis	-1.381
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.2571
最高正则化参数 α highest_alpha	165800000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.099; Stabil: 0.908; Sysdev: 1.000; Positv: 1.000; Valcen: 0.337; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Pyranose oxidase
分子量 formula_weight	69346.7 kDa
EC 编号 ec_number	1.1.3.10
突变 mutation	H167A
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,C,E,F,H,G
原子数 atom_count	38602

MSTSSSDPFFNFAKSSFRSAAAQKASASSLPPLPGPDKKVPGMDIKYDVVIVGSGPIGCTYARELVGAGYKVAMFDIGEIDSGLKIGAHKKNTVEYQKNIDKFVNVIQGQLMSVSVPVNTLVVDTLSPTSWQASTFFVRNGSNPEQDPLRNLSGQAVTRVVGGMSTAWTCATPRFDREQRPLLVKDDADADDAEWDRLYTKAESYFQTGTDQFKESIRHNLVLNKLTEEYKGQRDFQQIPLAATRRSPTFVEWSSANTVFDLQNRPNTDAPEERFNLFPAVACERVVRNALNSEIESLHIHDLISGDRFEIKADVYVLTAGAVHNTQLLVNSGFGQLGRPNPANPPELLPSLGSYITEQSLVFCQTVMSTELIDSVKSDMTIRGTPGELTYSVTYTPGASTNKHPDWWNEKVKNHMMQHQEDPLPIPFEDPEPQVTTLFQPSHPWHTQIHRDAFSYGAVQQSIDSRLIVDWRFFGRTEPKEENKLWFSDKITDAYNMPQPTFDFRFPAGRTSKEAEDMMTDMCVMSAKIGGFLPGSLPQFMEPGLVLHLGGTHRMGFDEKEDNCCVNTDSRVFGFKNLFLGGCGNIPTAYGANPTLTAMSLAIKSCEYIKQNFTPSPFTSEAQ

来源 Source

来源生物 organism	Trametes ochracea
NCBI 分类编号 ncbi_taxonomy_id	230624
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	2-deoxy-2-fluoro-beta-D-glucopyranose
分子量 formula_weight	182.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1730

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (16 domains)

结构域编号 domain_id	d2igoa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igoa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igob1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igob2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igoc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igoc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igod1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igod2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igoe1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igoe2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igof1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igof2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igog1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igog2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

结构域编号 domain_id	d2igoh1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2igoh2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.1 — GMC oxidoreductases

CATH v4.4 (8 domains)

结构域编号 domain_id	2igoA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2igoH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
同源超家族 H-superfamily homologous superfamily	50 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	168.590 Å
晶胞边长 b length_b	103.080 Å
晶胞边长 c length_c	169.040 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	106.30 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.950 Å
最低分辨率 resolution_low	38.900 Å
R 因子 r_factor	0.1840
R_work r_work	0.1836
R_free r_free	0.2206
