2ih8

A low-dose crystal structure of a recombinant Melanocarpus albomyces laccase

Method: X-RAY DIFFRACTION D_max: 107.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

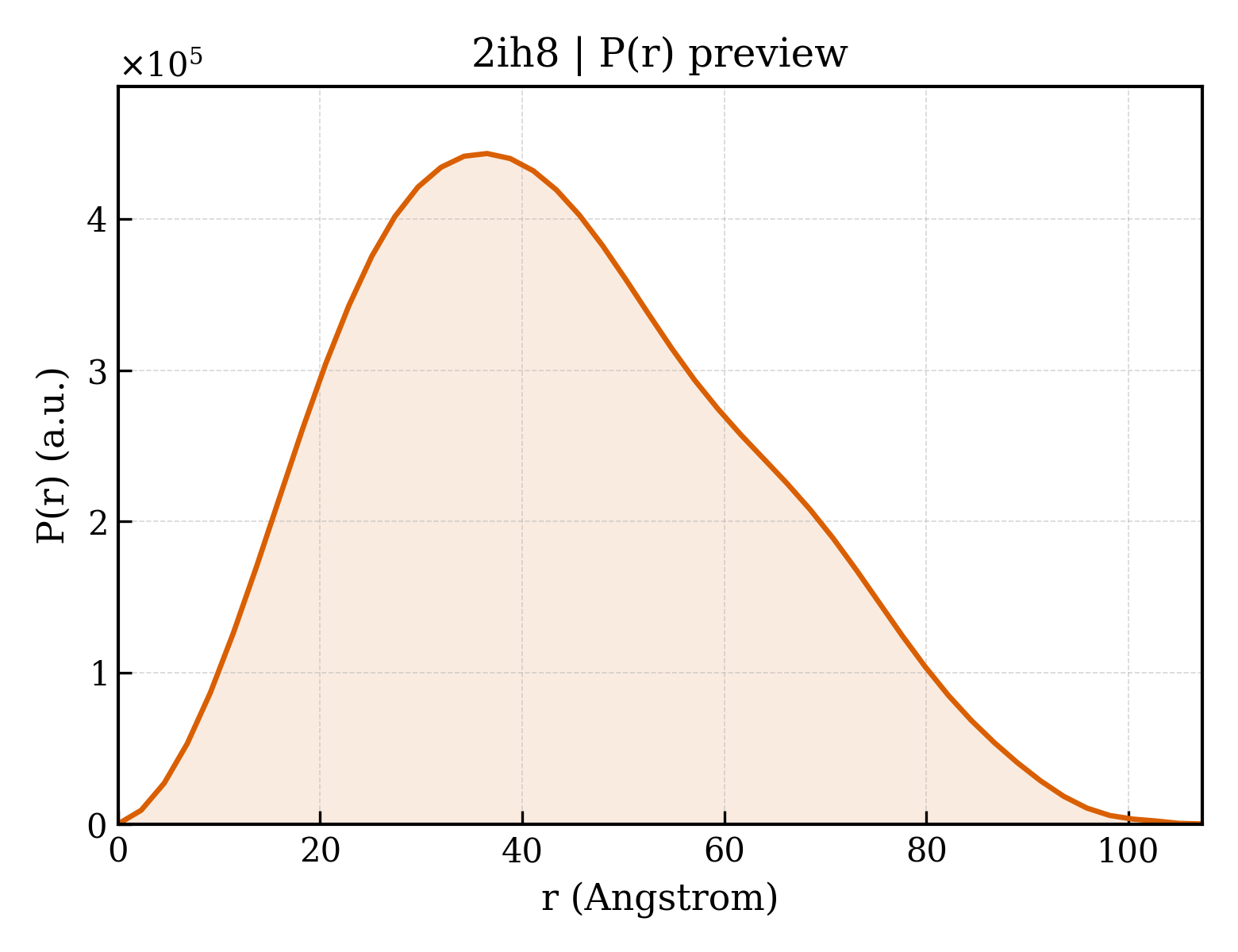

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ih8
沉积日期 deposition_date	2006-09-26
结构标题 title	A low-dose crystal structure of a recombinant Melanocarpus albomyces laccase
关键词 keywords	laccase, multicopper oxidase, redox-enzyme, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.56 Å
回转半径 Rg (电子) rg_electron	32.76 Å
零角强度 I(0) i0	279582000.00
分子量 molecular_weight	130460.0 kDa
排除体积 excluded_volume	160990 Å³
包络体积 envelope_volume	190840 Å³
水化壳体积 shell_volume	47779 Å³
包络直径 envelope_diameter	111.1 Å
壳层 Rg shell_rg	40.18 Å
包络 Rg envelope_rg	32.68 Å
形状 Rg shape_rg	32.74 Å
总 Rg total_rg	33.31 Å
总原子数 total_atoms	9177
残基数 n_residues	1118
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.3 Å
Rg (实空间) rg_real	33.57 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	2.7960e+08
I(0) 误差 (实空间) i0_real_error	4.5160e+06
Rg (倒空间) rg_reciprocal	33.57 Å
I(0) (倒空间) i0_reciprocal	279600000.0000
解质量估计 total_estimate	0.8877
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.5 Å
偏度 Skewness skewness	0.342
峰度 Kurtosis kurtosis	-0.508
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	127700000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.837

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Laccase-1
分子量 formula_weight	61845.4 kDa
EC 编号 ec_number	1.10.3.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10333

EPTCNTPSNRACWSDGFDINTDYEVSTPDTGVTQSYVFNLTEVDNWMGPDGVVKEKVMLINGNIMGPNIVANWGDTVEVTVINNLVTNGTSIHWHGIHQKDTNLHDGANGVTECPIPPKGGQRTYRWRARQYGTSWYHSHFSAQYGNGVVGTIQINGPASLPYDIDLGVFPITDYYYRAADDLVHFTQNNAPPFSDNVLINGTAVNPNTGEGQYANVTLTPGKRHRLRILNTSTENHFQVSLVNHTMTVIAADMVPVNAMTVDSLFLAVGQRYDVVIDASRAPDNYWFNVTFGGQAACGGSLNPHPAAIFHYAGAPGGLPTDEGTPPVDHQCLDTLDVRPVVPRSVPVNSFVKRPDNTLPVALDLTGTPLFVWKVNGSDINVDWGKPIIDYILTGNTSYPVSDNIVQVDAVDQWTYWLIENDPEGPFSLPHPMHLHGHDFLVLGRSPDVPAASQQRFVFDPAVDLARLNGDNPPRRDTTMLPAGGWLLLAFRTDNPGAWLFHCHIAWHVSGGLSVDFLERPADLRQRISQEDEDDFNRVCDEWRAYWPTNPYPKIDSGL

来源 Source

来源生物 organism	Melanocarpus albomyces
NCBI 分类编号 ncbi_taxonomy_id	204285
宿主生物 host_organism	Hypocrea jecorina

Entity 2 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	7

Entity 7 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 8 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 10 non-polymer

描述 description	OXYGEN MOLECULE
分子量 formula_weight	32.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1156

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2ih8a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2ih8a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2ih8a3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2ih8b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2ih8b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2ih8b3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

CATH v4.4 (6 domains)

结构域编号 domain_id	2ih8A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ih8A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ih8A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ih8B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ih8B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ih8B03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	173.060 Å
晶胞边长 b length_b	61.810 Å
晶胞边长 c length_c	123.910 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.36 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.1827
R_work r_work	0.1827
R_free r_free	0.2135
