2ii5

Crystal structure of a cubic core of the dihydrolipoamide acyltransferase (E2b) component in the branched-chain alpha-ketoacid dehydrogenase complex (BCKDC), Isobutyryl-Coenzyme A-bound form

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	ACETATE ION × 48 CHLORIDE ION × 36 ISOBUTYRYL-COENZYME A × 24 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ODB2_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–262； UniProt 223–482 Author chain B； PDBConstruct 3–262； UniProt 223–482 Author chain C； PDBConstruct 3–262； UniProt 223–482 Author chain D； PDBConstruct 3–262； UniProt 223–482 Author chain E； PDBConstruct 3–262； UniProt 223–482 Author chain F； PDBConstruct 3–262； UniProt 223–482 Author chain G； PDBConstruct 3–262； UniProt 223–482 Author chain H； PDBConstruct 3–262； UniProt 223–482

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ii5
Deposition date deposition_date	2006-09-27
Structure title title	Crystal structure of a cubic core of the dihydrolipoamide acyltransferase (E2b) component in the branched-chain alpha-ketoacid dehydrogenase complex (BCKDC), Isobutyryl-Coenzyme A-bound form
Keywords keywords	cubic core, homo trimer, Isobutyryl-CoA-bound form, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ii5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ii5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

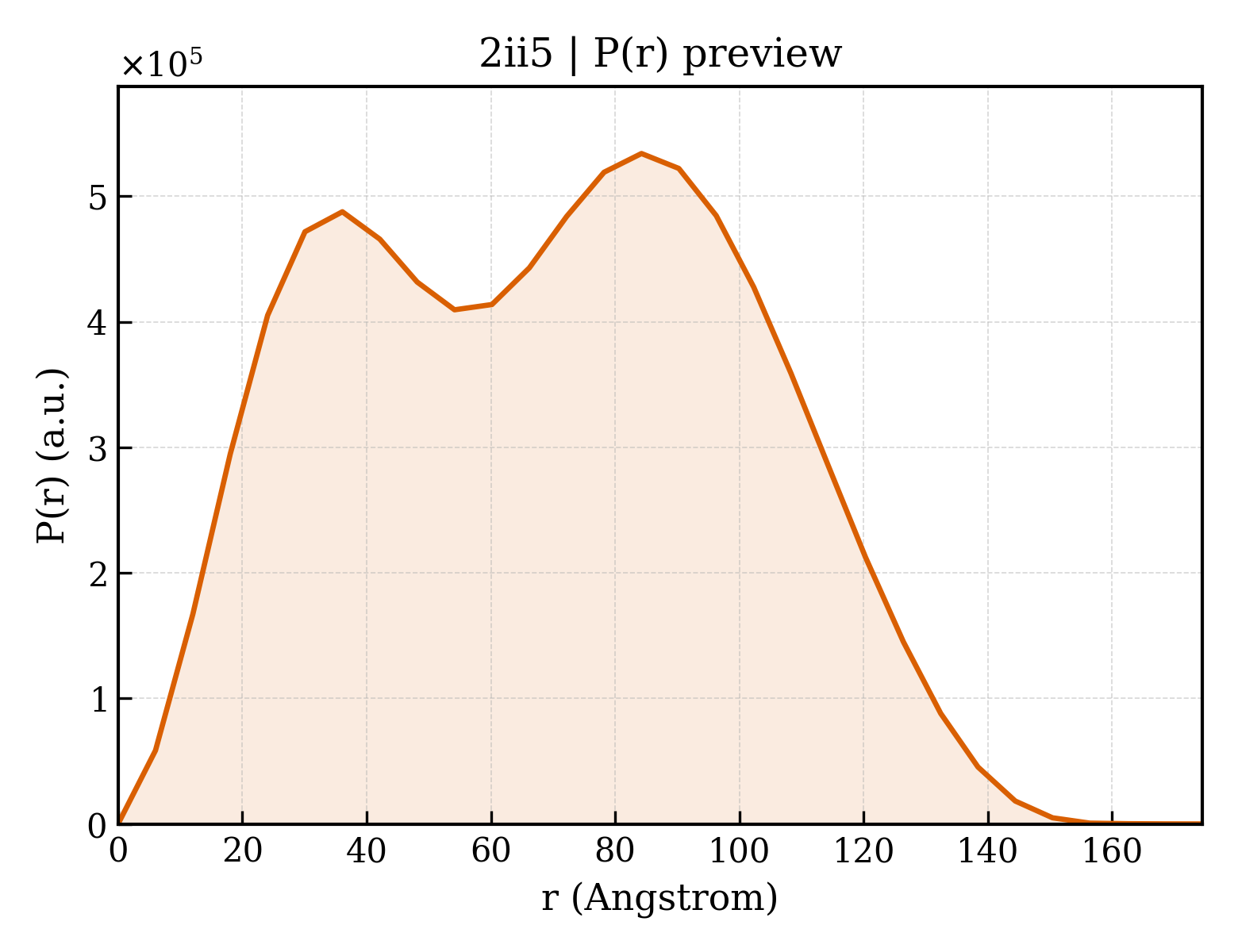

2ii5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.24 Å
Rg (electron density)	61.20 Å
Total Rg	61.46 Å
Atom count	44267
Residues	5616
Excluded volume	796300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ii5__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex
Molecular weight formula_weight	28726.6 kDa
EC 编号 ec_number	2.3.1.168
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	14899

GHAEIMPPPPKPKDRTIPIPISKPPVFIGKDRTEPVKGFHKAMVKTMSAALKIPHFGYCDEVDLTELVKLREELKPIAFARGIKLSFMPFFLKAASLGLLQFPILNASVDENCQNITYKASHNIGIAMDTEQGLIVPNVKNVQIRSIFEIATELNRLQKLGSAGQLSTNDLIGGTFTLSNIGSIGGTYAKPVILPPEVAIGALGTIKALPRFNEKGEVCKAQIMNVSWSADHRIIDGATVSRFSNLWKSYLENPAFMLLDLK

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	ISOBUTYRYL-COENZYME A
Molecular weight formula_weight	837.6 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2ii5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

Domain ID domain_id	d2ii5h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	2ii5A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5C01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5D01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5E01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5F01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5G01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	2ii5H01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

▶

Unit-cell length a length_a	194.774 Å
Unit-cell length b length_b	194.774 Å
Unit-cell length c length_c	172.131 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1990
R_work r_work	0.1960
R_free r_free	0.2510

Crystal structure of a cubic core of the dihydrolipoamide acyltransferase (E2b) component in the branched-chain alpha-ketoacid dehydrogenase complex (BCKDC), Isobutyryl-Coenzyme A-bound form
