2iir

Acetate kinase from a hypothermophile Thermotoga maritima

Method: X-RAY DIFFRACTION D_max: 200.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

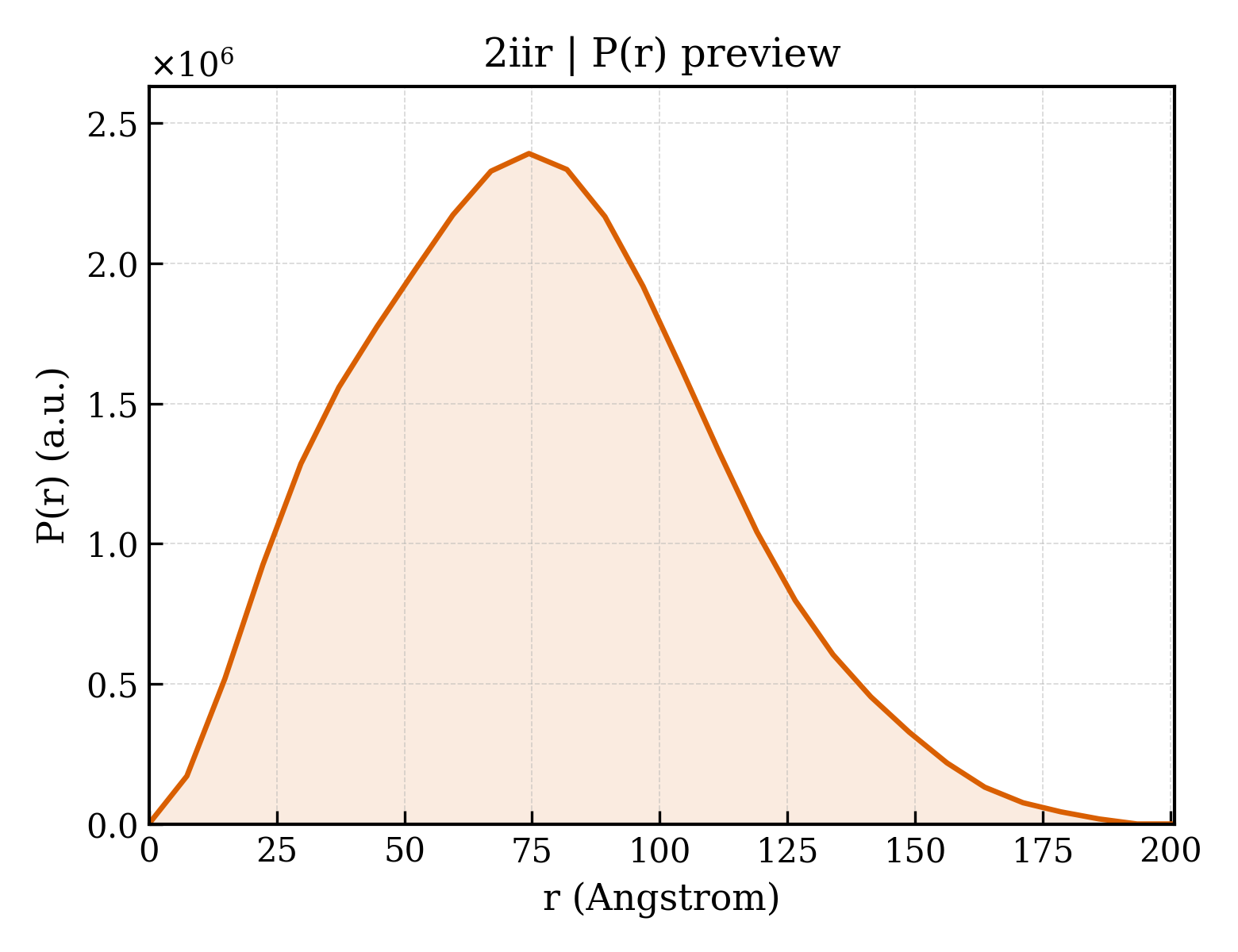

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2iir
沉积日期 deposition_date	2006-09-28
结构标题 title	Acetate kinase from a hypothermophile Thermotoga maritima
关键词 keywords	Transferase, acetate kinase, thermotoga maritima; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.09 Å
回转半径 Rg (电子) rg_electron	59.07 Å
零角强度 I(0) i0	2635020000.00
分子量 molecular_weight	444520.0 kDa
排除体积 excluded_volume	562230 Å³
包络体积 envelope_volume	800830 Å³
水化壳体积 shell_volume	113220 Å³
包络直径 envelope_diameter	207.5 Å
壳层 Rg shell_rg	61.05 Å
包络 Rg envelope_rg	58.07 Å
形状 Rg shape_rg	59.04 Å
总 Rg total_rg	59.22 Å
总原子数 total_atoms	31230
残基数 n_residues	4000
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	200.8 Å
Rg (实空间) rg_real	59.09 Å
Rg 误差 (实空间) rg_real_error	1.96 Å
I(0) (实空间) i0_real	2.6350e+09
I(0) 误差 (实空间) i0_real_error	4.9840e+07
Rg (倒空间) rg_reciprocal	59.07 Å
I(0) (倒空间) i0_reciprocal	2635000000.0000
解质量估计 total_estimate	0.8663
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	74.4 Å
偏度 Skewness skewness	0.311
峰度 Kurtosis kurtosis	-0.307
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	165500000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.696

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 20 domains

CATH v4.4 (20 domains)

结构域编号 domain_id	2iirA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2iirJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.434 Å
晶胞边长 b length_b	300.333 Å
晶胞边长 c length_c	334.898 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	80

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2300
R_work r_work	0.2290
R_free r_free	0.2530

描述 description	Acetate kinase
分子量 formula_weight	44867.8 kDa
EC 编号 ec_number	2.7.2.1
来源方法 src_method	man
拷贝数 entity_count	10

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	31280

Acetate kinase from a hypothermophile Thermotoga maritima

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 water

6. 折叠分类 (SCOP + CATH) 20 domains

CATH v4.4 (20 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Thermotoga maritima
NCBI 分类编号 ncbi_taxonomy_id	2336
宿主生物 host_organism	Escherichia coli BL21

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	50
