SAXSdb — 2ijg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cryptochrome DASH, chloroplast/mitochondrial

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FLAVIN-ADENINE DINUCLEOTIDE × 1 5,10-METHENYL-6,7,8-TRIHYDROFOLIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CRYD_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–526； UniProt 44–569

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ijg
Deposition date deposition_date	2006-09-29
Structure title title	Crystal Structure of cryptochrome 3 from Arabidopsis thaliana
Keywords keywords	photolyase; cryptochrome, LYASE, DNA BINDING PROTEIN; LYASE, DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ijg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ijg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

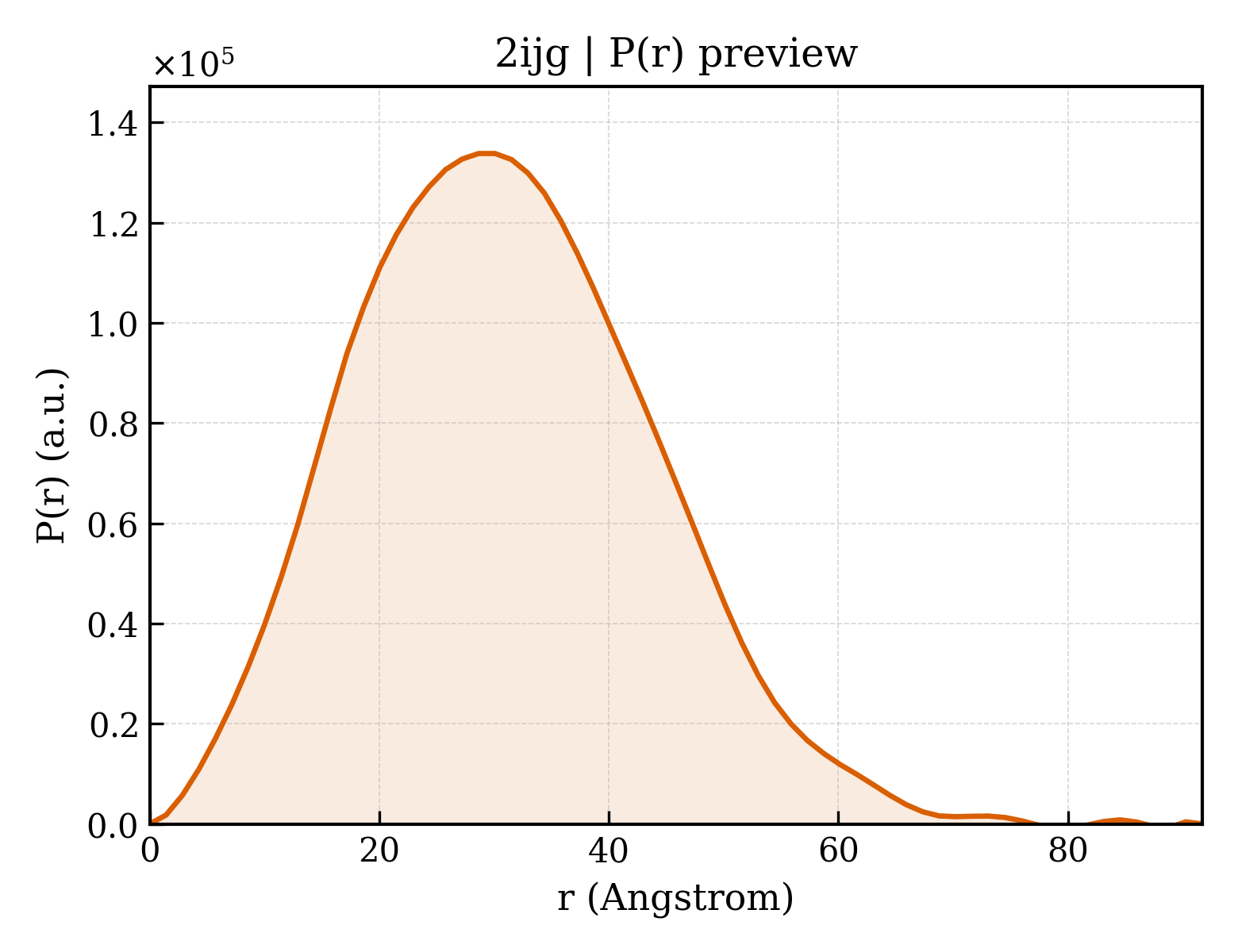

2ijg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.62 Å
Rg (electron density)	22.68 Å
Total Rg	23.68 Å
Atom count	4102
Residues	492
Excluded volume	72703 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ijg__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cryptochrome DASH, chloroplast/mitochondrial
Molecular weight formula_weight	60463.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	4333

MNDHIHRVPALTEEEIDSVAIKTFERYALPSSSSVKRKGKGVTILWFRNDLRVLDNDALYKAWSSSDTILPVYCLDPRLFHTTHFFNFPKTGALRGGFLMECLVDLRKNLMKRGLNLLIRSGKPEEILPSLAKDFGARTVFAHKETCSEEVDVERLVNQGLKRVGNSTKLELIWGSTMYHKDDLPFDVFDLPDVYTQFRKSVEAKCSIRSSTRIPLSLGPTPSVDDWGDVPTLEKLGVEPQEVTRGMRFVGGESAGVGRVFEYFWKKDLLKVYKETRNGMLGPDYSTKFSPWLAFGCISPRFIYEEVQRYEKERVANNSTYWVLFELIWRDYFRFLSIKCGNSLFHLGGPRNVQGKWSQDQKLFESWRDAKTGYPLIDANMKELSTTGFMSNRGRQIVCSFLVRDMGLDWRMGAEWFETCLLDYDPCSNYGNWTYGAGVGNDPREDRYFSIPKQAQNYDPEGEYVAFWLQQLRRLPKEKRHWPGRLMYMDTVVPLKHGNGPMAGGSKSGGGFRGSHSGRRSRHNGP

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	5,10-METHENYL-6,7,8-TRIHYDROFOLIC ACID
Molecular weight formula_weight	457.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	231

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2ijgX01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	2ijgX02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	2ijgX03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	579 — DNA Cyclobutane Dipyrimidine Photolyase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — DNA Cyclobutane Dipyrimidine Photolyase, subunit A, domain 3

▶

Unit-cell length a length_a	117.897 Å
Unit-cell length b length_b	117.897 Å
Unit-cell length c length_c	216.567 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2382
R_free r_free	0.2619
