SAXSdb — 2ijl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Molybdenum-binding transcriptional repressor

Agrobacterium tumefaciens str.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 8 1,2-ETHANEDIOL × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8UCD4_AGRT5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–133； UniProt 1–131 Author chain B； PDBConstruct 3–133； UniProt 1–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ijl
Deposition date deposition_date	2006-09-29
Structure title title	The structure of a putative ModE from Agrobacterium tumefaciens.
Keywords keywords	;molybdenum-binding, transcriptional repressor, structural genomics, DNA-binding protein, Agrobacterium tumefaciens, PSI-2, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, TRANSCRIPTION ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ijl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ijl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

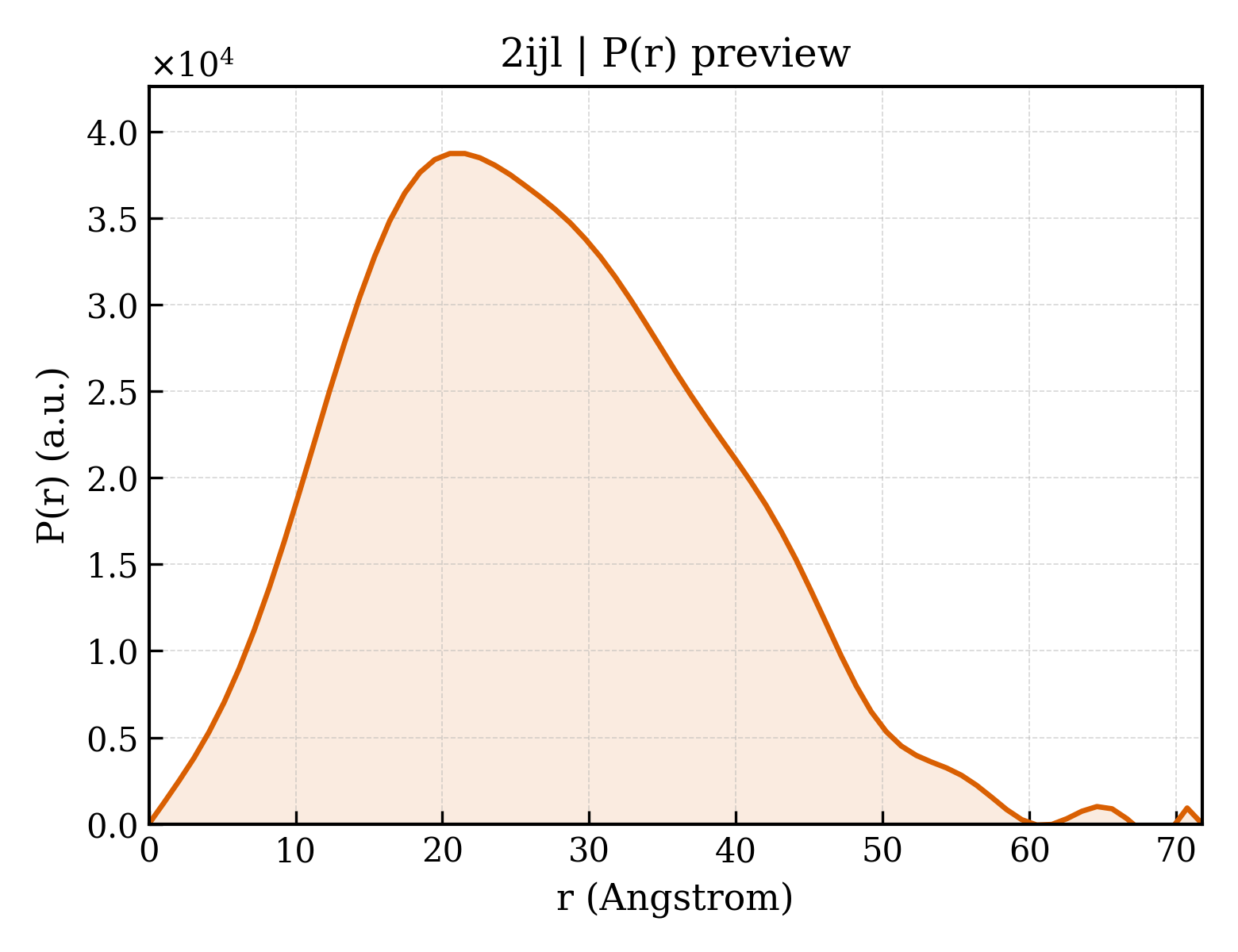

2ijl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.42 Å
Rg (electron density)	19.55 Å
Total Rg	20.11 Å
Atom count	1810
Residues	207
Excluded volume	32113 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ijl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Molybdenum-binding transcriptional repressor
Molecular weight formula_weight	15489.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1927

GHMSEKRLPLKPVLRIDFPPGERLGHGKVELMQLIAETGSISAAGRAMDMSYRRAWLLVDALNHMFRQPVICSQRGGKQGGGAALTVFGAELLERYRGMEERMNEALREDIDWLEANRNPQDALNRDREPPTLGS

Source Source

Source organism organism	Agrobacterium tumefaciens str.
NCBI taxonomy ID ncbi_taxonomy_id	176299
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	106

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2ijlA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2ijlB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	40.719 Å
Unit-cell length b length_b	79.536 Å
Unit-cell length c length_c	43.994 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	39.770 Å
R factor r_factor	0.1767
R_work r_work	0.1737
R_free r_free	0.2362

The structure of a putative ModE from Agrobacterium tumefaciens.
