SAXSdb — 2ikq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Suppressor of T-cell receptor signaling 1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STS1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–270； UniProt 369–638 Author chain B； PDBConstruct 1–270； UniProt 369–638 Author chain M； PDBConstruct 1–270； UniProt 369–638

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ikq
Deposition date deposition_date	2006-10-02
Structure title title	Crystal structure of mouse Sts-1 PGM domain in complex with phosphate
Keywords keywords	PGM; acid phosphatase; phospho-histidine enzyme, SIGNALING PROTEIN, IMMUNE SYSTEM; SIGNALING PROTEIN, IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ikq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ikq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

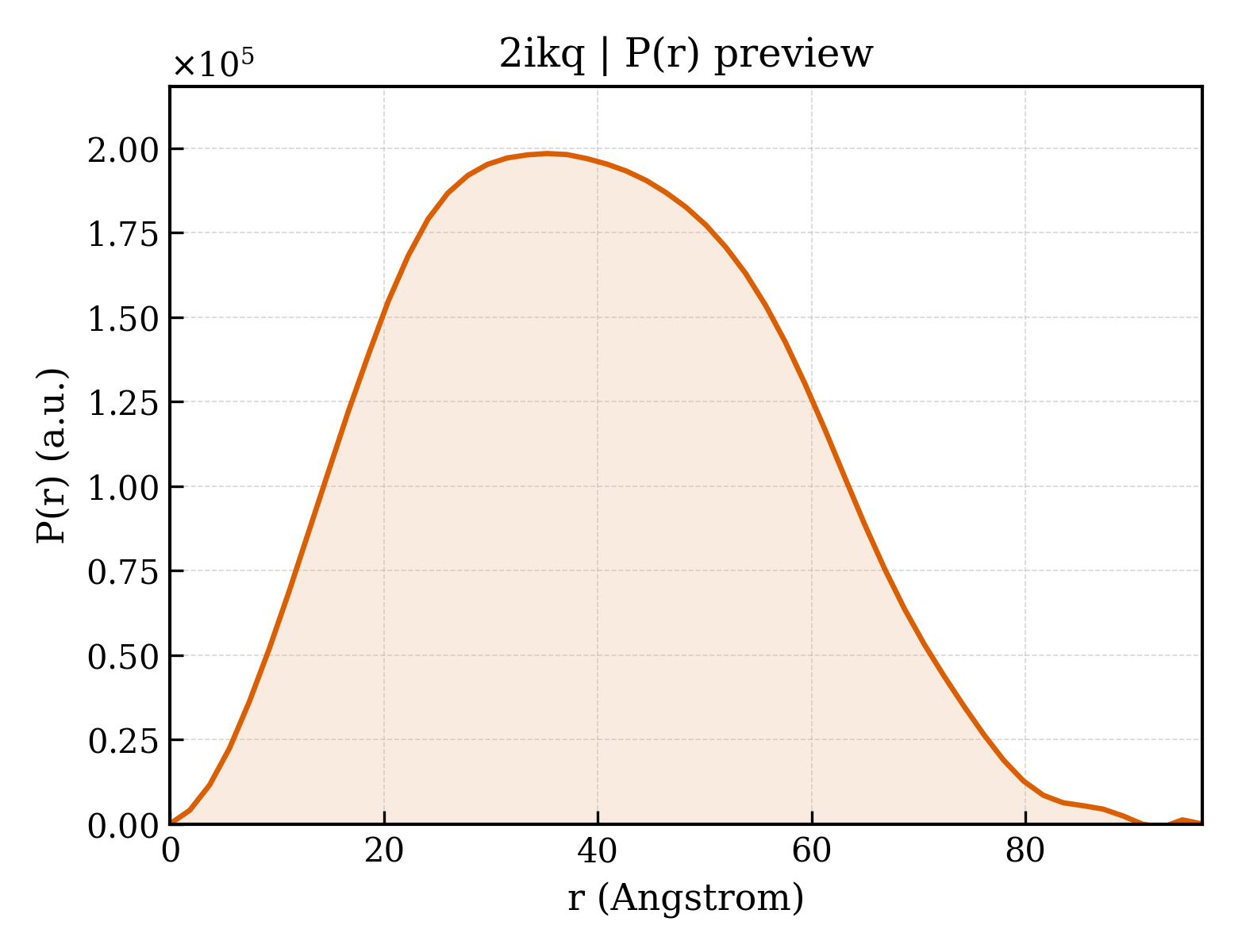

2ikq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.51 Å
Rg (electron density)	25.71 Å
Total Rg	26.54 Å
Atom count	4087
Residues	518
Excluded volume	72718 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ikq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ikq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Suppressor of T-cell receptor signaling 1
Molecular weight formula_weight	30363.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,M
Atom count atom_count	6128

GPQKRCLFVCRHGERMDVVFGKYWLSQCFDAKGRYIRTNLNMPHSLPQRSGGFRDYEKDAPITVFGCMQARLVGEALLESNTVIDHVYCSPSLRCVQTAHNILKGLQQDNHLKIRVEPGLFEWTKWVAGSTLPAWIPPSELAAANLSVDTTYRPHIPVSKLAISESYDTYINRSFQVTKEIISECKSKGNNILIVAHASSLEACTCQLQGLSPQNSKDFVQMVRKIPYLGFCSCEELGETGIWQLTDPPILPLTHGPTGGFNWRETLLQE

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2ikqA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	2ikqB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	2ikqM01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

▶

Unit-cell length a length_a	116.960 Å
Unit-cell length b length_b	74.671 Å
Unit-cell length c length_c	101.279 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.609 Å
Low-resolution limit resolution_low	99.500 Å
R factor r_factor	0.2491
R_work r_work	0.2477
R_free r_free	0.2752

Crystal structure of mouse Sts-1 PGM domain in complex with phosphate
