2iml

Crystal structure of a hypothetical protein from Archaeoglobus fulgidus binding riboflavin 5'-phosphate

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FLAVIN MONONUCLEOTIDE × 1 GLYCEROL × 3 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	FLAVIN MONONUCLEOTIDE × 1 GLYCEROL × 5 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O28442_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–191； UniProt 2–189 Author chain B； PDBConstruct 4–191； UniProt 2–189 Author chain C； PDBConstruct 4–191； UniProt 2–189 Author chain D； PDBConstruct 4–191； UniProt 2–189

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2iml
Deposition date deposition_date	2006-10-04
Structure title title	Crystal structure of a hypothetical protein from Archaeoglobus fulgidus binding riboflavin 5'-phosphate
Keywords keywords	;FMN binding, PSI-2, Structural Genomics, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, FLAVOPROTEIN ;; FLAVOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2iml__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2iml__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

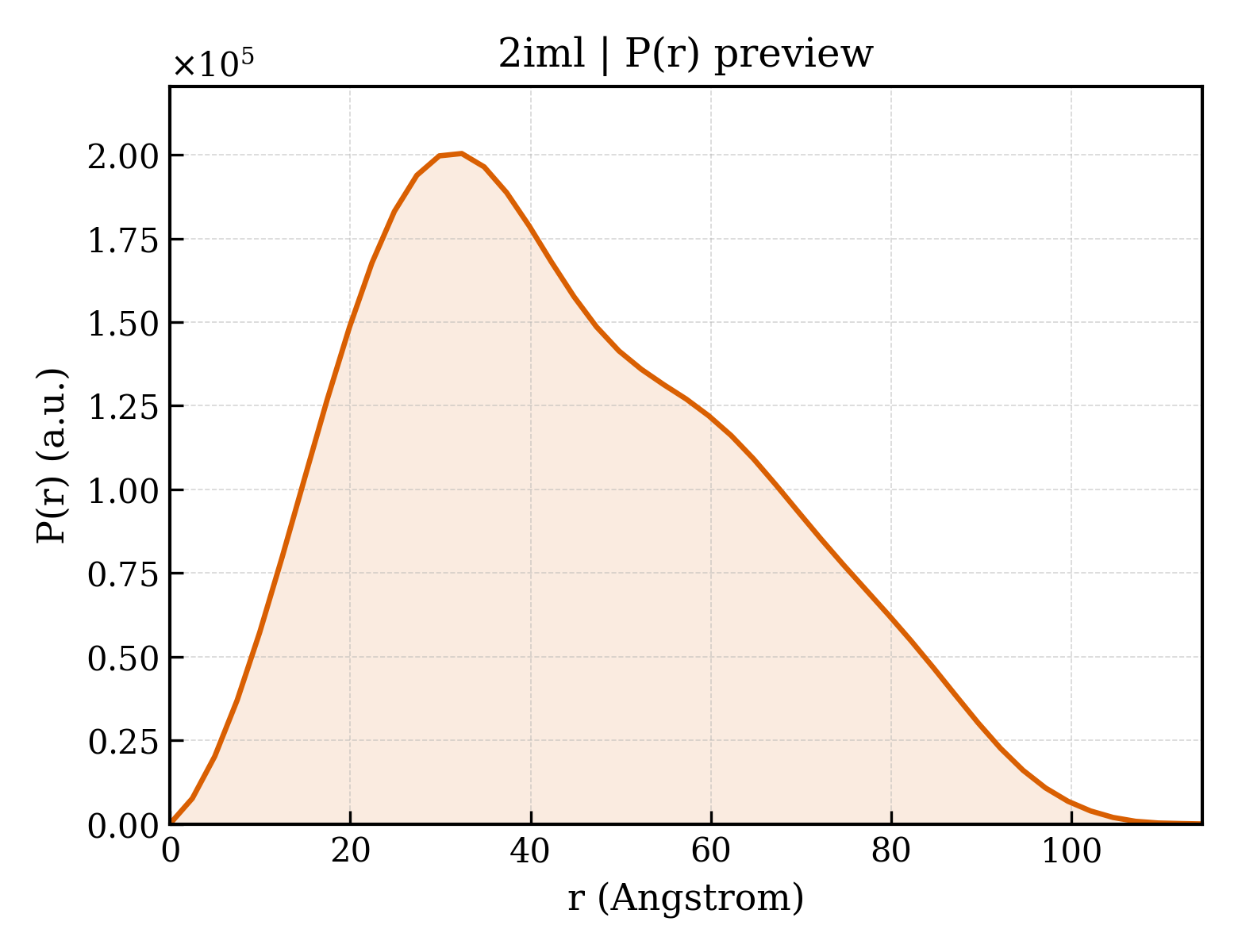

2iml__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.89 Å
Rg (electron density)	21.58 Å
Total Rg	22.42 Å
Atom count	3063
Residues	375
Excluded volume	54295 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2iml__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2iml__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein
Molecular weight formula_weight	22711.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7147

MSLRLADFGFTDGINEIIAITENEDGSWNAAPIGIIVEDSSSDTAKAKLYRNRTRANLERSGVLFANVTDDALVFAVSSFGNLNDDWYASPNPPIIKGAMAWCRFEAEMRSGVAHLKLTDGEIIEKRVRAINRGLSAVIEALVHATRYVAIKSDERRKELLERIHYYREIVQKCGSEREKRAFEIIMEKIGEGHHHHHH

Source Source

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	2234
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	819

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2imla1
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.4 — MTH863-like

Domain ID domain_id	d2imla2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imla3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imlb2
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.4 — MTH863-like

Domain ID domain_id	d2imlb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imlb4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imlc2
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.4 — MTH863-like

Domain ID domain_id	d2imlc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imlc4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imld2
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.4 — MTH863-like

Domain ID domain_id	d2imld3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imld4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	2imlA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2imlA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	290 — Hypothetical membrane protein ta0354_69_121.

Domain ID domain_id	2imlB01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2imlB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	290 — Hypothetical membrane protein ta0354_69_121.

Domain ID domain_id	2imlC01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2imlC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	290 — Hypothetical membrane protein ta0354_69_121.

Domain ID domain_id	2imlD01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2imlD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	290 — Hypothetical membrane protein ta0354_69_121.

▶

Unit-cell length a length_a	48.042 Å
Unit-cell length b length_b	103.182 Å
Unit-cell length c length_c	103.842 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.01 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1702
R_work r_work	0.1688
R_free r_free	0.1968
