SAXSdb — 2imo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Allantoate amidohydrolase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALLC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–413； UniProt 2–411 Author chain B； PDBConstruct 4–413； UniProt 2–411

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2imo
Deposition date deposition_date	2006-10-04
Structure title title	Crystal structure of allantoate amidohydrolase from Escherichia coli at pH 4.6
Keywords keywords	;allantoate amidohydrolase, apoenzyme, allC, T1507, Structural Genomics, PSI-2, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2imo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2imo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

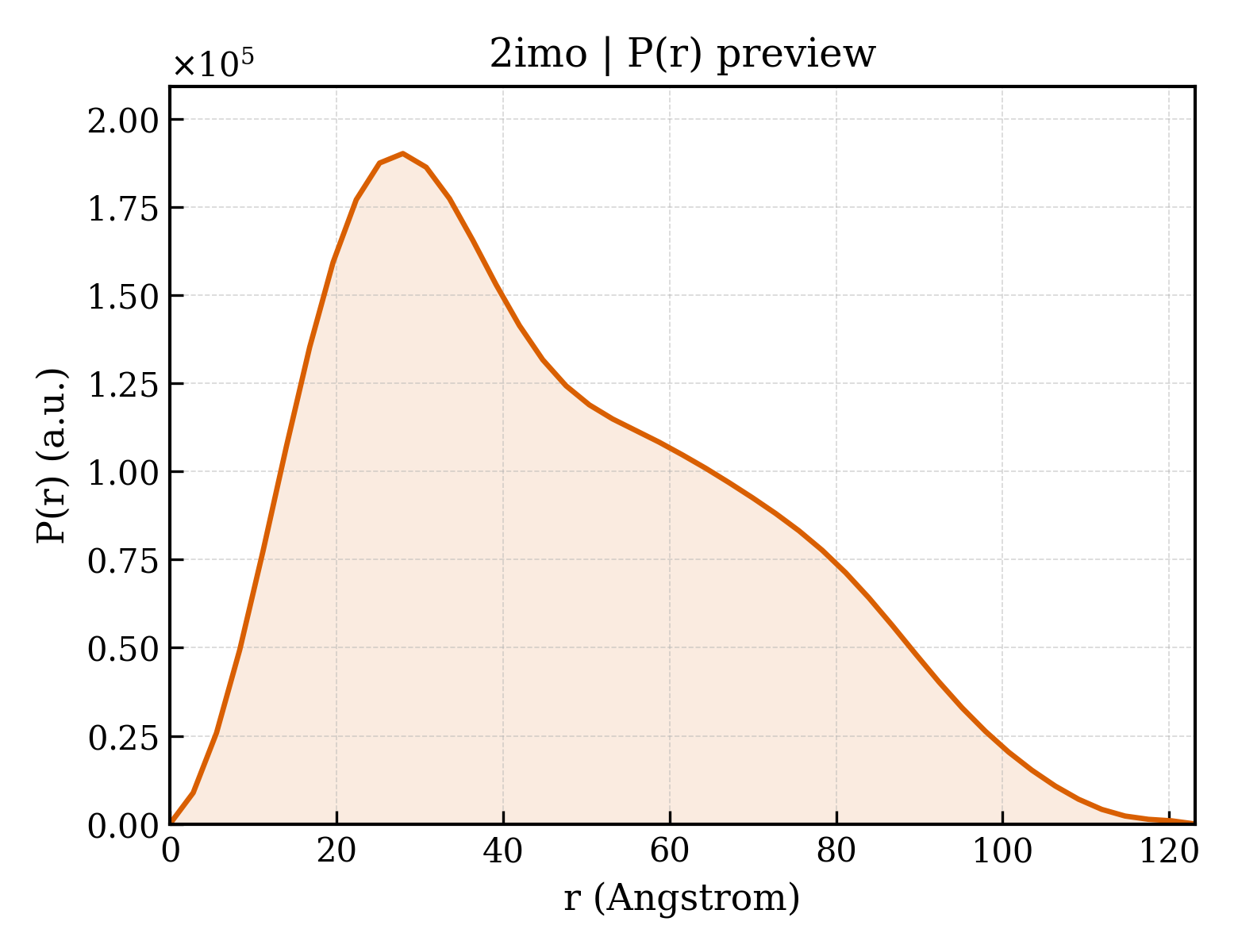

2imo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.16 Å
Rg (electron density)	36.98 Å
Total Rg	36.95 Å
Atom count	6208
Residues	767
Excluded volume	110500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2imo__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Allantoate amidohydrolase
Molecular weight formula_weight	47756.7 kDa
EC 编号 ec_number	3.5.3.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6265

MSLITHFRQAIEETLPWLSSFGADPAGGMTRLLYSPEWLETQQQFKKRMAASGLETRFDEVGNLYGRLNGTEYPQEVVLSGSHIDTVVNGGNLDGQFGALAAWLAIDWLKTQYGAPLRTVEVVAMAEEEGSRFPYVFWGSKNIFGLANPDDVRNICDAKGNSFVDAMKACGFTLPNAPLTPRQDIKAFVELHIEQGCVLESNGQSIGVVNAIVGQRRYTVTLNGESNHAGTTPMGYRRDTVYAFSRICHQSVEKAKRMGDPLVLTFGKVEPRPNTVNVVPGKTTFTIDCRHTDAAVLRDFTQQLENDMRAICDEMDIGIDIDLWMDEEPVPMNKELVATLTELCEREKLNYRVMHSGAGHDAQIFAPRVPTCMIFIPSINGISHNPAERTNITDLAEGVKTLALMLYQLAWQKEGGSHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	57

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2imoa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
Family Family family	c.56.5.4 — Bacterial dinuclear zinc exopeptidases

Domain ID domain_id	d2imoa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.19 — Bacterial exopeptidase dimerisation domain
Family Family family	d.58.19.1 — Bacterial exopeptidase dimerisation domain

Domain ID domain_id	d2imoa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2imob1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
Family Family family	c.56.5.4 — Bacterial dinuclear zinc exopeptidases

Domain ID domain_id	d2imob2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.19 — Bacterial exopeptidase dimerisation domain
Family Family family	d.58.19.1 — Bacterial exopeptidase dimerisation domain

Domain ID domain_id	d2imob3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2imoA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	10 — Zn peptidases

Domain ID domain_id	2imoA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	360 —

Domain ID domain_id	2imoB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	10 — Zn peptidases

Domain ID domain_id	2imoB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	360 —

▶

Unit-cell length a length_a	94.747 Å
Unit-cell length b length_b	183.923 Å
Unit-cell length c length_c	48.777 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	48.780 Å
R factor r_factor	0.2450
R_work r_work	0.2450
R_free r_free	0.3020
