SAXSdb — 2inu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Inulin fructotransferase

Bacillus sp. snu-7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	PHOSPHONATE × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q3SAG3_9BACI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–410； UniProt 41–450 Author chain B； PDBConstruct 1–410； UniProt 41–450 Author chain C； PDBConstruct 1–410； UniProt 41–450

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2inu
Deposition date deposition_date	2006-10-09
Structure title title	Crystal structure of Inulin fructotransferase in the absence of substrate
Keywords keywords	right-handed parallel beta-helix, Lyase; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2inu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

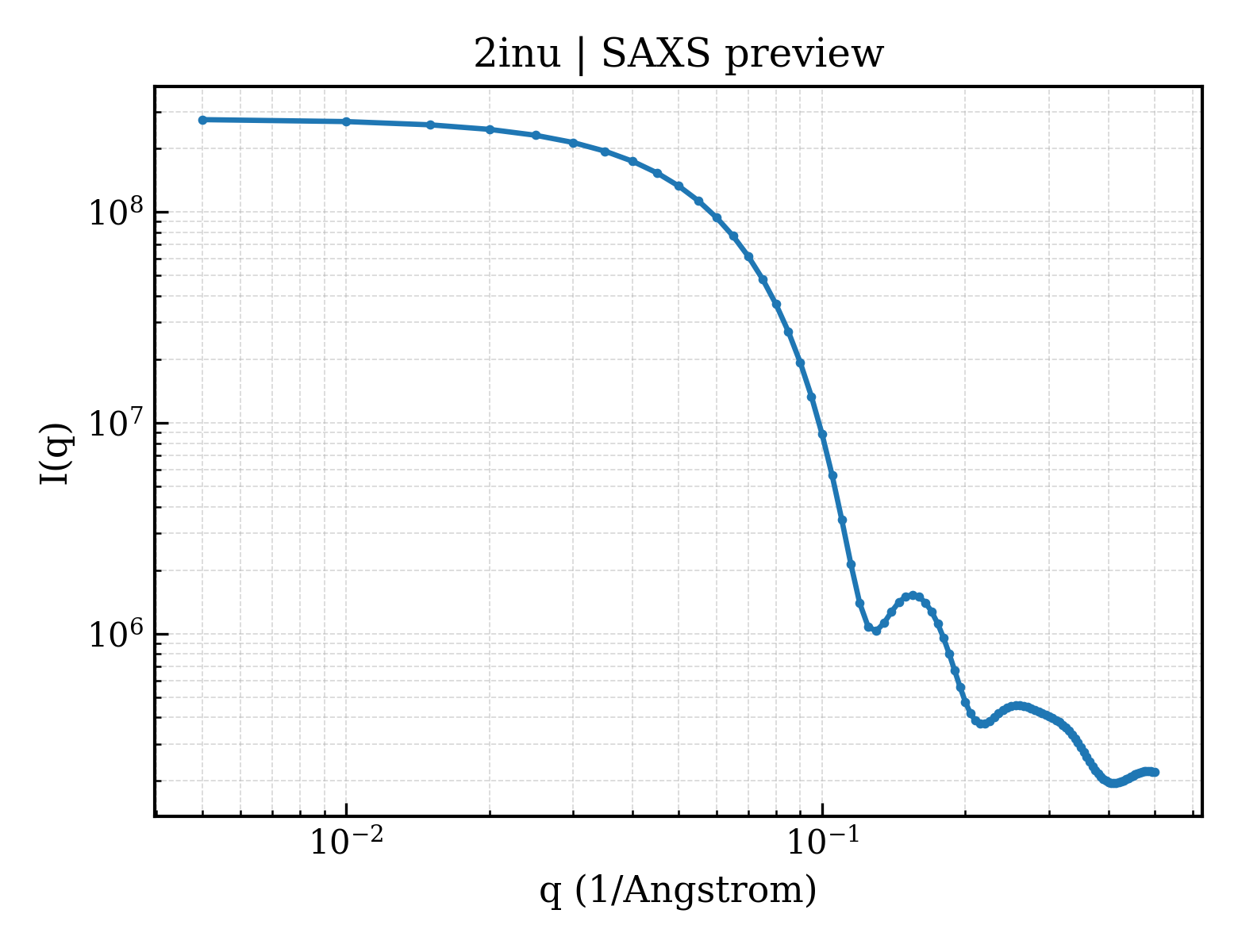

2inu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2inu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.25 Å
Rg (electron density)	28.27 Å
Total Rg	28.91 Å
Atom count	8954
Residues	1185
Excluded volume	157420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2inu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Inulin fructotransferase
Molecular weight formula_weight	43596.9 kDa
EC 编号 ec_number	4.2.2.18
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	9530

ADGQQGAPLNSPNTYDVTTWRIKAHPEVTAQSDIGAVINDIIADIKQRQTSPDARPGAAIIIPPGDYDLHTQVVVDVSYLTIAGFGHGFFSRSILDNSNPTGWQNLQPGASHIRVLTSPSAPQAFLVKRAGDPRLSGIVFRDFCLDGVGFTPGKNSYHNGKTGIEVASDNDSFHITGMGFVYLEHALIVRGADALRVNDNMIAECGNCVELTGAGQATIVSGNHMGAGPDGVTLLAENHEGLLVTGNNLFPRGRSLIEFTGCNRCSVTSNRLQGFYPGMLRLLNGCKENLITANHIRRTNEGYPPFIGRGNGLDDLYGVVHIAGDNNLISDNLFAYNVPPANIAPAGAQPTQILIAGGDANVVALNHVVSDVASQHVVLDASTTHSKVLDSGTASQITSYSSDTAIRPTP

Source Source

Source organism organism	Bacillus sp. snu-7
NCBI taxonomy ID ncbi_taxonomy_id	159251
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHONATE
Molecular weight formula_weight	80.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	576

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2inuA00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	10 — Single-stranded right-handed beta-helix, Pectin lyase-like

Domain ID domain_id	2inuB00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	10 — Single-stranded right-handed beta-helix, Pectin lyase-like

Domain ID domain_id	2inuC00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	10 — Single-stranded right-handed beta-helix, Pectin lyase-like

▶

Unit-cell length a length_a	159.138 Å
Unit-cell length b length_b	91.907 Å
Unit-cell length c length_c	93.022 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	124.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1980
R_free r_free	0.2260
