2irw

Human 11-beta-Hydroxysteroid Dehydrogenase (HSD1) with NADP and Adamantane Ether Inhibitor

Method: X-RAY DIFFRACTION D_max: 191.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

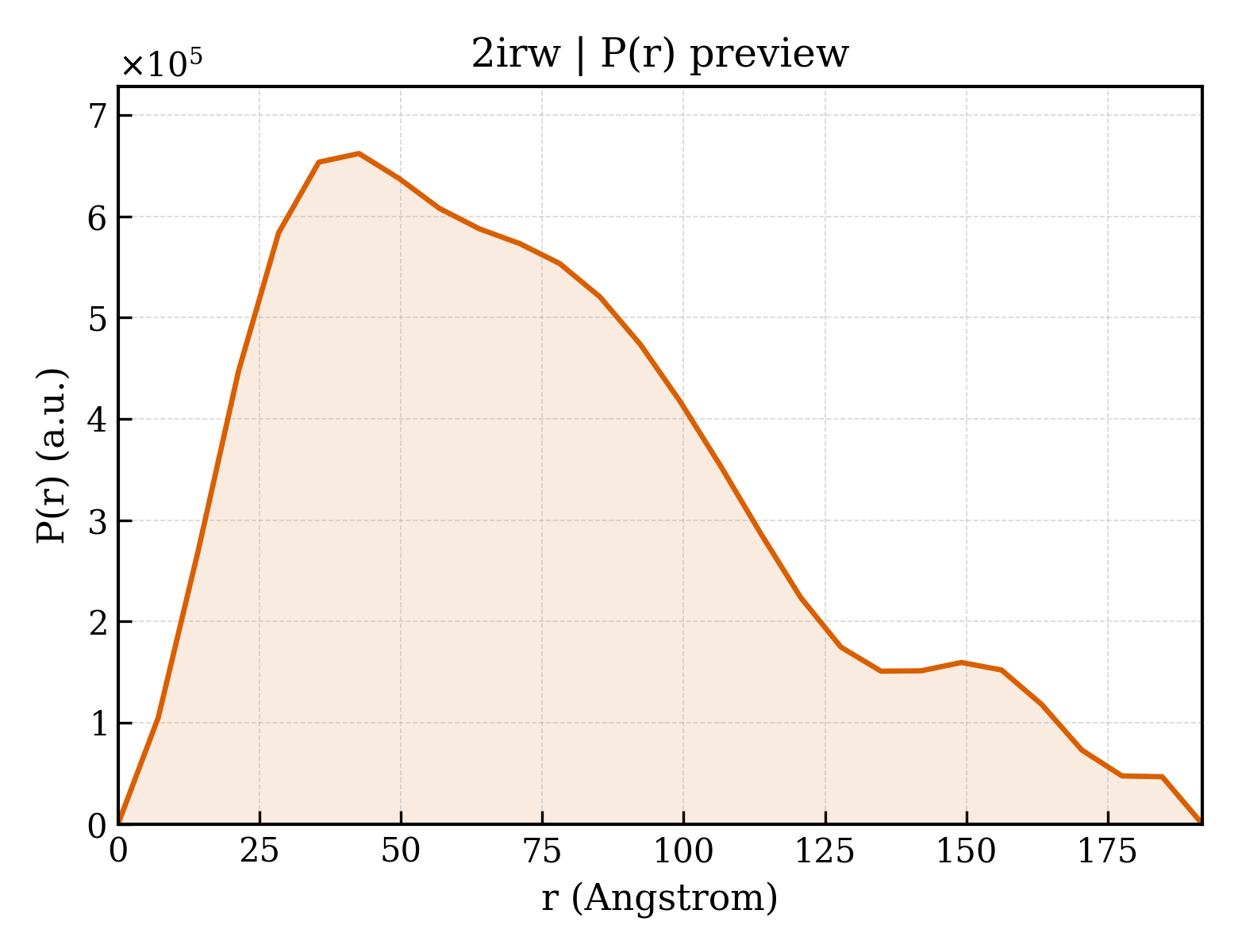

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2irw
沉积日期 deposition_date	2006-10-16
结构标题 title	Human 11-beta-Hydroxysteroid Dehydrogenase (HSD1) with NADP and Adamantane Ether Inhibitor
关键词 keywords	HSD1, NADP, inhibitor, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.71 Å
回转半径 Rg (电子) rg_electron	58.82 Å
零角强度 I(0) i0	805553000.00
分子量 molecular_weight	239140.0 kDa
排除体积 excluded_volume	300790 Å³
包络体积 envelope_volume	410390 Å³
水化壳体积 shell_volume	65463 Å³
包络直径 envelope_diameter	206.8 Å
壳层 Rg shell_rg	50.07 Å
包络 Rg envelope_rg	58.42 Å
形状 Rg shape_rg	58.81 Å
总 Rg total_rg	58.56 Å
总原子数 total_atoms	16728
残基数 n_residues	2098
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	191.7 Å
Rg (实空间) rg_real	58.64 Å
Rg 误差 (实空间) rg_real_error	2.01 Å
I(0) (实空间) i0_real	8.0550e+08
I(0) 误差 (实空间) i0_real_error	1.6730e+07
Rg (倒空间) rg_reciprocal	56.92 Å
I(0) (倒空间) i0_reciprocal	803400000.0000
解质量估计 total_estimate	0.7473
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	42.6 Å
偏度 Skewness skewness	0.635
峰度 Kurtosis kurtosis	-0.228
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	26880000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.705; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.570; Smooth: 0.026

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Corticosteroid 11-beta-dehydrogenase isozyme 1
分子量 formula_weight	29040.8 kDa
EC 编号 ec_number	1.1.1.146
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	16728

EFRPEMLQGKKVIVTGASKGIGREMAYHLAKMGAHVVVTARSKETLQKVVSHCLELGAASAHYIAGTMEDMTFAEQFVAQAGKLMGGLDMLILNHITNTSLNLFHDDIHHVRKSMEVNFLSYVVLTVAALPMLKQSNGSIVVVSSLAGKVAYPMVAAYSASKFALDGFFSSIRKEYSVSRVNVSITLCVLGLIDTETAMKAVSGIVHMQAAPKEECALEIIKGGALRQEEVYYDSSLWTTLLIRNPSRKILEFLYSTSYNMDRF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606

Entity 2 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	(1S,3R,4S,5S,7S)-4-{[2-(4-METHOXYPHENOXY)-2-METHYLPROPANOYL]AMINO}ADAMANTANE-1-CARBOXAMIDE
分子量 formula_weight	386.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2irwa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwe_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwf_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwg_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

结构域编号 domain_id	d2irwh_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

CATH v4.4 (8 domains)

结构域编号 domain_id	2irwA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2irwH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	184.537 Å
晶胞边长 b length_b	184.537 Å
晶胞边长 c length_c	558.052 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	144

空间群 space_group	H 3 2
空间群编号 int_tables_number	155
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	182.570 Å
R 因子 r_factor	0.2390
R_work r_work	0.2370
R_free r_free	0.2780
