SAXSdb — 2isi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-(apurinic or apyrimidinic site) lyase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 MAGNESIUM ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 MAGNESIUM ION × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APEX1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–317； UniProt 1–317 Author chain B； PDBConstruct 1–317； UniProt 1–317 Author chain C； PDBConstruct 1–317； UniProt 1–317

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2isi
Deposition date deposition_date	2006-10-17
Structure title title	Crystal structure of Ape1 from Homo sapiens in a new crystal form complexed with a ligand
Keywords keywords	ape1, magnesium, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2isi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2isi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

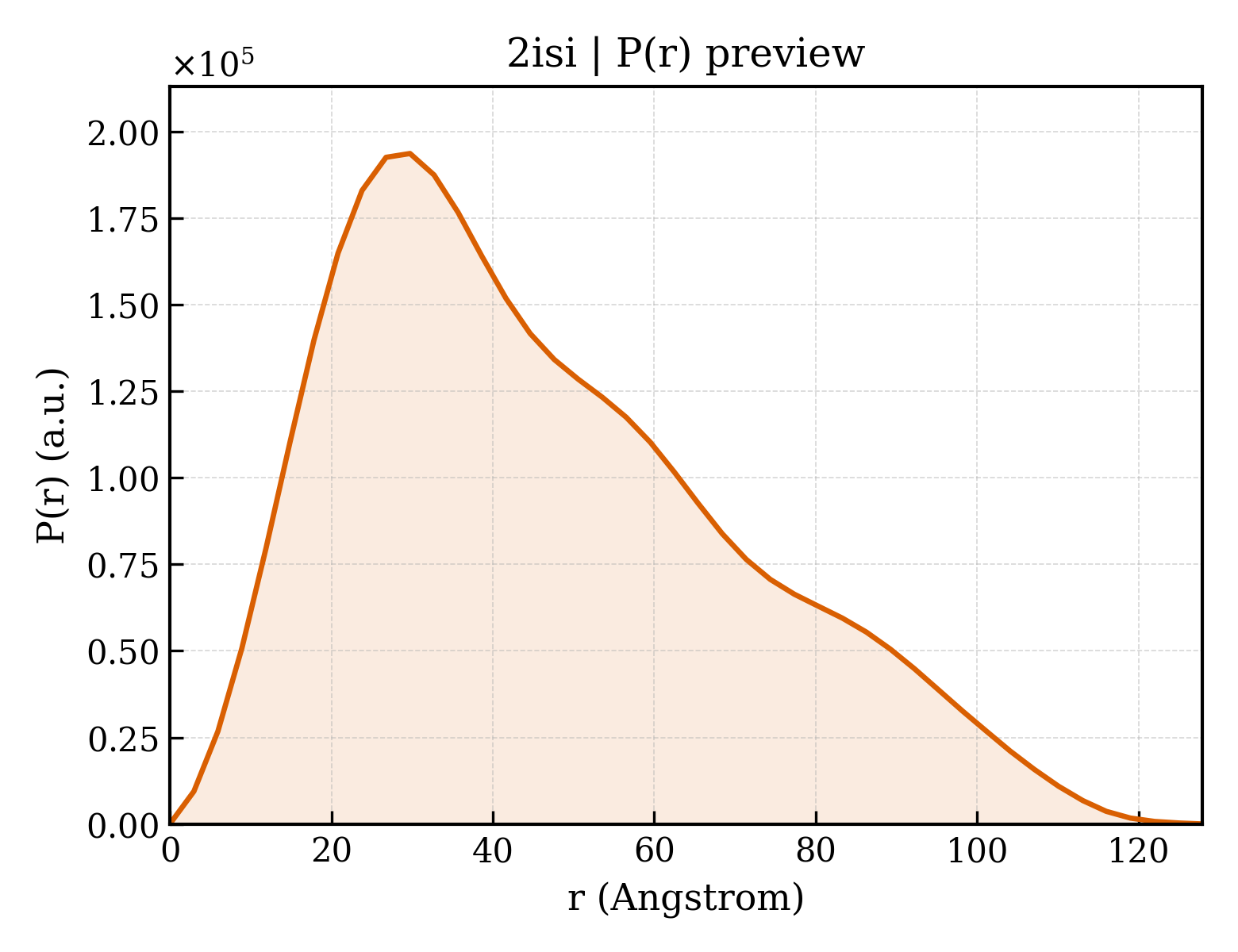

2isi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.62 Å
Rg (electron density)	17.42 Å
Total Rg	18.56 Å
Atom count	2204
Residues	276
Excluded volume	39200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2isi__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2isi__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2isi__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA-(apurinic or apyrimidinic site) lyase
Molecular weight formula_weight	35475.3 kDa
EC 编号 ec_number	4.2.99.18
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6610

PKRGKKGAVAEDGDELRTEPEAKKSKTAAKKNDKEAAGEGPALYEDPPDQKTSPSGKPATLKICSWNVDGLRAWIKKKGLDWVKEEAPDILCLQETKCSENKLPAELQELPGLSHQYWSAPSDKEGYSGVGLLSRQCPLKVSYGIGDEEHDQEGRVIVAEFDSFVLVTAYVPNAGRGLVRLEYRQRWDEAFRKFLKGLASRKPLVLCGDLNVAHEEIDLRNPKGNKKNAGFTPQERQGFGELLQAVPLADSFRHLYPNTPYAYTFWTYMMNARSKNVGWRLDYFLLSHSLLPALCDSKIRSKALGSDHCPITLYLAL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2isia_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.151 — DNase I-like
Superfamily Superfamily superfamily	d.151.1 — DNase I-like
Family Family family	d.151.1.1 — DNase I-like

Domain ID domain_id	d2isib_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.151 — DNase I-like
Superfamily Superfamily superfamily	d.151.1 — DNase I-like
Family Family family	d.151.1.1 — DNase I-like

Domain ID domain_id	d2isic_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.151 — DNase I-like
Superfamily Superfamily superfamily	d.151.1 — DNase I-like
Family Family family	d.151.1.1 — DNase I-like

CATH v4.4 (3 domains)

Domain ID domain_id	2isiA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	10 — Deoxyribonuclease I; Chain A
Homologous superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

Domain ID domain_id	2isiB00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	10 — Deoxyribonuclease I; Chain A
Homologous superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

Domain ID domain_id	2isiC00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	10 — Deoxyribonuclease I; Chain A
Homologous superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

▶

Unit-cell length a length_a	167.347 Å
Unit-cell length b length_b	92.392 Å
Unit-cell length c length_c	94.006 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	121.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.760 Å
Low-resolution limit resolution_low	32.130 Å
R factor r_factor	—
R_work r_work	0.2280
R_free r_free	0.2840
