SAXSdb — 2ism

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative oxidoreductase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 CHLORIDE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SKS3_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 1–352 Author chain B； PDBConstruct 1–352； UniProt 1–352

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ism
Deposition date deposition_date	2006-10-18
Structure title title	Crystal structure of the putative oxidoreductase (glucose dehydrogenase) (TTHA0570) from thermus theromophilus HB8
Keywords keywords	;BL41XU SPRING-8, bladed beta-propellor, glucose dehydrogenase, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, SUGAR BINDING PROTEIN ;; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ism__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ism__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

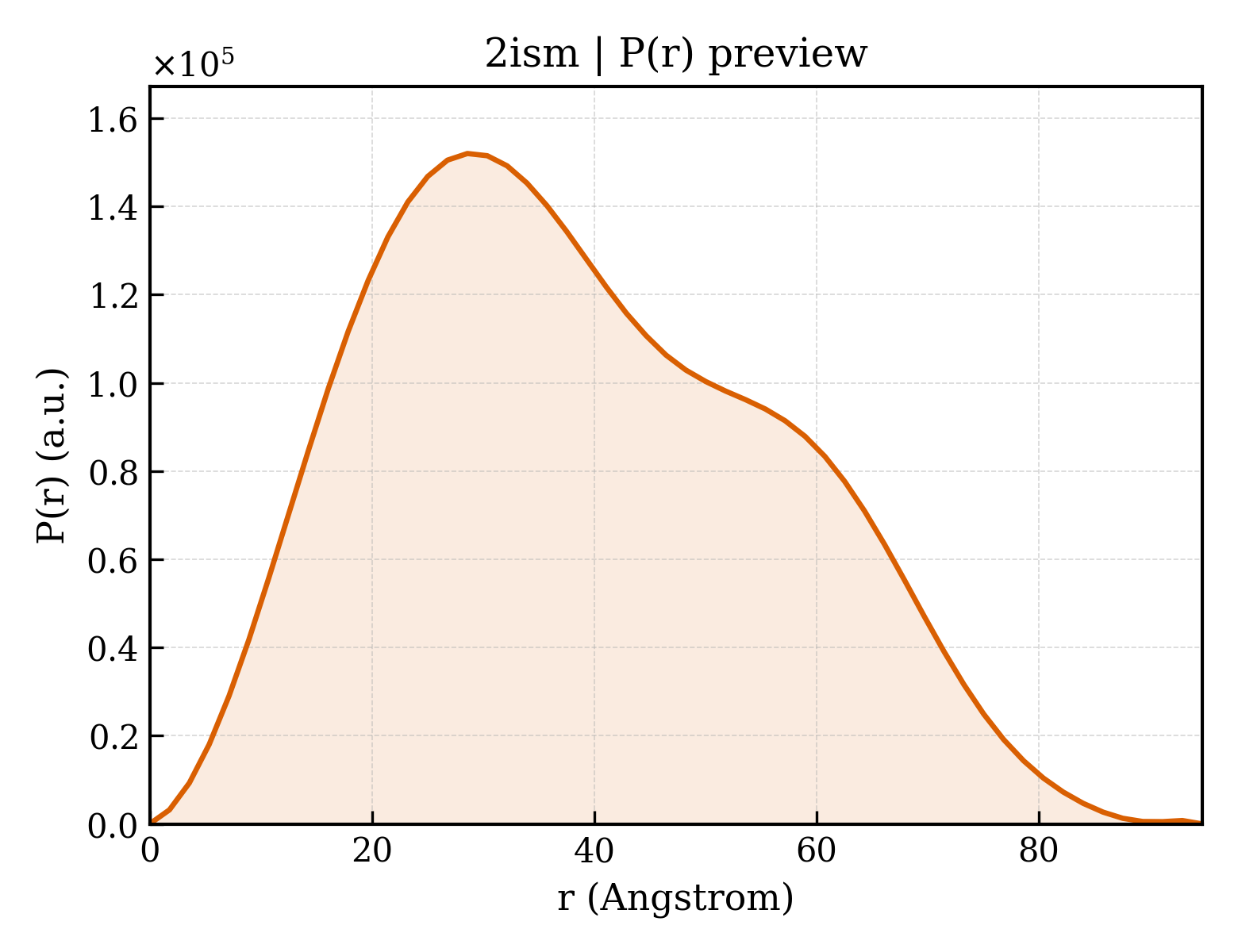

2ism__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.92 Å
Rg (electron density)	28.90 Å
Total Rg	29.60 Å
Atom count	5164
Residues	660
Excluded volume	91071 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ism__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Putative oxidoreductase
Molecular weight formula_weight	38880.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5815

MDRRRFLVGLLGLGLARGQGLRVEEVVGGLEVPWALAFLPDGGMLIAERPGRIRLFREGRLSTYAELSVYHRGESGLLGLALHPRFPQEPYVYAYRTVAEGGLRNQVVRLRHLGERGVLDRVVLDGIPARPHGLHSGGRIAFGPDGMLYVTTGEVYERELAQDLASLGGKILRLTPEGEPAPGNPFLGRRGARPEVYSLGHRNPQGLAWHPKTGELFSSEHGPSGEQGYGHDEVNLIVPGGNYGWPRVVGRGNDPRYRDPLYFWPQGFPPGNLAFFRGDLYVAGLRGQALLRLVLEGERGRWRVLRVETALSGFGRLREVQVGPDGALYVTTSNRDGRGQVRPGDDRVLRLL

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	651

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2ismA00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	30 — TolB, C-terminal domain

Domain ID domain_id	2ismB00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	30 — TolB, C-terminal domain

▶

Unit-cell length a length_a	36.898 Å
Unit-cell length b length_b	132.964 Å
Unit-cell length c length_c	60.780 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.18 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	36.610 Å
R factor r_factor	0.1810
R_work r_work	0.1810
R_free r_free	0.2080
