SAXSdb — 2iua

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UDP-3-O-[3-HYDROXYMYRISTOYL] GLUCOSAMINE N-ACYLTRANSFERASE

CHLAMYDIA TRACHOMATIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SULFATE ION × 8 PALMITIC ACID × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LPXD_CHLTR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–374； UniProt 1–354 Author chain B； PDBConstruct 21–374； UniProt 1–354 Author chain C； PDBConstruct 21–374； UniProt 1–354

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2iua
Deposition date deposition_date	2006-05-30
Structure title title	C. trachomatis LpxD
Keywords keywords	;UDP-3- O-ACYL-GLUCOSAMINE N-ACYLTRANSFERASE, LEFT-HANDED BETA HELIX, ACYLTRANSFERASE, LIPID A BIOSYNTHESIS, ENZYME, HOMOTRIMER, TRANSFERASE, LIPID SYNTHESIS ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2iua__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2iua__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

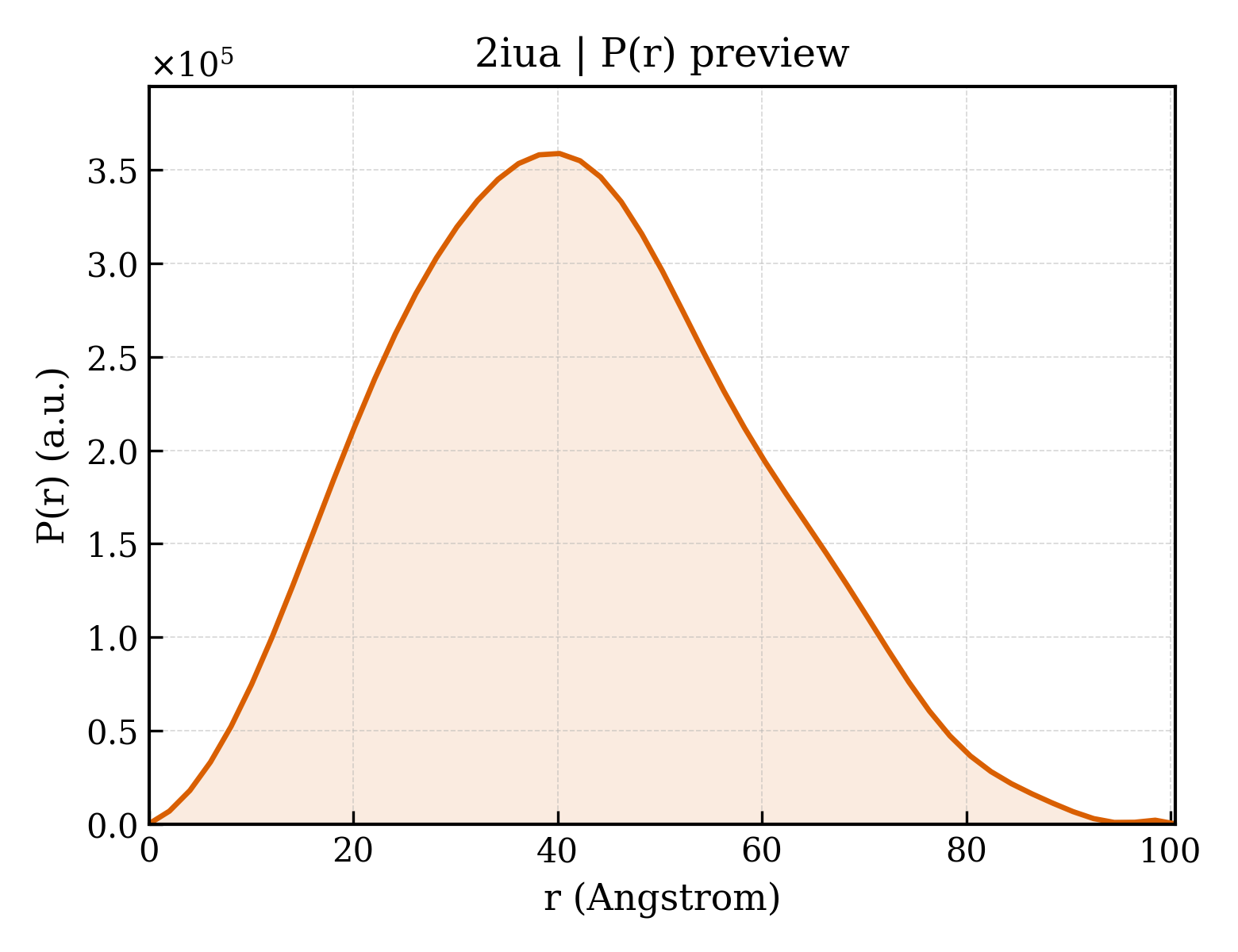

2iua__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.92 Å
Rg (electron density)	31.23 Å
Total Rg	31.81 Å
Atom count	8017
Residues	1037
Excluded volume	143020 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2iua__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	UDP-3-O-[3-HYDROXYMYRISTOYL] GLUCOSAMINE N-ACYLTRANSFERASE
Molecular weight formula_weight	40629.3 kDa
EC 编号 ec_number	2.3.1.-
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	8272

MGSSHHHHHHSSGLVPRGSHMSQSTYSLEQLADFLKVEFQGNGATLLSGVEEIEEAKTAHITFLDNEKYAKHLKSSEAGAIIISRTQFQKYRDLNKNFLITSESPSLVFQKCLELFITPVDSGFPGIHPTAVIHPTAIIEDHVCIEPYAVVCQHAHVGSACHIGSGSVIGAYSTVGEHSYIHPRVVIRERVSIGKRVIIQPGAVIGSCGFGYVTSAFGQHKHLKHLGKVIIEDDVEIGANTTIDRGRFKHSVVREGSKIDNLVQIAHQVEVGQHSMIVAQAGIAGSTKIGNHVIIGGQAGITGHICIADHVIMMAQTGVTKSITSPGIYGGAPARPYQEIHRQVAKVRNLPRLEERIAALEKLVQKLEALSEQH

Source Source

Source organism organism	CHLAMYDIA TRACHOMATIS
NCBI taxonomy ID ncbi_taxonomy_id	813
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	154

▼

6. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

Domain ID domain_id	2iuaA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1390 — Udp-n-acetylmuramoylalanyl-d-glutamate--2,6- Diaminopimelate Ligase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — MurE/MurF, N-terminal domain

Domain ID domain_id	2iuaA02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

Domain ID domain_id	2iuaB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1390 — Udp-n-acetylmuramoylalanyl-d-glutamate--2,6- Diaminopimelate Ligase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — MurE/MurF, N-terminal domain

Domain ID domain_id	2iuaB02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

Domain ID domain_id	2iuaC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1390 — Udp-n-acetylmuramoylalanyl-d-glutamate--2,6- Diaminopimelate Ligase; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — MurE/MurF, N-terminal domain

Domain ID domain_id	2iuaC02
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

Domain ID domain_id	2iuaC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

▶

Unit-cell length a length_a	98.679 Å
Unit-cell length b length_b	98.679 Å
Unit-cell length c length_c	284.505 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	93.250 Å
R factor r_factor	0.2120
R_work r_work	0.2090
R_free r_free	0.2730
