SAXSdb — 2iw0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHITIN DEACETYLASE

COLLETOTRICHUM LINDEMUTHIANUM

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 ACETATE ION × 3 CHLORIDE ION × 1 PHOSPHATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6DWK3_COLLN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–248； UniProt 1–248

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2iw0
Deposition date deposition_date	2006-06-23
Structure title title	Structure of the chitin deacetylase from the fungal pathogen Colletotrichum lindemuthianum
Keywords keywords	HYDROLASE, CHITIN DE-N-ACETYLASE, FAMILY 4 CARBOHYDRATE ESTERASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2iw0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2iw0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

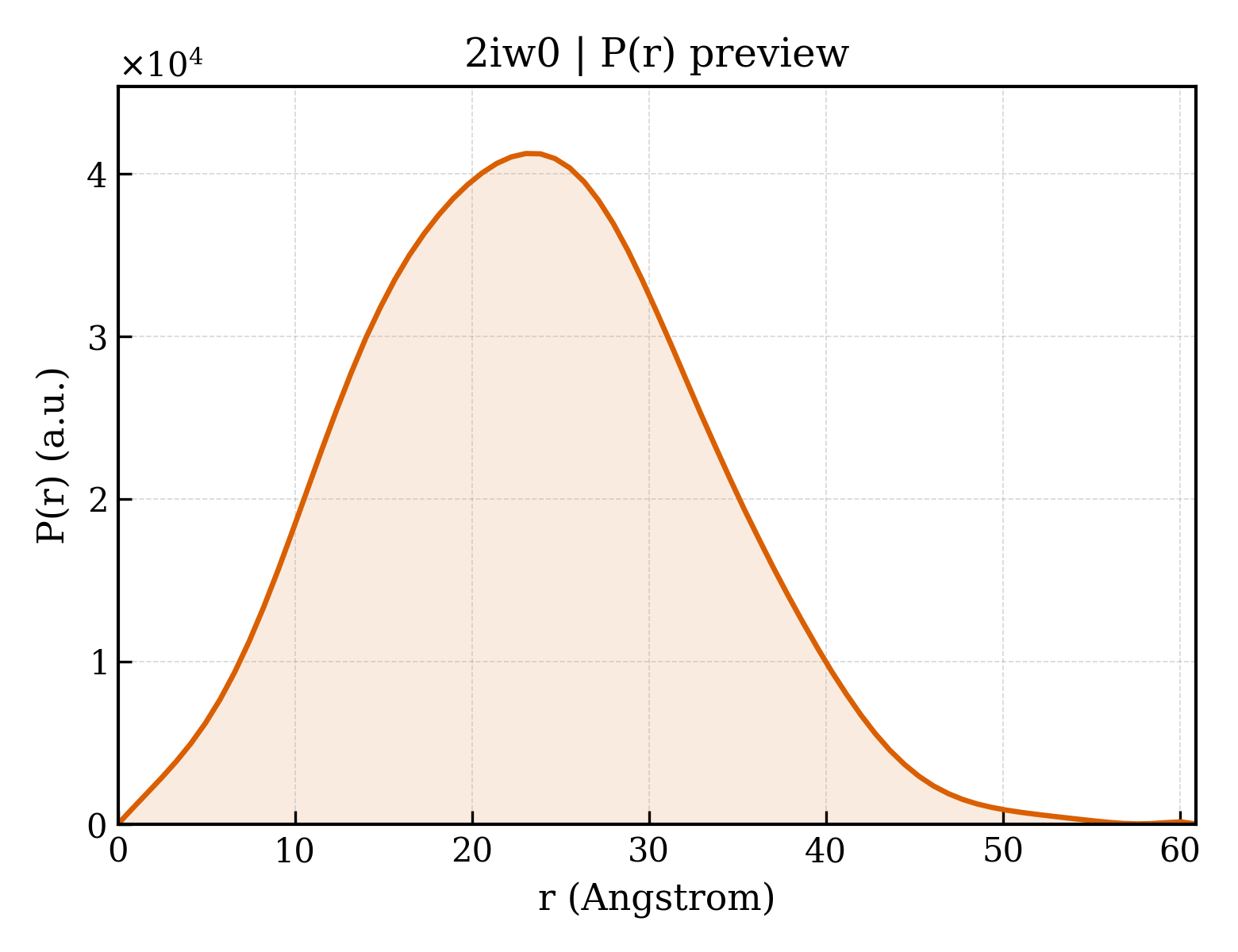

2iw0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.92 Å
Rg (electron density)	16.65 Å
Total Rg	17.55 Å
Atom count	1785
Residues	226
Excluded volume	31142 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2iw0__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	CHITIN DEACETYLASE
Molecular weight formula_weight	27904.0 kDa
EC 编号 ec_number	3.5.1.41
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1960

MHFSTLFGAAATAALAGSTNASPLARRQVPVGTPILQCTQPGLVALTYDDGPFTFTPQLLDILKQNDVRATFFVNGNNWANIEAGSNPDTIRRMRADGHLVGSHTYAHPDLNTLSSADRISQMRQLEEATRRIDGFAPKYMRAPYLSCDAGCQGDLGGLGYHIIDTNLDTKDYENNKPETTHLSAEKFNNELSADVGANSYIVLSHDVHEQTVVSLTQKLIDTLKSKGYRAVTVGECLGDAPENWYKAHHHHHH

Source Source

Source organism organism	COLLETOTRICHUM LINDEMUTHIANUM
Common name common_name	GLOMERELLA LINDEMUTHIANA
NCBI taxonomy ID ncbi_taxonomy_id	290576
Host organism host_organism	PICHIA PASTORIS

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2iw0a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.6 — 7-stranded beta/alpha barrel
Superfamily Superfamily superfamily	c.6.2 — Glycoside hydrolase/deacetylase
Family Family family	c.6.2.3 — NodB-like polysaccharide deacetylase

Domain ID domain_id	d2iw0a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2iw0A01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	370 — Glycoside hydrolase/deacetylase

▶

Unit-cell length a length_a	71.275 Å
Unit-cell length b length_b	55.022 Å
Unit-cell length c length_c	60.057 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.810 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1740
R_work r_work	0.1720
R_free r_free	0.2150
